Pro-RF_HighRes_16-60
Pro-RF_HighRes_70-150

Pro-RF HighRes

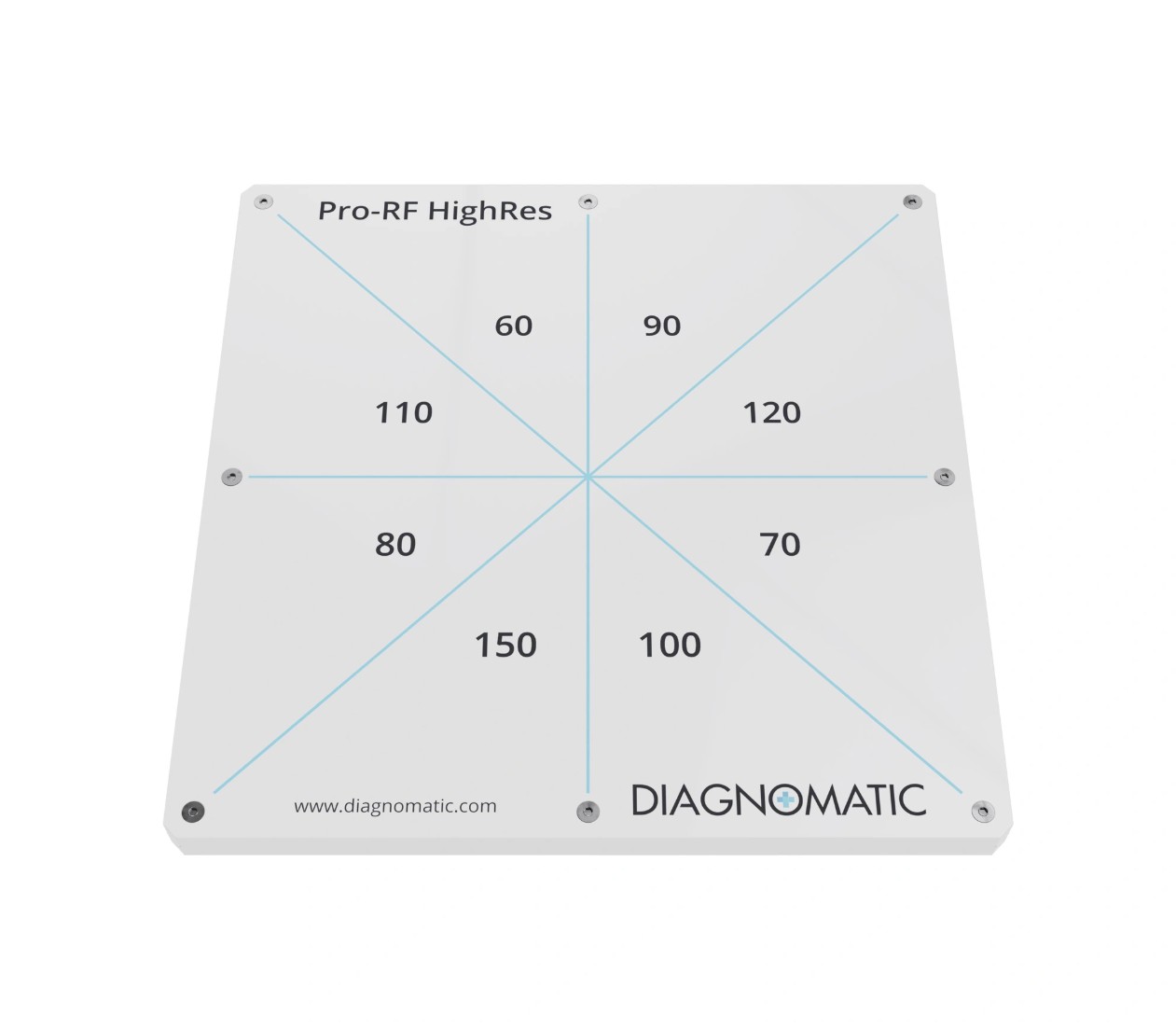

The test phantom for evaluation of high contrast resolution of fluoroscopy system in one exposition. It consists of eight patterns of wire mesh in a pie shape.

Brand

Model

Pro-RF HighRes
Code

PRO02-111 – 60-150 version, PRO02-112 – 16-60 version
Add to Quote
Categories: , ,

The test phantom for evaluation of high contrast resolution of fluoroscopy system in one exposition. It consists of eight patterns of wire mesh in a pie shape.

Features

Complies with:

  • IEC 61223-3-1



  • CE marked
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Dimensions: 180 x 180 x 10 mm
  • Cover made of PMMA
  • Two standard configurations of high contrast wire mesh patterns:
    • for standard systems: 16, 20, 24, 30, 35, 40, 50, 60
    • for higher resolution systems: 60, 70, 80, 90, 100, 110, 120, 150
