Pro-RF Basic Tool (Radiographic)

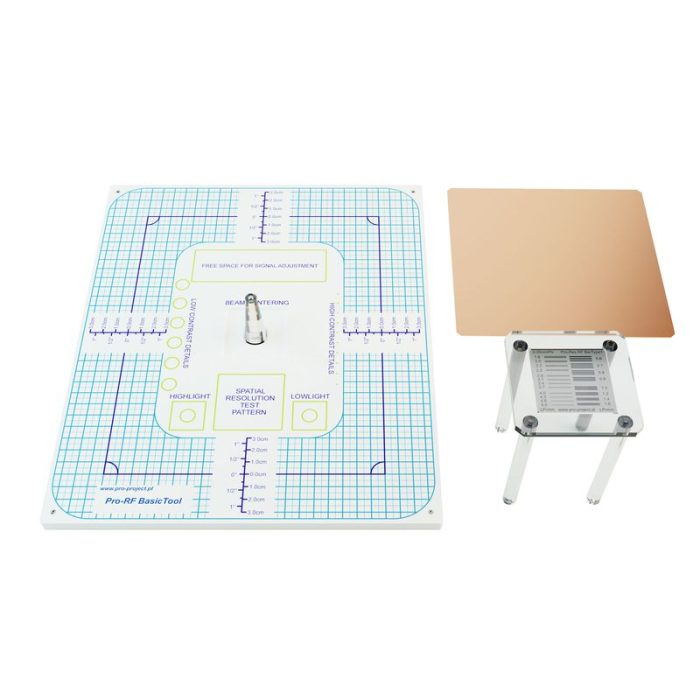

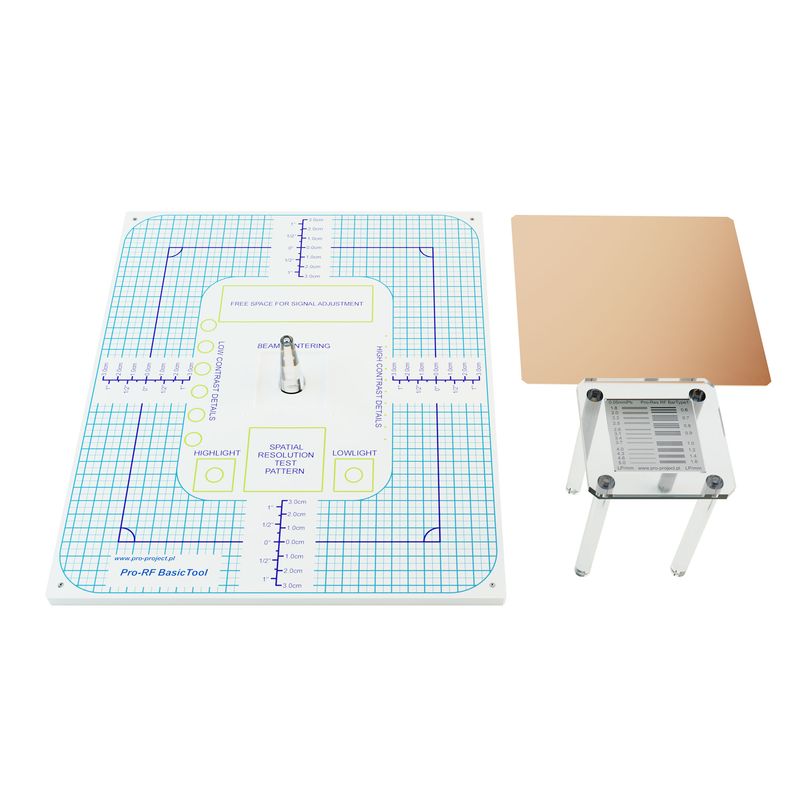

The Pro-RF BacisTool phantom is a compact general radiography image quality testing phantom.

Brand

Model

Pro-RF Basic Tool

Code

PRO02-502

Add to Quote

The Pro-RF BacisTool phantom is a compact general radiography image quality testing phantom.

‍It can be used to do the following tests:

  • Dynamic range
  • Geometric distortion
  • Spatial resolution
  • Contrast resolution
  • Beam centring
  • Focal spot size
  • Noise/uniformity
  • Artefacts
  • X-ray to light field congruence

Features

Complies with:

  • IEC 61223-3-1
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Outside dimensions: 345 x 290 mm
  • High contrast array of 5 and 10 mm uniformly pitched mesh
  • Highlight and Lowlight details
  • 0.6 to 5.0 LP/mm resolution pattern
  • 7x 11.0 mm diameter low contrast details
  • 11x 0.5 mm diameter high contrast details
  • Extra stand for the spatial resolution pattern for focal spot size evaluation
  • Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
  • An area of uniform attenuation suitable for noise measurements
  • 1 mm Cu filter

Measurements

Outside Dimensions: 345 x 290 mm

  • 7x 11.0 mm diameter low contrast details
  • 11x 0.5 mm diameter high contrast details
