Flood Sources

Co-57 flood sources are intended to produce uniform radiation fıeld across the camera’s usable field of view with the method’s of NEMA NU-1-2007 to evaluate the gamma camera uniformity.

Brand

Add to Quote
Categories: , , ,

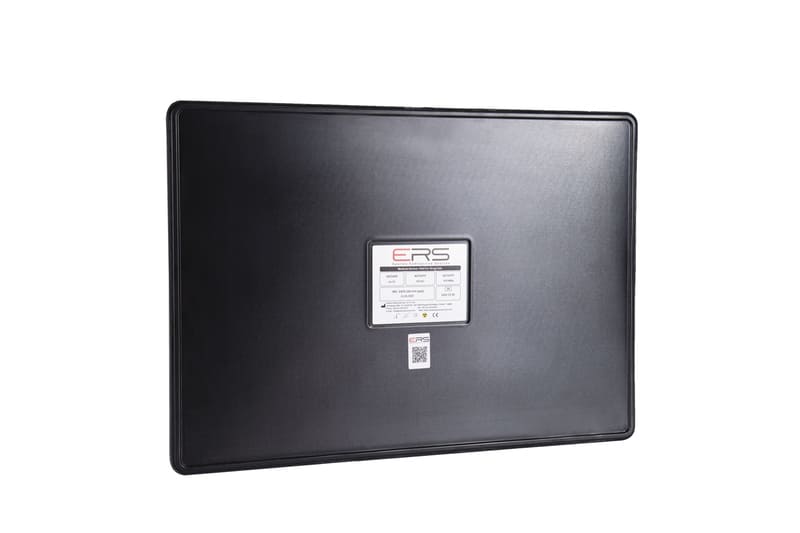

Co-57 flood sources

  • Co-57 flood sources are intended to produce uniform radiation fıeld across the camera’s usable field of view with the method’s of NEMA NU-1-2007 to evaluate the gamma camera uniformity.

Uniformity

  • ERS lighter flood sources are manufactured according to following specifications in accordance with ANSI 42.27.
  • CV ≤ 0,9% INU ≤ 3,6 %

Features

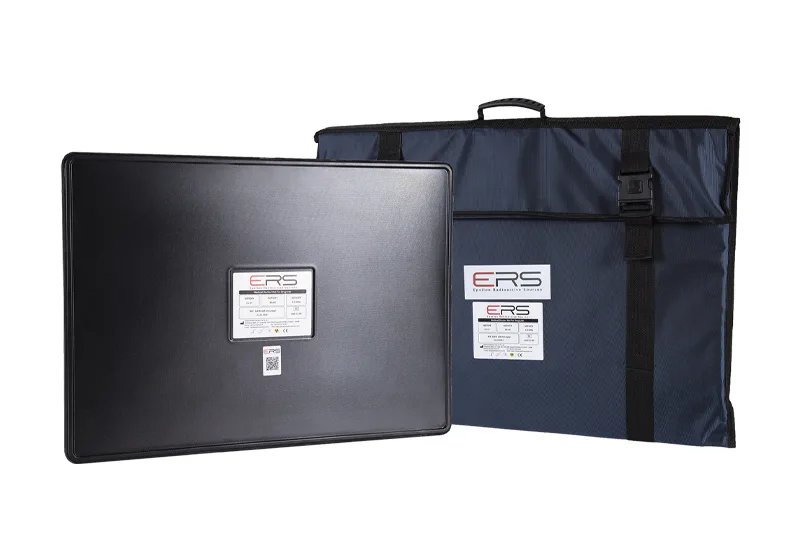

Lead Shielding and Carrying Case

  • ERS offers lead shielding and carrying case accessories to provide high-level radiation protection during Co-57 flood source transportation.
  • Unless otherwise indicated, flood source orders come with the lead shielded carrying case as a standard accessory.

Specifications

Product
Code		 Product
Type		 Isotope Activity Overall
Dimensions		 Active Area
Dimensions
SI NON SI cm inches cm inches
DZM6261 Square Co-57 740 MBq 20 mCi 27 x 29 11.1″ x 11.1″ 25.4 x 25.4 10″ x 10″
DZM6262-5M Rectangular Co-57 185 MBq 5 mCi 62.4 x 43 24.56″x 16.92″ 61.7 x 42.3 24.29″ x 16.65″
DZM6262-10M Rectangular Co-57 370 MBq 10 mCi 62.4 x 43 24.56″x 16.92″ 61.7 x 42.3 24.29″ x 16.65″
DZM6262-15M Rectangular Co-57 555 MBq 15 mCi 62.4 x 43 24.56″x 16.92″ 61.7 x 42.3 24.29″ x 16.65″
DZM6262-20M Rectangular Co-57 740 MBq 20 mCi 62.4 x 43 24.56″x 16.92″ 61.7 x 42.3 24.29″ x 16.65″
