Pro-RF Ruler (Concentric Radioopaque Rulers)

The radiopaque ruler in the image provides a permanent reference of image size. It can be used to check the accuracy and position of the light field for quality control and adjustment as well as be included during x-ray procedures, leaving a clear measurement right on the x-ray image itself.

Brand

Model

Pro-RF Ruler

Code

PRO02-60X

The radiopaque ruler in the image provides a permanent reference of image size. It can be used to check the accuracy and position of the light field for quality control and adjustment as well as be included during x-ray procedures, leaving a clear measurement right on the x-ray image itself.

Please contact us to find the best solution for you.

Technical Data

‍Technical Data (can be modified to customer specifications):
We manufacture many sizes and types of radiopaque rulers for many applications, with different scales and accuracy.

  • PRO02-601 – PMMA ruler with the radiopaque scale – 50 cm / 2 mm scale
  • PRO02-602 – PMMA ruler with the radiopaque scale – 50 cm / 1 mm scale
  • PRO02-603 – aluminium ruler with the radiopaque scale – 50 cm / 2 mm scale
  • PRO02-604 – aluminium ruler with the radiopaque scale – 50 cm / 1 mm scale

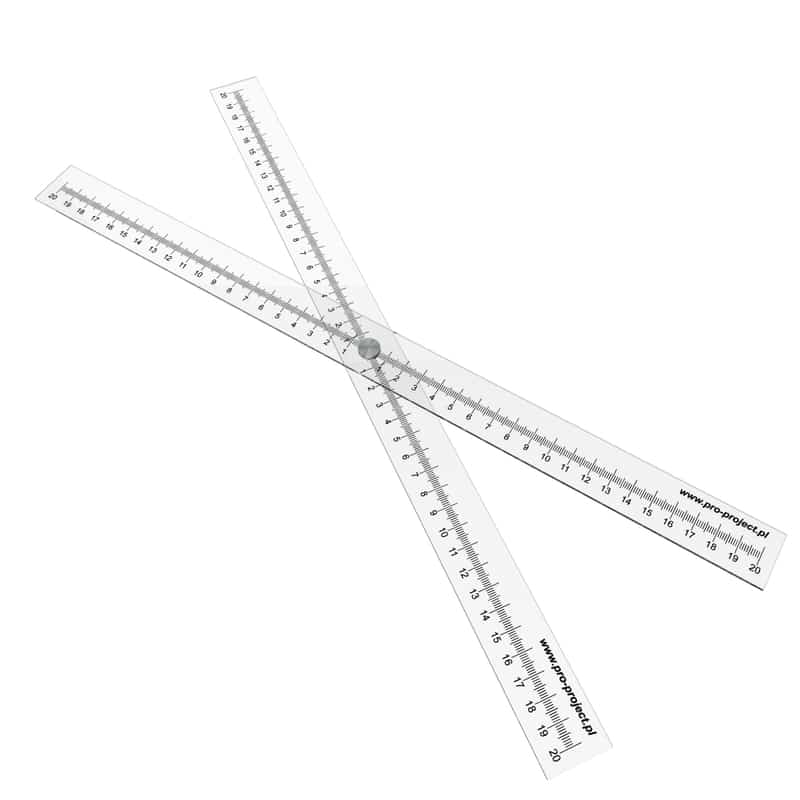

  • PRO02-605 – two PMMA rulers with the radiopaque scale joined in the middle (cross)- 40 cm each / 1 mm scale

Measurements

  • 50 cm / 2 mm scale
  • 50 cm / 1 mm scale
  • 50 cm / 2 mm scale
  • 50 cm / 1 mm scale
  • 40 cm each / 1 mm scale

Options

PRO02-601 – PMMA ruler with the radiopaque scale – 50 cm / 2 mm scale
PRO02-602 – PMMA ruler with the radiopaque scale – 50 cm / 1 mm scale
PRO02-603 – aluminium ruler with the radiopaque scale – 50 cm / 2 mm scale
PRO02-604 – aluminium ruler with the radiopaque scale – 50 cm / 1 mm scale
PRO02-605 – two PMMA rulers with the radiopaque scale joined in the middle (cross)- 40 cm each / 1 mm scale
