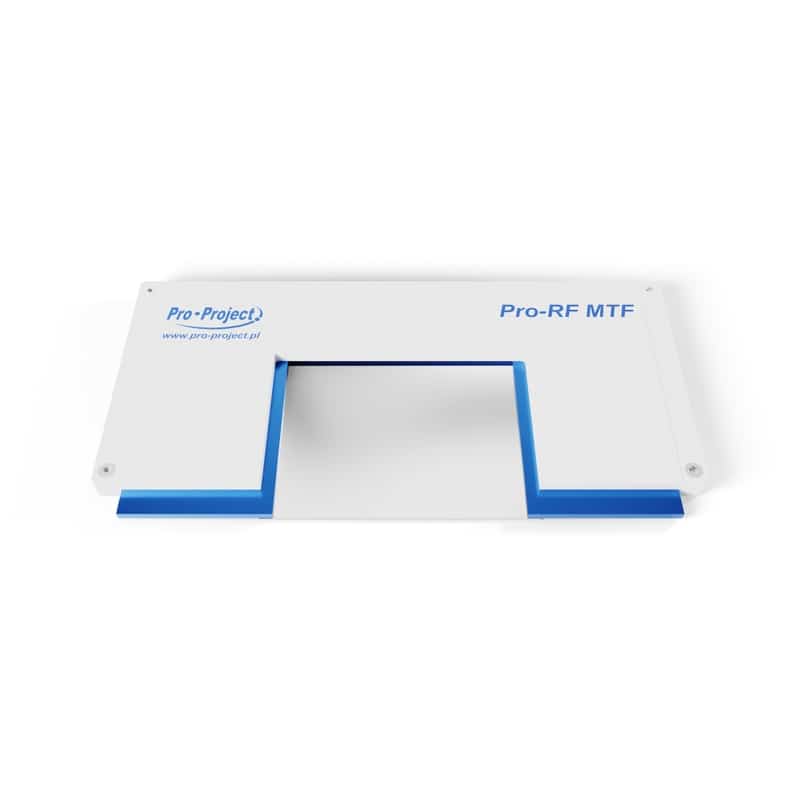

Pro-RF MTF (Radiographic MTF Testing)

Pro-RF MTF (Radiographic MTF Testing)

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function that consists of a tungsten plate fixed on a lead plate.

Brand

Model

Pro-RF MTF
Code

PRO02-107
Categories: , ,

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function that consists of a tungsten plate fixed on a lead plate.

Features

Complies with:

  • IEC 62220-1
  • DIN EN 62220-1
  • IEC 62220-1-1:2015
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Overall dimensions: 220 x 110 x 13 mm
  • Tungsten plate dimensions: 100 x 80 x 1 mm
  • Lead plate dimensions: 200 x 100 x 3 mm
  • Tungsten edge scragginess less than 5 µm
  • PMMA cover

Measurements

Overall Dimensions: 220 x 110 x 13 mm
