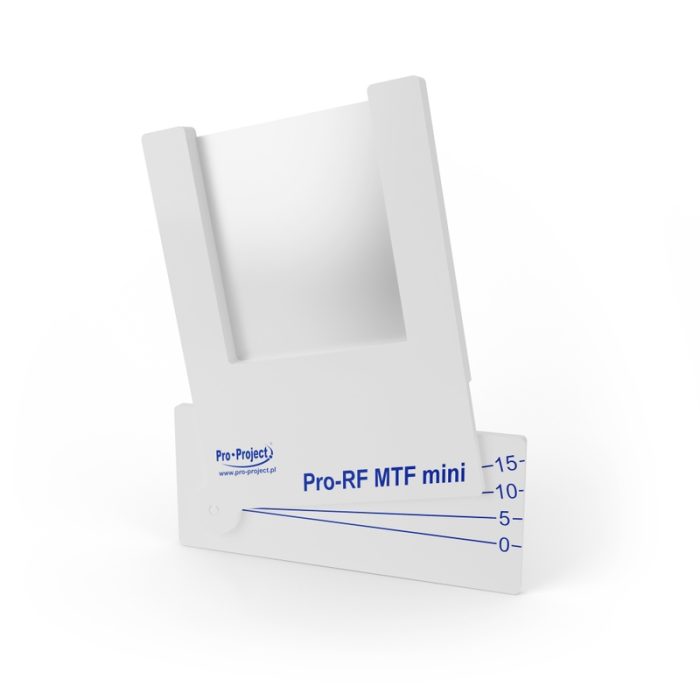

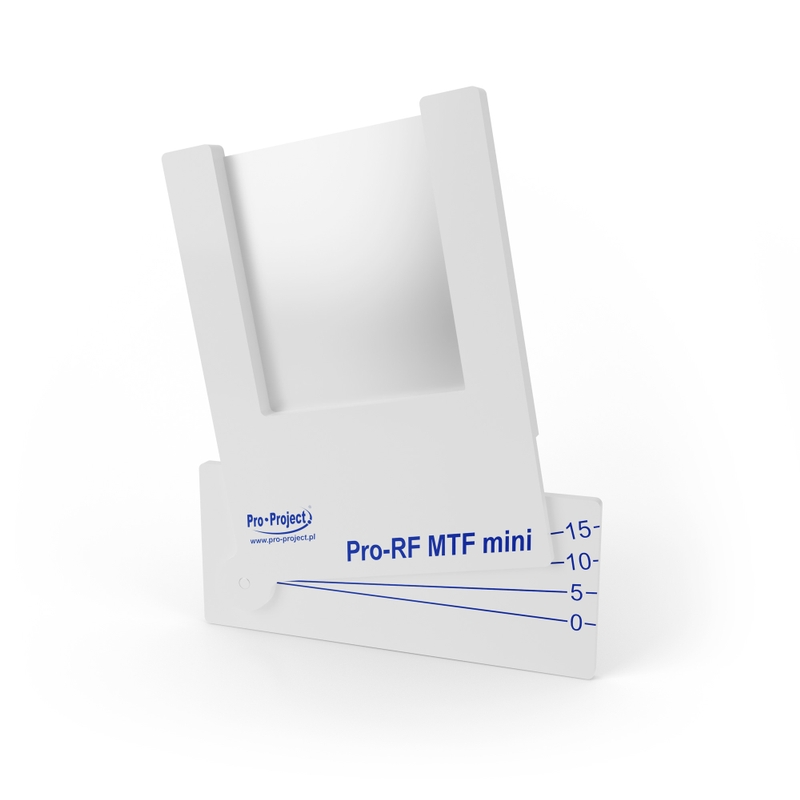

Pro-RF MTF Mini (Radiographic MTF Testing)

The edge test device according to IEC 62220-1 for determination of Modulation Transfer Function.

‍Technical data (can be modified to customer specifications):
overall dimensions: 97 x 96 x 9 mm
tungsten plate dimensions: 50 x 60 x 1 mm
tungsten plate made from high purity tungsten (< 90%)
tungsten edge scragginess less than 5 µm
PCV and PMMA cover
angular alignment aid
‍

Product features:
complies with:
– IEC 62220-1
– DIN EN 62220-1
– IEC 62220-1-1:2015
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
