Pro-RF Al 21M (21mm or 25mm Al Filter)
Pro-RF Al 21M (21mm or 25mm Al Filter) - Image 2

Pro-RF Al 21M (21mm or 25mm Al Filter)

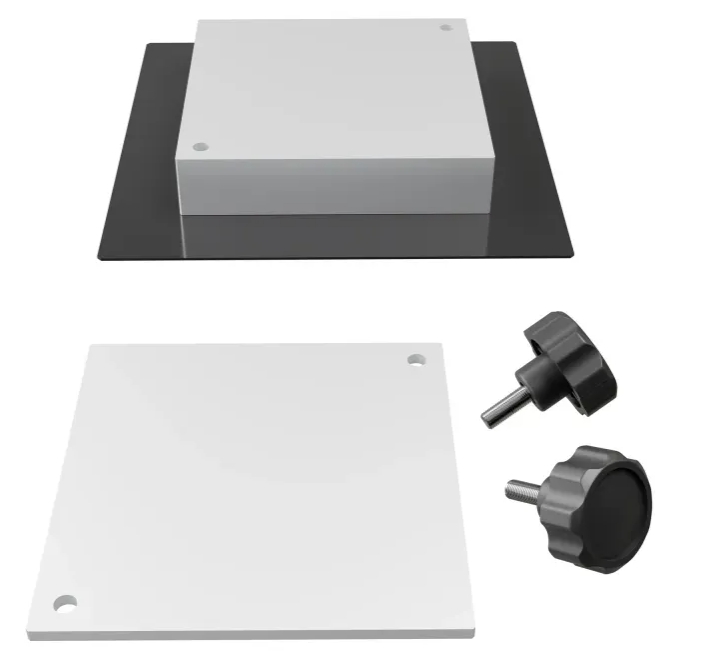

A 2-in-1 solution that allows to get two attenuation thicknesses with one device: 21 mm or 25mm. Includes insertion frame for mounting near the X-Ray tube.

Brand

Model

Pro-RF Al 21M
Code

PRO02-308
Add to Quote
Categories: , ,

A 2-in-1 solution that allows to get two attenuation thicknesses with one device: 21 mm or 25 mm. Includes insertion frame for mounting near the X-Ray tube.‍



Features

Complies with:

  • IEC 61223-3-1
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

‍Technical Data

‍Technical Data (can be modified to customer specifications):

  • Filter Dimensions: 120 x 120 x 21 mm
  • Additional 4 mm thick aluminium filter
  • Mounting frame
  • Made of the purest aluminium
  • Two mounting screws included

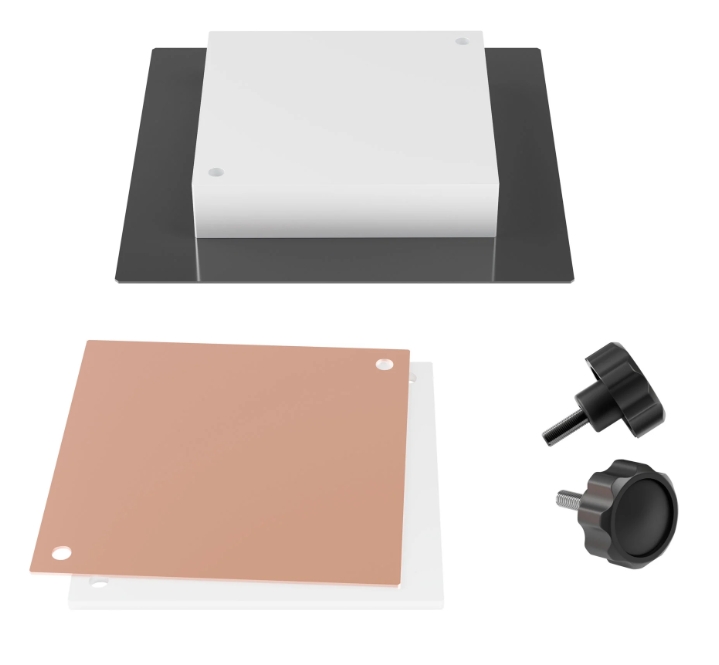

  • Optional 1 mm thick copper filter (that can be attached to the aluminium) for tests at and above 100 kV (Pro-RF Cu 1) (02-304)
  • Other sizes of filters upon request

Measurements

Filter Dimensions: 120 x 120 x 21 mm
