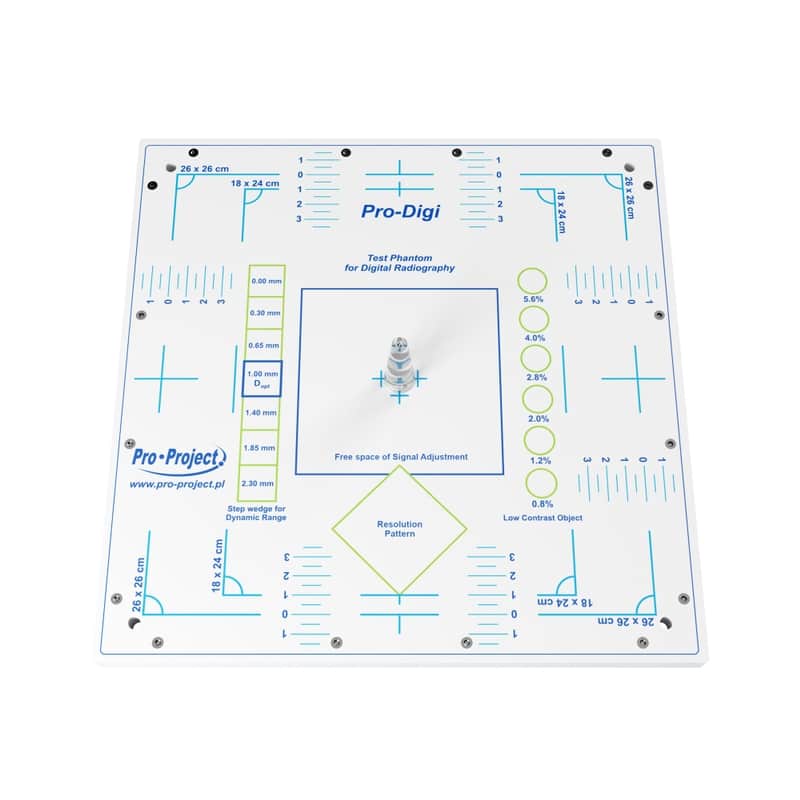

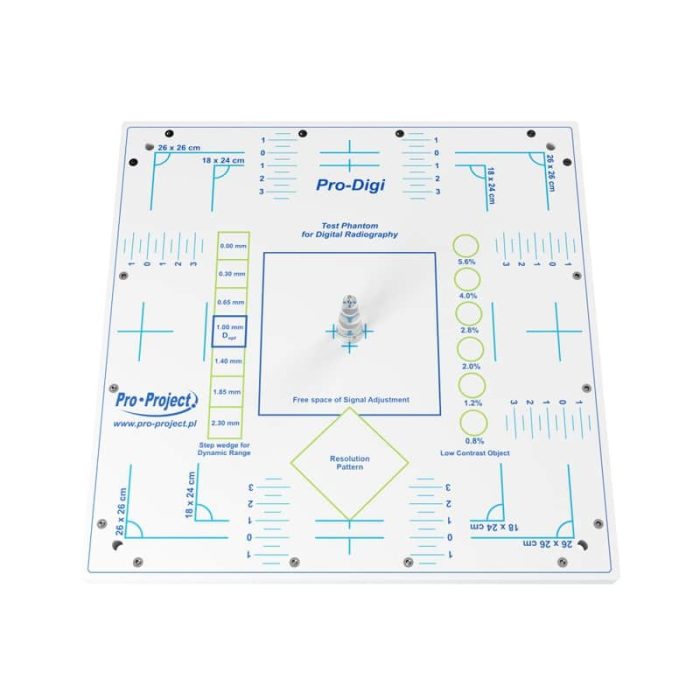

Pro-Digi (Digital Radiographic)

The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.

Brand

Model

Pro-Digi

Code

PRO02-102

Add to Quote

The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.

‍It can be used to measure:

  • Collimation / beam alignment
  • Position and size of the effective radiation field
  • Dynamic range
  • Spatial resolution
  • Contrast resolution
  • Homogeneity



Features

Complies with:

  • IEC 61223-3-1
  • DIN 6868/58 and DIN 6868/13
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Dimensions: 310 x 310 x 14 mm
  • 1 mm thick copper plate embedded in PMMA
  • 7-step copper wedge
  • 6 low contrast elements
  • Free area for signal calibration
  • Markings to determine the size and position of the effective radiation field
  • Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
  • Cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°

Measurments

Dimensions: 310 x 310 x 14 mm
