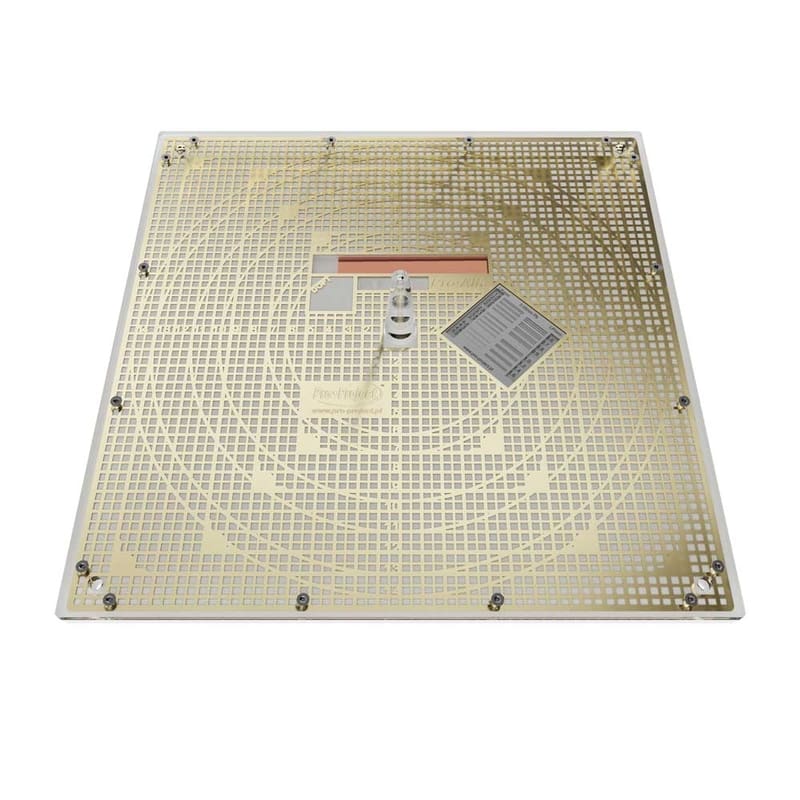

Pro-Alpha (Conventional Radiographic)

The Pro-Alpha phantom can be used for carrying out acceptance and constancy tests of conventional radiography X-Ray units.

Brand

Model

Pro-Alpha

Code

PRO02-101

Add to Quote

The Pro-Alpha phantom can be used for carrying out acceptance and constancy tests of conventional radiography X-Ray units.

With the Pro-Alpha phantom, you can do the following tests:

  • Collimation / beam alignment
  • Position and size of the effective radiation field
  • Dynamic range
  • Spatial resolution
  • Contrast resolution
  • Image quality (distortion in fluoroscopy)

Features

Complies with:

  • IEC 61223-3-1
  • DIN 6868/3 and DIN 6868/4
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Dimensions: 300 x 300 x 10 mm
  • Brass mesh pattern (5 mm scale) embedded in PMMA
  • 7-step copper wedge
  • 4 low contrast elements
  • Markings to determine the size and position of the effective radiation field
  • Pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
  • Cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°

Measurements

Dimensions: 300 x 300 x 10 mm
