Head QC1 for X-Ray CT, MRI

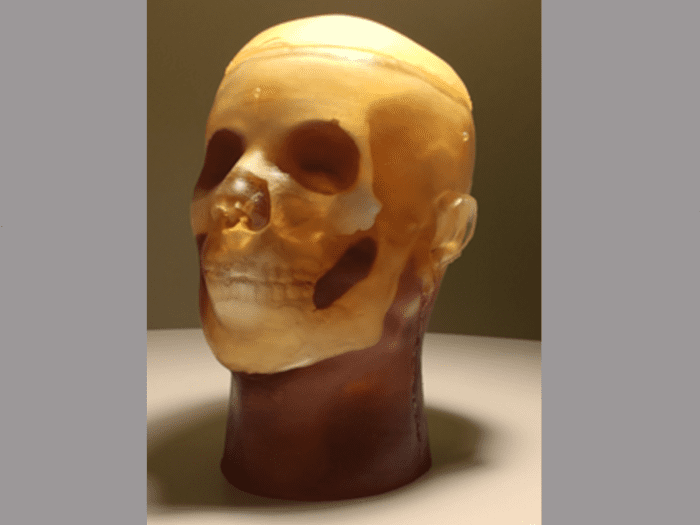

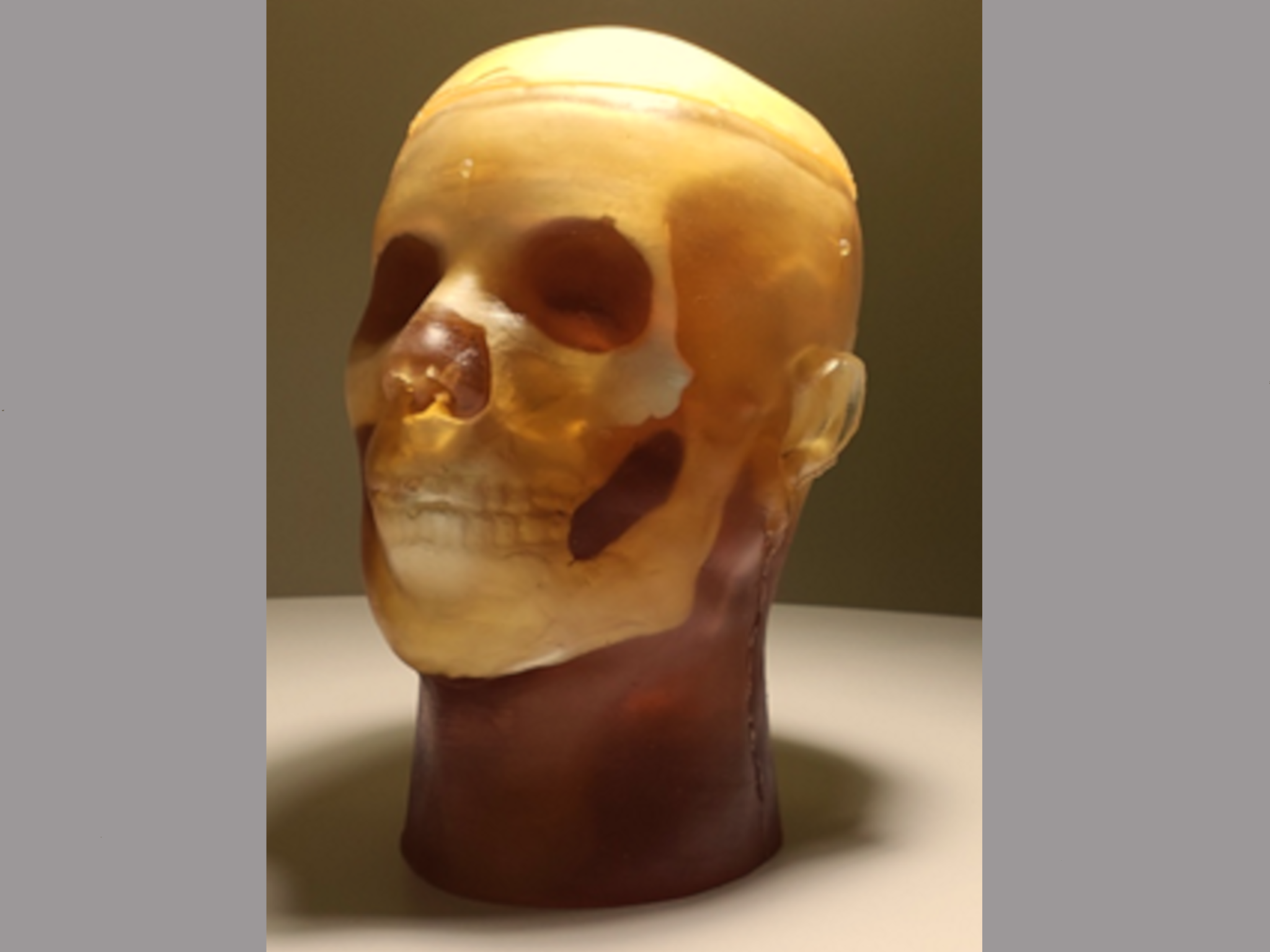

HD-QC1 serves as an ideal tool to study target localization and dose delivery under the image guidance of CT, MRI, and PET. The anthropomorphic features include a lifelike skull with cortical and trabecular bone structures, simulated brain(white and gray matter), cervical vertebrae, sinus cavities, larynx, trachea, and oral cavities.

In addition to this, it can be customized with tissue-equivalent inserts for QA applications.https://youtu.be/33cycgpzjik

Anatomy:
Realistic Skull Phantom
Realistic Brain Phantom Surrounded by Dura Mater
Openable Cavity Inside of Head
Cervical Vertebrae
Sinus Cavities
Larynx
Trachea
Oral Cavities
Custom Target Objects implemented to the Removable Insert
Custom Targets on the Surface of the Head
Skin-Mimicking Material Around Skull

Features:
Ability to Perform IGRT QA Procedures under X-Ray CT and MR Image Guidance
Ability to Perform Machine Quality Checks
Ability to Conduct Winston-Lutz Test, Study Blind Targets, and Target Localization Techniques
The Head is Customizable with Different Shaped Targets (2D, 3D) for IGRT and QA Applications.
Ability to Verify Patient Positioning using Frame or Frameless Systems
Ability to Verify Treatment Plans in Critical Regions
Customizable with a Variety of Interchangeable Tissue-Equivalent Inserts Suitable for Dosimetry Applications

Phantom:

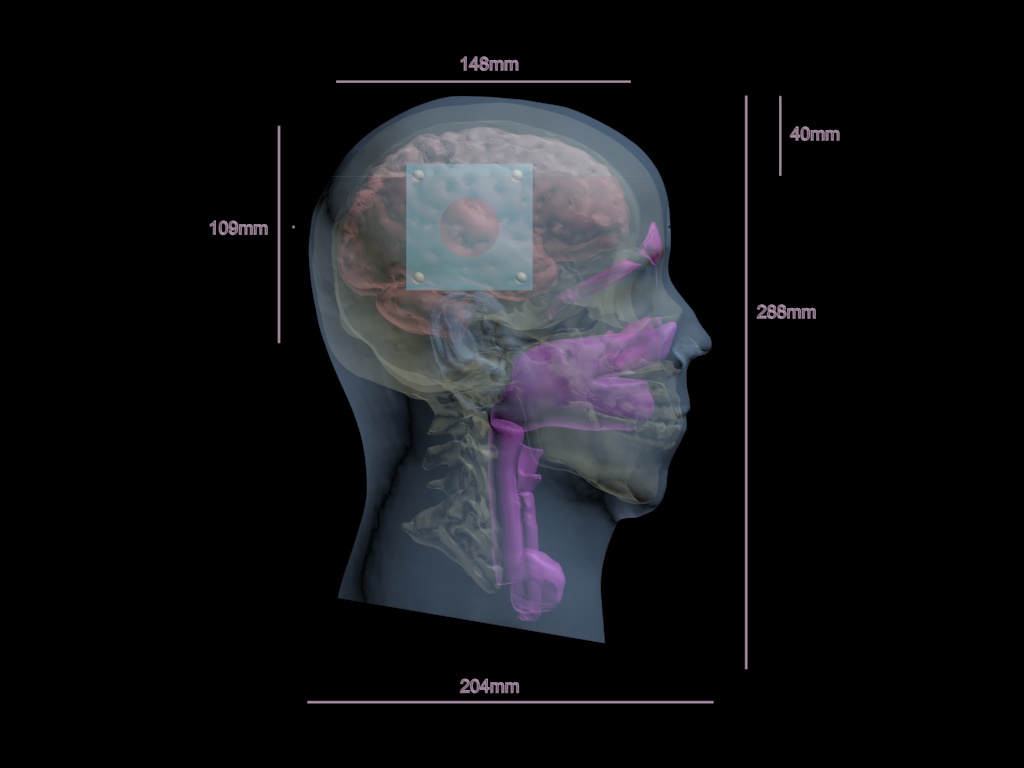

Size: 12 x 9 x 7 Inches, Weight: 17 Lbs (approx.).

Shipment:

Size: 23 x 14 x 10 Inches, Weight: 22 Lbs (approx.)
