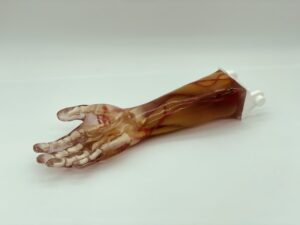

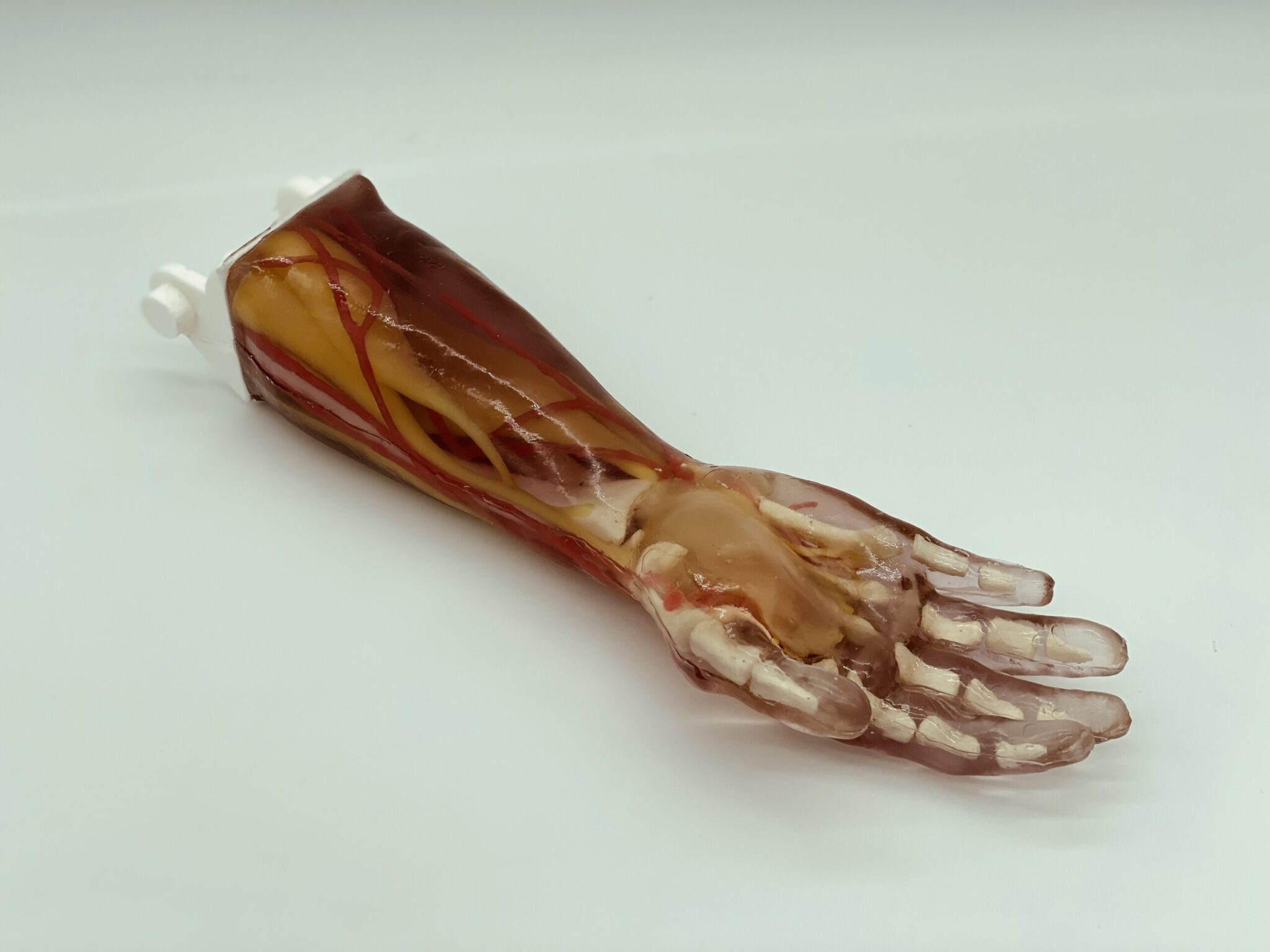

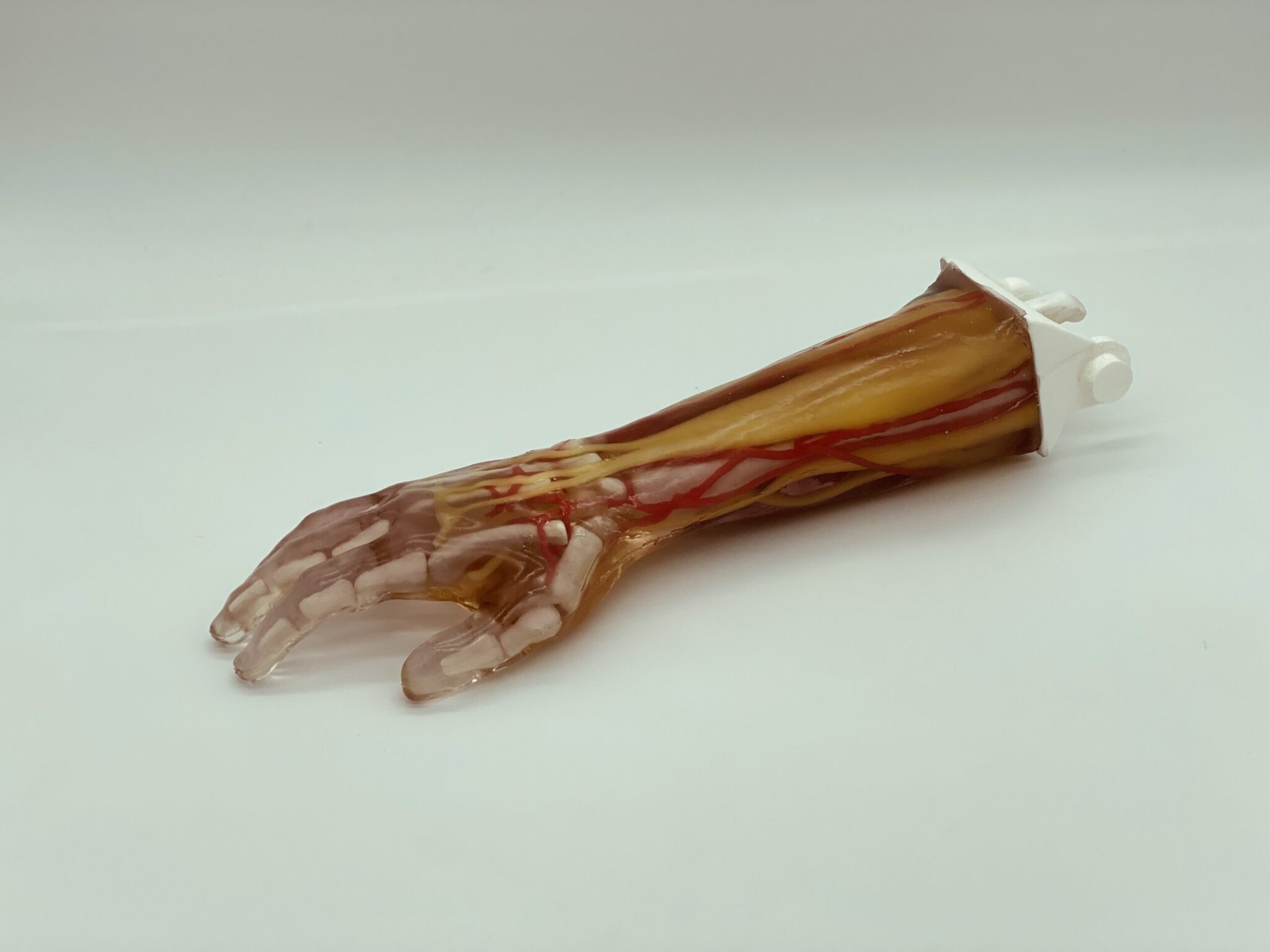

The Adult Arm (Advanced) is a realistic, life-size phantom that is designed based on an average anatomy of a human arm with all the essential bones and tissue features. All major ligaments/tendons structures are present inside.
This phantom is compatible with X-Ray/CT and Ultrasound, which makes it an ideal tool to study, research, and test medical imaging devices.AR-A03 can be used to study several diagnostic X-Ray/CT & Ultrasound procedures in different orientation and positioning techniques.
Upon request, this product can be customized with different pathologies as well as for specific training applications.https://youtu.be/2aB9vUbfb_w

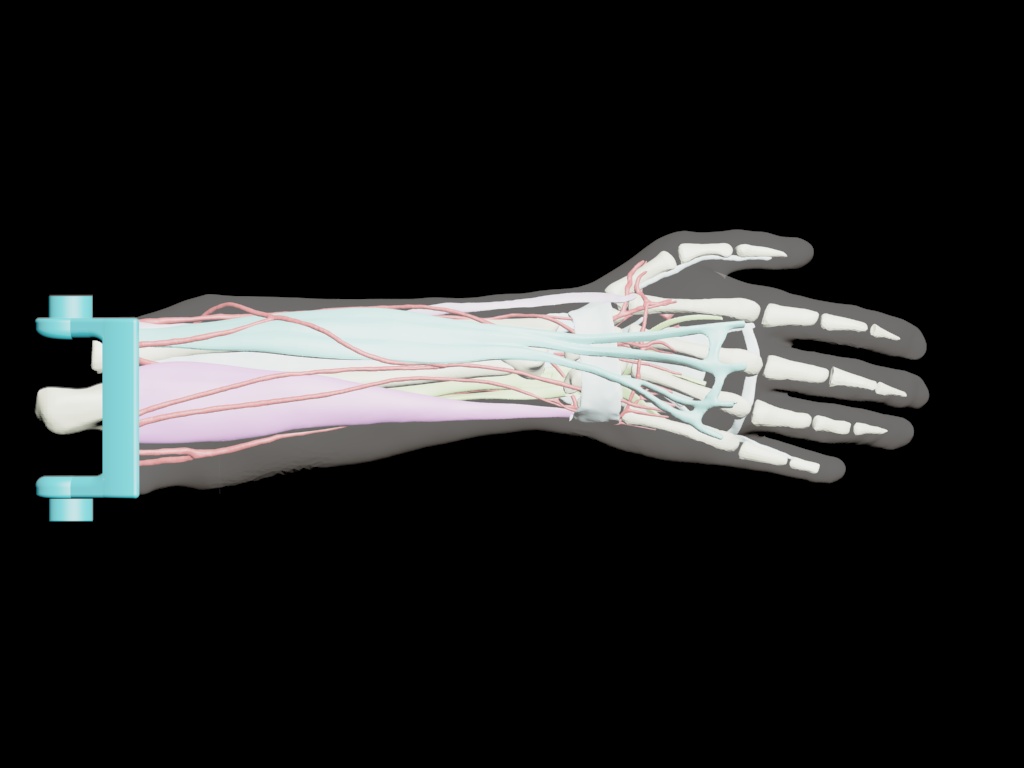

Anatomy:
Radius
Ulna
Carpals
Scaphoid
Phalanxes
Major Muscles
Major Tendons
Static Blood Vessels
Technical Properties:
Type of Tissue
Sound Velocity [m/s]
Density[g/cm³]
Hardness[Shore 00]
T2[ms]
Hounsfield Value
Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone
3000 ± 30
2.31
N/A
N/A
1300
6.4 ± 0.3
Trabecular Bone
2800 ± 50
2.03
N/A
N/A
1300
21 ± 2
Soft Tissue
1400 ± 10
1.02
60
50 ms
25
1.7 ± 0.2
Muscle Tissue
1400 ± 10
1.01
35
60
N/A
1.3 ± 0.2
Size & Weight:
Phantom:
Size: 7 x 7 x 24 Inches, Weight: 7.7 Lbs (approx.).
Shipment:
Size: 28 x 12 x 12 Inches, Weight: 13.2 Lbs (approx.)
Features
Anatomy:
Radius
Ulna
Carpals
Scaphoid
Phalanxes
Major Muscles
Major Tendons
Static Blood Vessels
Specifications
Technical Properties:
Type of Tissue
Sound Velocity [m/s]
Density[g/cm³]
Hardness[Shore 00]
T2[ms]
Hounsfield Value
Attenuation Measured
at 2.25 MHz [dB/cm]
Cortical Bone
3000 ± 30
2.31
N/A
N/A
1300
6.4 ± 0.3
Trabecular Bone
2800 ± 50
2.03
N/A
N/A
1300
21 ± 2
Soft Tissue
1400 ± 10
1.02
60
50 ms
25
1.7 ± 0.2
Muscle Tissue
1400 ± 10
1.01
35
60
N/A
1.3 ± 0.2
Measurements
Size & Weight:
Phantom:
Size: 7 x 7 x 24 Inches, Weight: 7.7 Lbs (approx.).
Shipment:
Size: 28 x 12 x 12 Inches, Weight: 13.2 Lbs (approx.)
