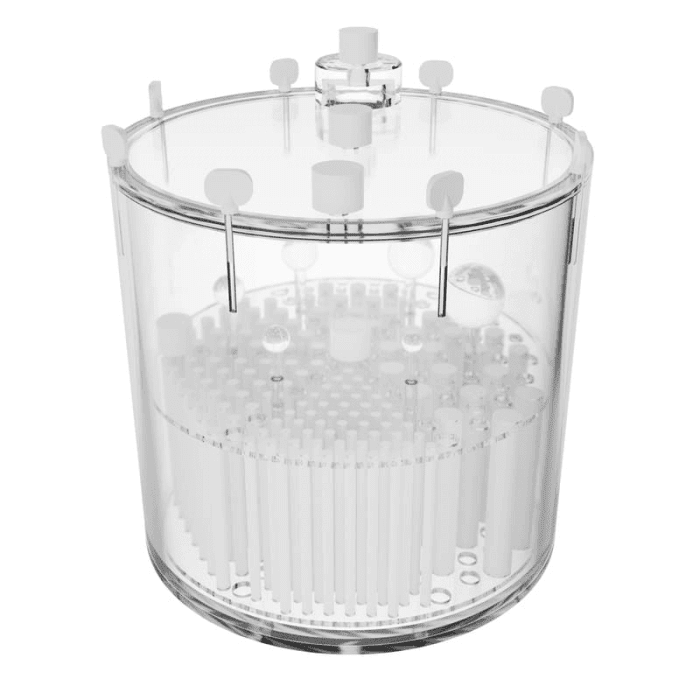

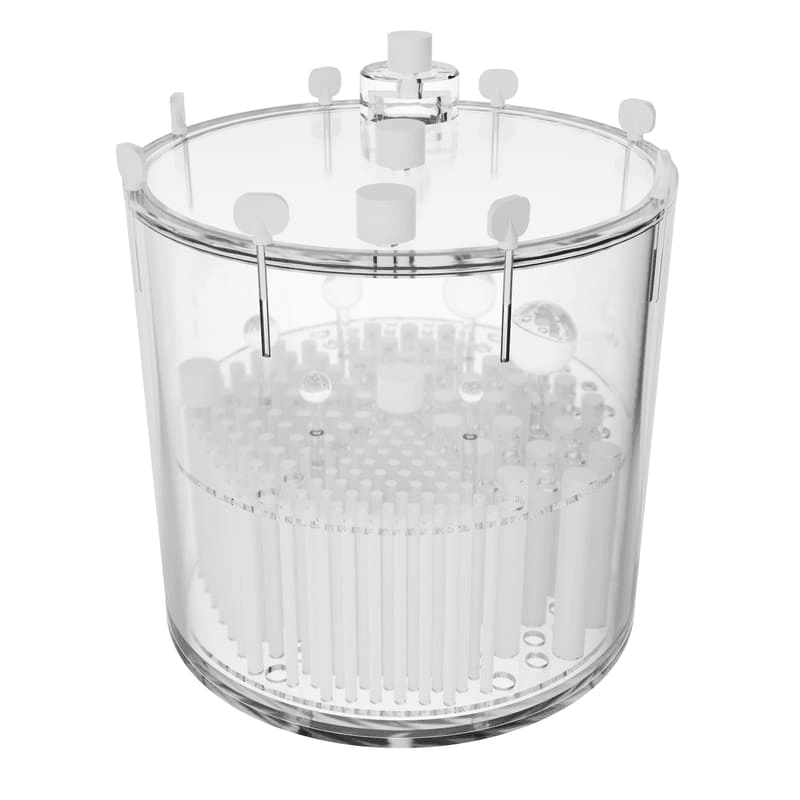

The Small Flangeless Jaszczak SPECT Phantom is used with high spatial resolution SPECT systems. The phantom has a cylinder Twist and Lock lid design.
The Small Flangeless Jaszczak SPECT Phantom is used for system performance evaluation, acceptance testing, and routine quality assurance (QA). The design allows for the evaluation of spatial resolution, center-of-rotation error, uniformity, and attenuation and scatter compensation. The Small Flangeless Jaszczak Phantom is required for the ACR Nuclear Medicine accreditation.
Main Applications
- System performance evaluation (collimator, artifacts, calibration, reconstruction parameters).
- Acceptance testing
- Routine quality assurance and control
- Evaluation of center-of-rotation error
- Evaluation of non-uniformity artifact
- Evaluation of changes of radius-of-rotation on spatial resolution
- Evaluation of reconstruction filters on spatial resolution
- Evaluation of attenuation and scatter compensation
- Research
- ACR recommended phantom for small field of view dedicated cardiac SPECT systems (Camera Specific)
Trademark Information Small Flangeless Jaszczak SPECT Phantom to Data Spectrum Corporation
Model Number: ECT/SM/P

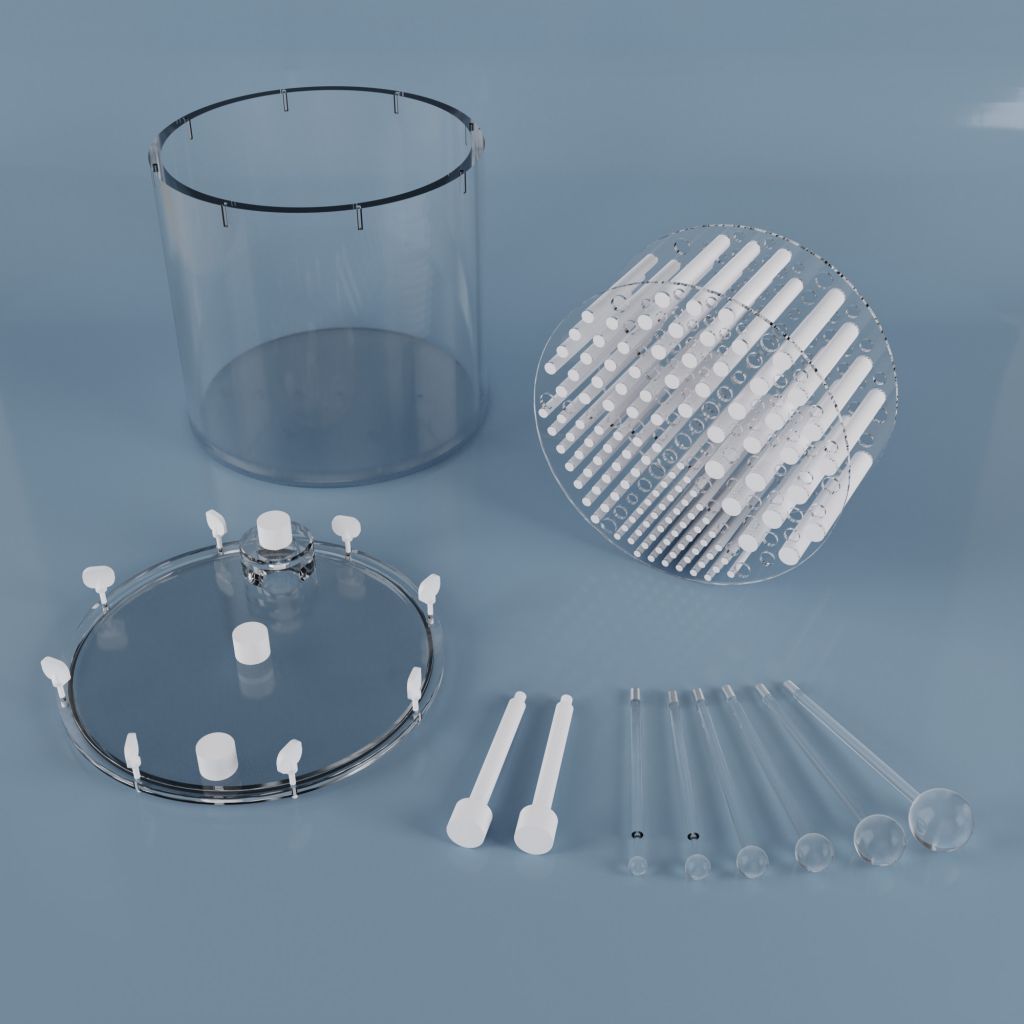

Specifications
Specifications of Cylinder
- Overall length: ~ 230 mm
- Inside diameter: ~ 139 mm
- Outside Diameter: ~ 153 mm
- Wall thickness: ~ 6.4 mm
- Inside length: ~ 150 mm
Specifications of Insert
- Cold Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm*
- Height of cold rods: ~ 40 mm
Specifications of Spheres
- Solid sphere diameters: 6.4, 9.5, 12.7, 15.9, 19.1, and 25.4 mm
- Distance from sphere center to mounting surface: 78 mm
- Sphere circle pattern diameter: 97 mm
- Angular Spacing: 60°
Trademark Information Small Flangeless Jaszczak SPECT Phantom to Data Spectrum Corporation
Model Number: ECT/SM/P
Measurements
Shipping Size & Weight Carton:
Size: 13x13x13
Weight: 6 lbs.
