This device improves alignment of the radiographics and central beam of the x-ray tube. It is designed to test proper grid alignment with respect to the central beam.
Technical data (can be modified to customer specifications):

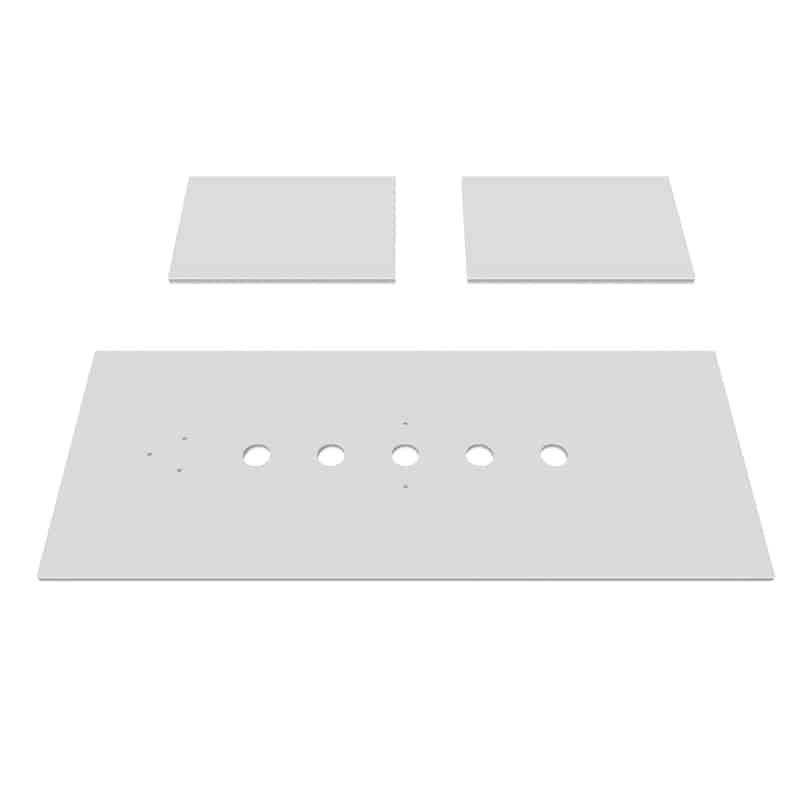

main plastic covered lead blocker
dimensions: 90 x 230 x 2 mm
five larger holes have centers spaced 25 mm apart (allow test exposures to a film cassette)
smaller holes provide marking to show the tool orientation
two additional small lead blockers
Product features:
complies with:
– IEC 61223-3-1
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
