Pro-RF AlphaG (RF Collimation and Beam Alignment)

Pro-RF AlphaG (RF Collimation and Beam Alignment)

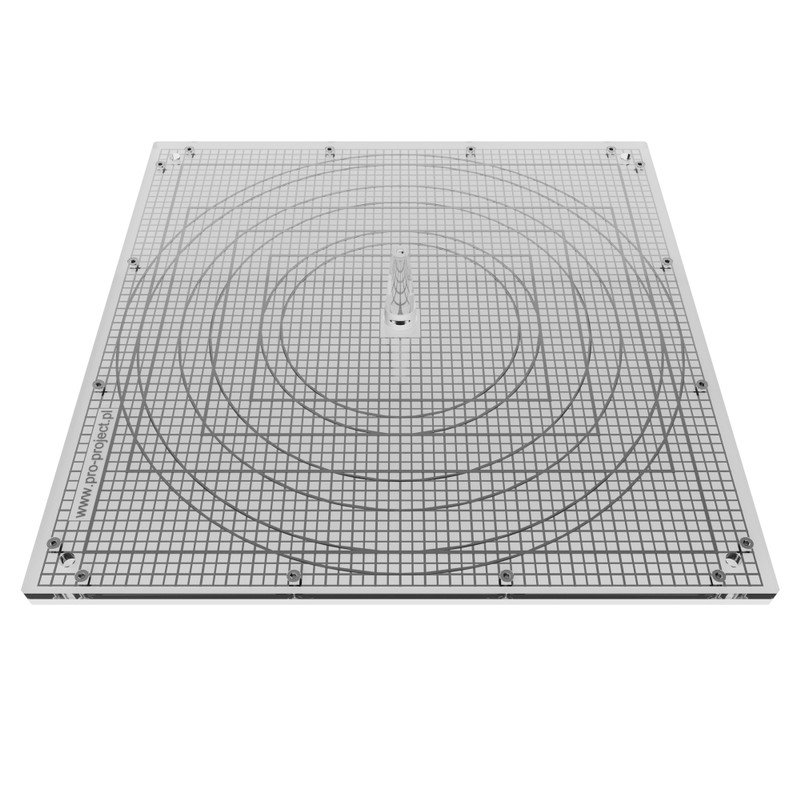

The Pro-AlphaG phantom is a simple tool to check geometry of the R/F system: collimation / beam alignment and position and size of the effective radiation field.

Brand

Model

Pro-RF AlphaG
Code

PRO02-114
Categories: , ,

The Pro-RF AlphaG phantom is a simple tool to check geometry of the R/F system: collimation / beam alignment and position and size of the effective radiation field.

Features

Complies with:

  • IEC 61223-3-1
  • DIN 6868/3 and DIN 6868/4
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

‍Technical Data

‍Technical Data (can be modified to customer specifications):

  • Dimensions: 308 x 308 x 11 mm
  • Lead mesh pattern (5 mm scale) engraved in PMMA plate secured with transparent cover
  • Markings to determine the size and position of the effective radiation field
  • Cone for the perpendicular X-Ray beam control in the range of 0° ÷ 1.5°

Measurements

Dimensions: 308 x 308 x 11 mm
