Pro-RF-AAPM-31

Pro-RF AAPM 31

A set of acrylic and aluminium filters for testing diagnostic X-rays according to AAPM recommendations from Report No. 31 ”Standardized Methods for Measuring Diagnostic X-Ray Exposure”.

Brand

Model

Pro-RF AAPM 31
Code

PRO02-205
Add to Quote
Categories: , ,

A set of acrylic and aluminium filters for testing diagnostic X-rays according to AAPM recommendations from Report No. 31 ”Standardized Methods for Measuring Diagnostic X-Ray Exposure”. Patient-equivalent acrylic and aluminium phantoms provide the necessary attenuation between the source and AEC or ABC detectors.

Features

Complies with:

  • Report No. 31 ”Standardized Methods for Measuring Diagnostic X-Ray Exposure”



  • CE marked
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

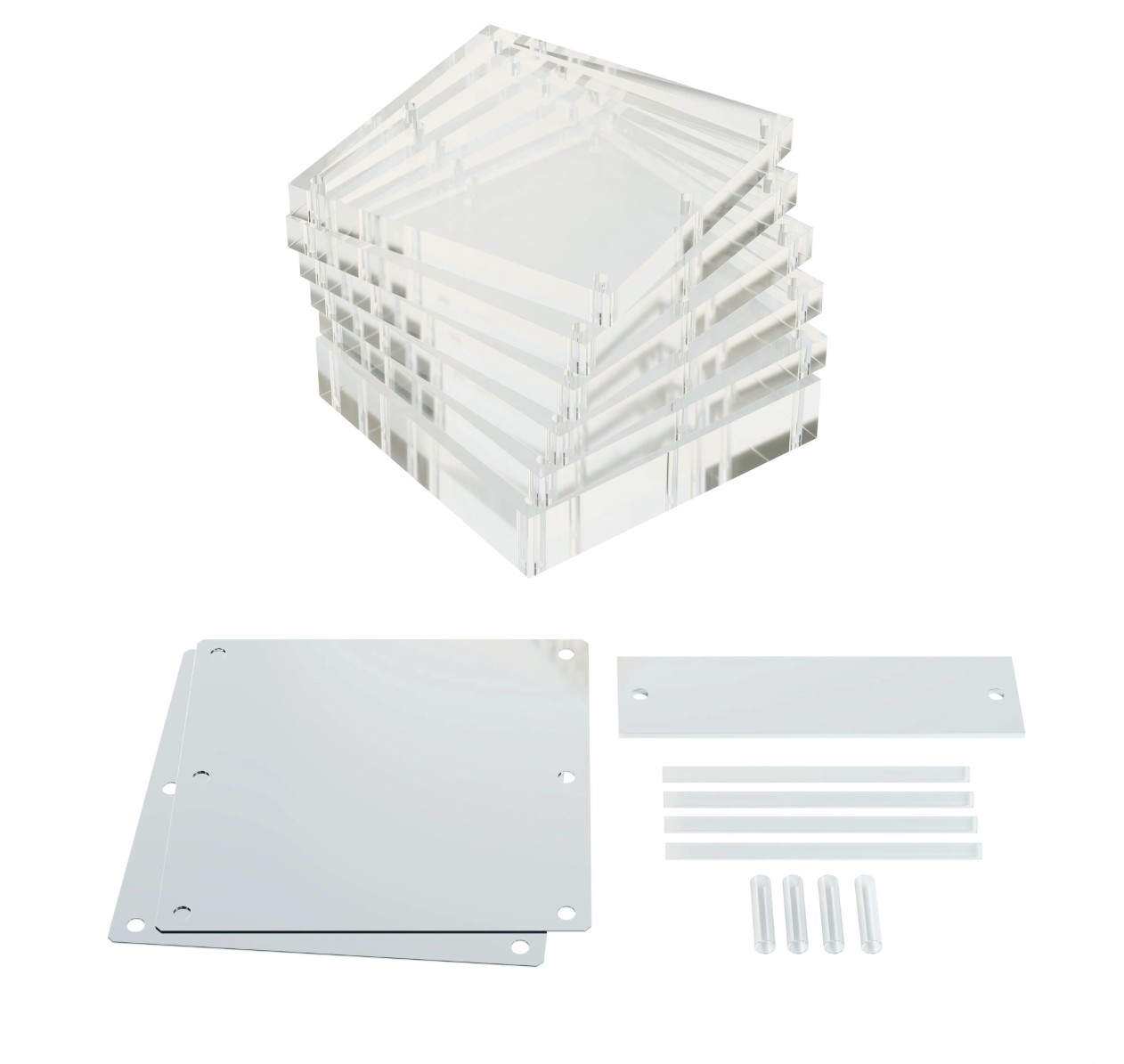

  • 5x acrylic plate 250 x 250 x 25.4 mm
  • 1x acrylic plate 250 x 250 x 50.8 mm
  • 1x 250 x 250 x 1 mm aluminium filter
  • 1x 250 x 250 x 2 mm aluminium filter
  • 1x 70 x 250 x 4.5 mm aluminium filter
  • 4x positioning rod
  • 4x 50.8 mm spacer tube
  • Optional heavy-duty transport case (02-206)
