The phantom designed to be used for routine quick and ongoing checks of imaging performance of mammography systems. It allows evaluating particularly those aspects which are most liable to deterioration.
Product features:
complies with:
– IEC 61223-3-2
this is not an ACR approved phantom for accreditation
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):

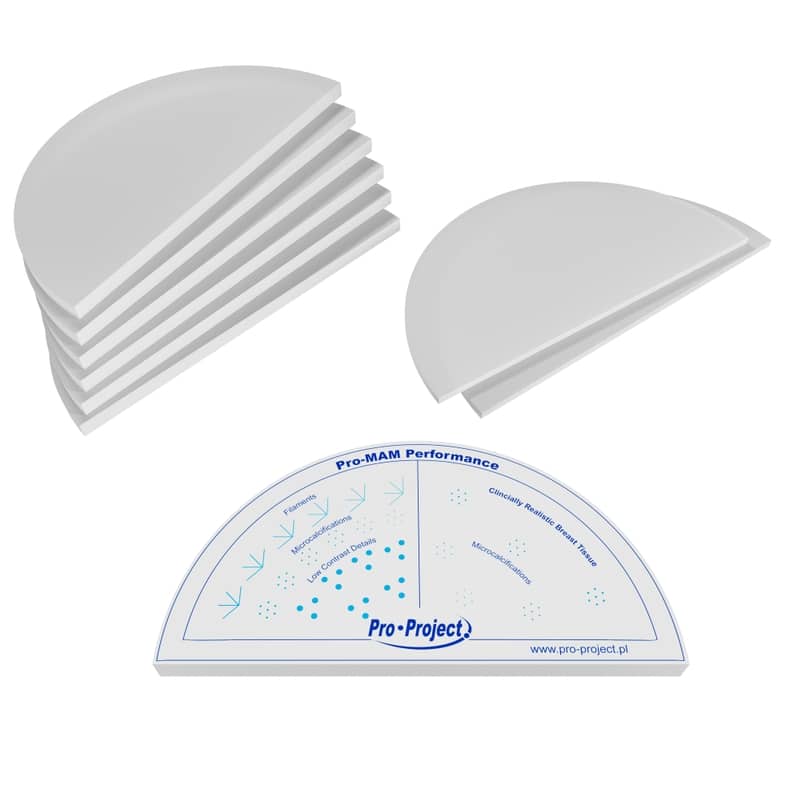

240 mm diameter semicircle
first half of the test module contains:
– 6 groups of 10 mm long multi-directional filaments of the following diameters: 0.40, 0.35, 0.30, 0.25, 0.225, 0.20 mm
– 6 groups of microcalcifications in the following ranges: 354-224, 283-180, 226-150, 177-106, 141-90, 106-63 μm
– 6 groups of 3 low contrast details, 3mm in diameter, producing nominal contrast at 28 kVp of: 0.04, 0.03, 0.02, 0.015, 0.01, 0.005 (each contrast is presented 3 times)
second half of the test module contains:
– clinically realistic breast tissue (not tissue equivalent to but simulating the appearance of the breast tissue) containing 6 groups of low contrast details with the same specifications as in the other half
6 PMMA plates 10 mm thick
2 PMMA plates 5 mm thick
carrying case
