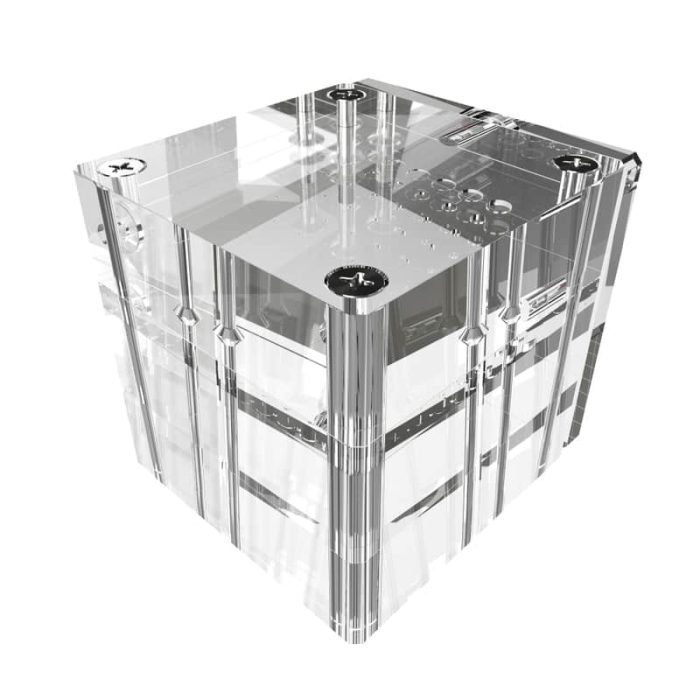

Pro-Mam Contrast

The phantom for performance testing of mammography X-ray units. It has 49 holes that generate subtle changes in contrast. It can be used to detect small variations in system’s performance.

Brand

Model

Pro-MAM Contras

Code

PRO03-105

Add to Quote

The phantom for performance testing of mammography X-ray units. It has 49 holes that generate subtle changes in contrast. It can be used to detect small variations in system’s performance.

Technical data (can be modified to customer specifications):

dimensions: 62.7 x 62.7 x 62.7 mm

typical contrast for mammographic energies: 6.60, 4.20, 2.60, 1.70, 1.00, 0.65, 0.41%

hole depth (7 columns): 0.853, 0.533, 0.332, 0.208, 0.129, 0.080, 0.050 mm

diameter of holes (7 rows): 4.292, 2.524, 1.485, 0.873, 0.513, 0.302, 0.177 mm

optimized for digital units

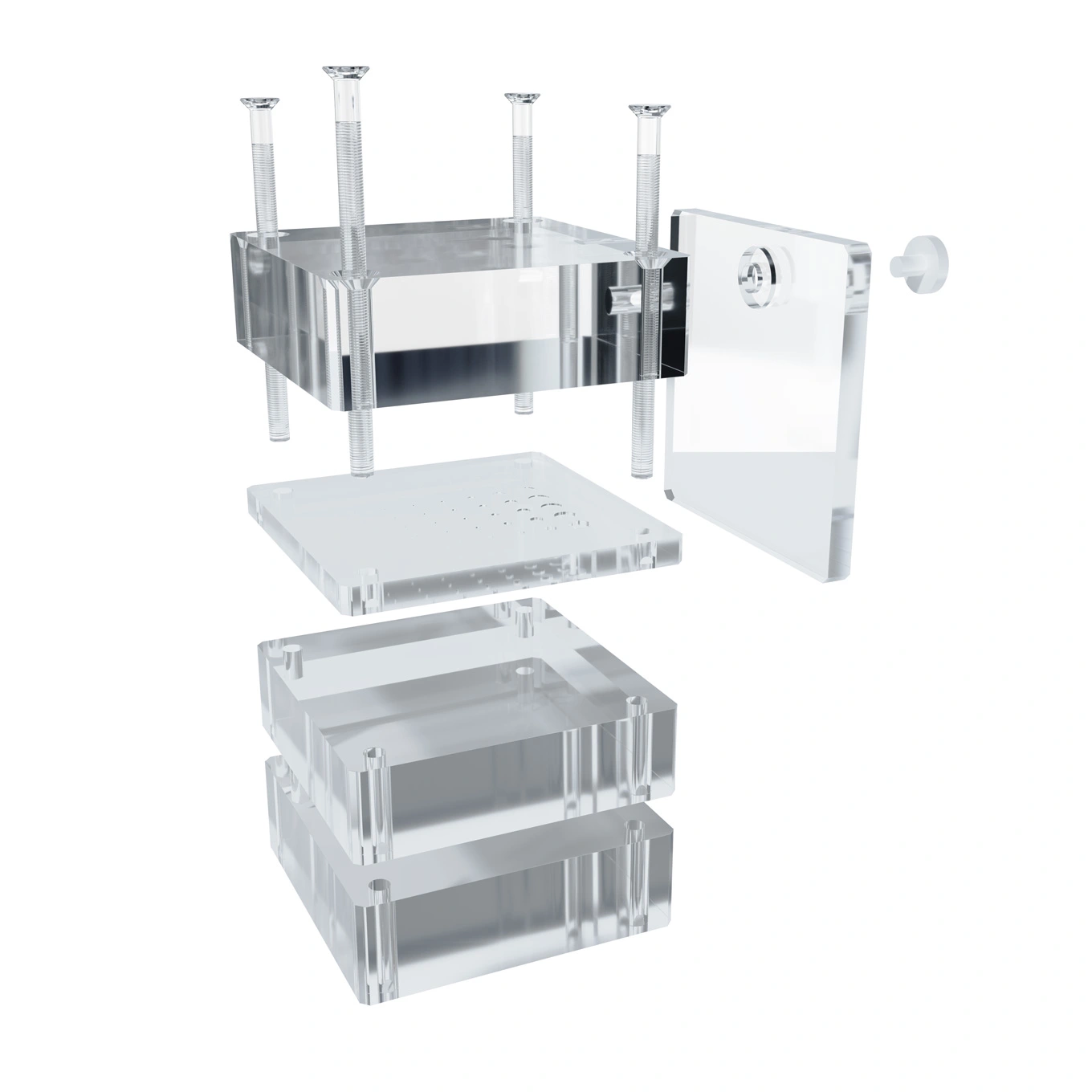

includes a rotating support plate

comfortable carrying case

Product features:
complies with:
– IEC 61223-3-2
– ”European Guidelines for Quality Assurance in Mammography Screening”
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration

Features

Product features:
complies with:
– IEC 61223-3-2
– ”European Guidelines for Quality Assurance in Mammography Screening”
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
