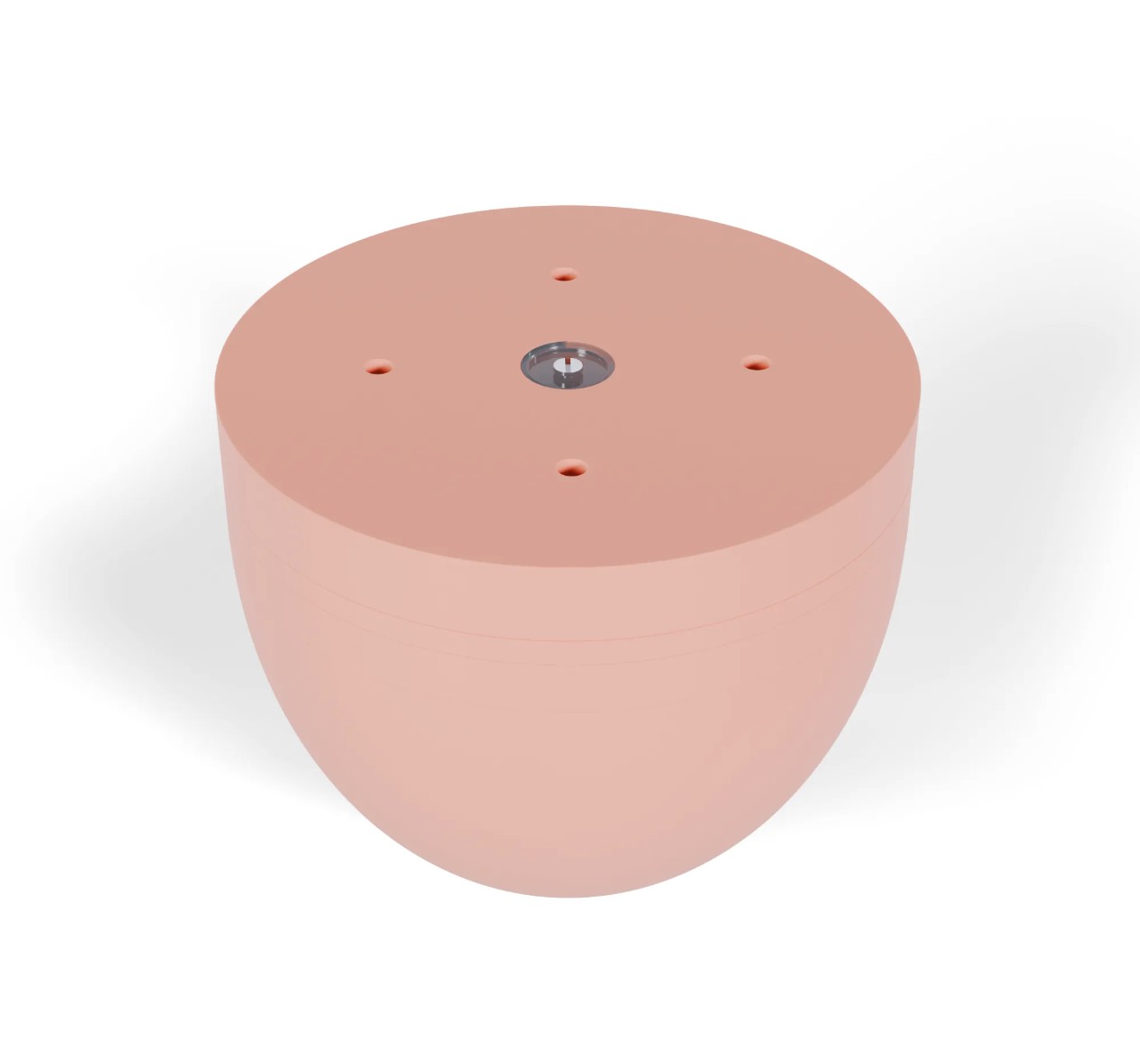

Ensure superior diagnostic quality of your CBCT system with the Pro-MAM CBCT Phantom. This advanced QA tool enables routine assessment of critical parameters: microcalcification visibility, contrast, resolution, and image uniformity. Manufactured from tissue-equivalent materials (20/80 glandular/fat ratio), it delivers clinically relevant results. The modular design allows independent testing of each parameter, while the optional carrying case facilitates transport. Supplied with comprehensive manual streamlines your QA workflow and supports regulatory compliance, protecting image quality and patient safety.
Product Details:
- Designed for routine image-quality and acceptance testing of breast CBCT systems
- Enables assessment of microcalcification visibility, contrast-to-noise ratio, low-contrast detectability, uniformity, and artifact evaluation.
- Manufactured from tissue-equivalent materials.
Technical Data
Technical Data (can be modified to customer specifications):
- Overall dimensions: Ø 130 mm ± 0.5 mm × height 115 mm ± 2 mm
- Shape: semi-ellipsoid
- Construction material: tissue-equivalent mixture BR 20/80 (gland/fat ratio 20/80)
- Internal structure composed of modular sections for independent testing of calcifications, contrast resolution, and image uniformity

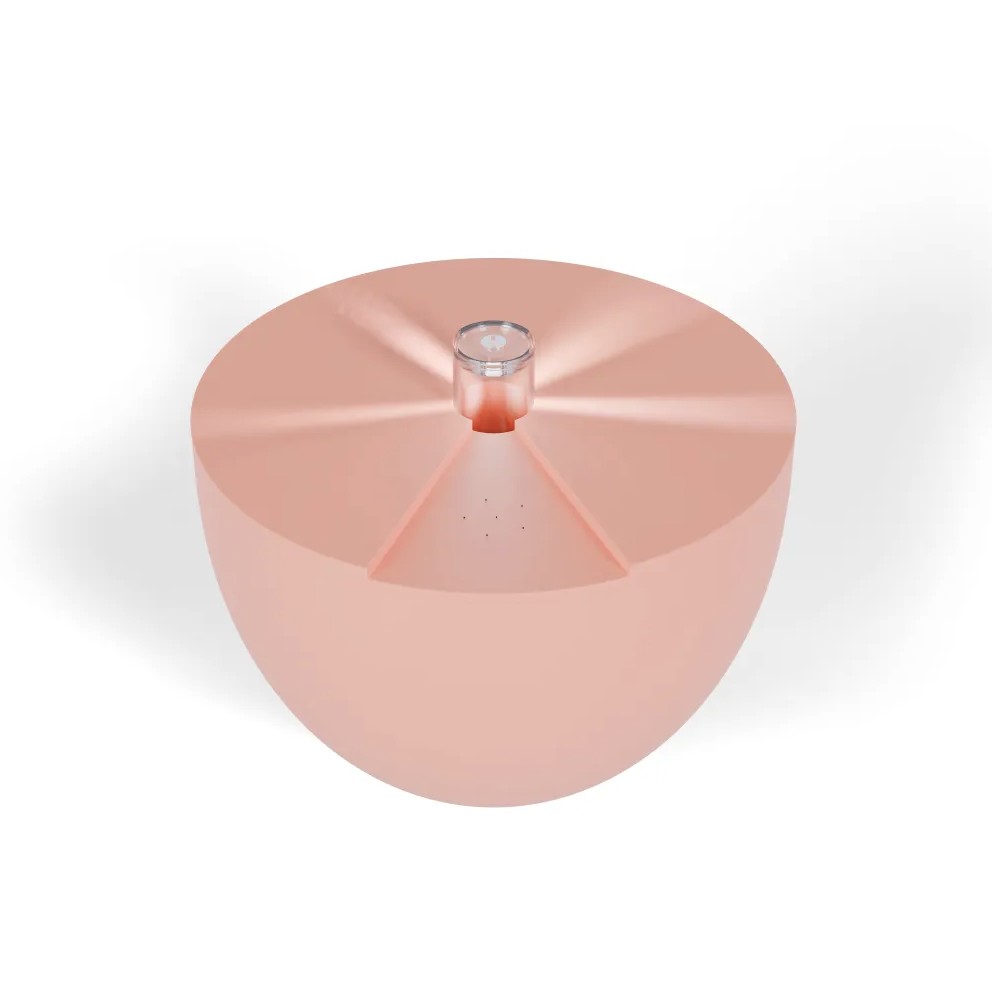

Calcification Clusters Module
- Simulates microcalcification groups in glandular/fat background.
- Calcification point diameters of 320 µm, 290 µm, 270 µm, 240 µm, 220 µm and 160 µm

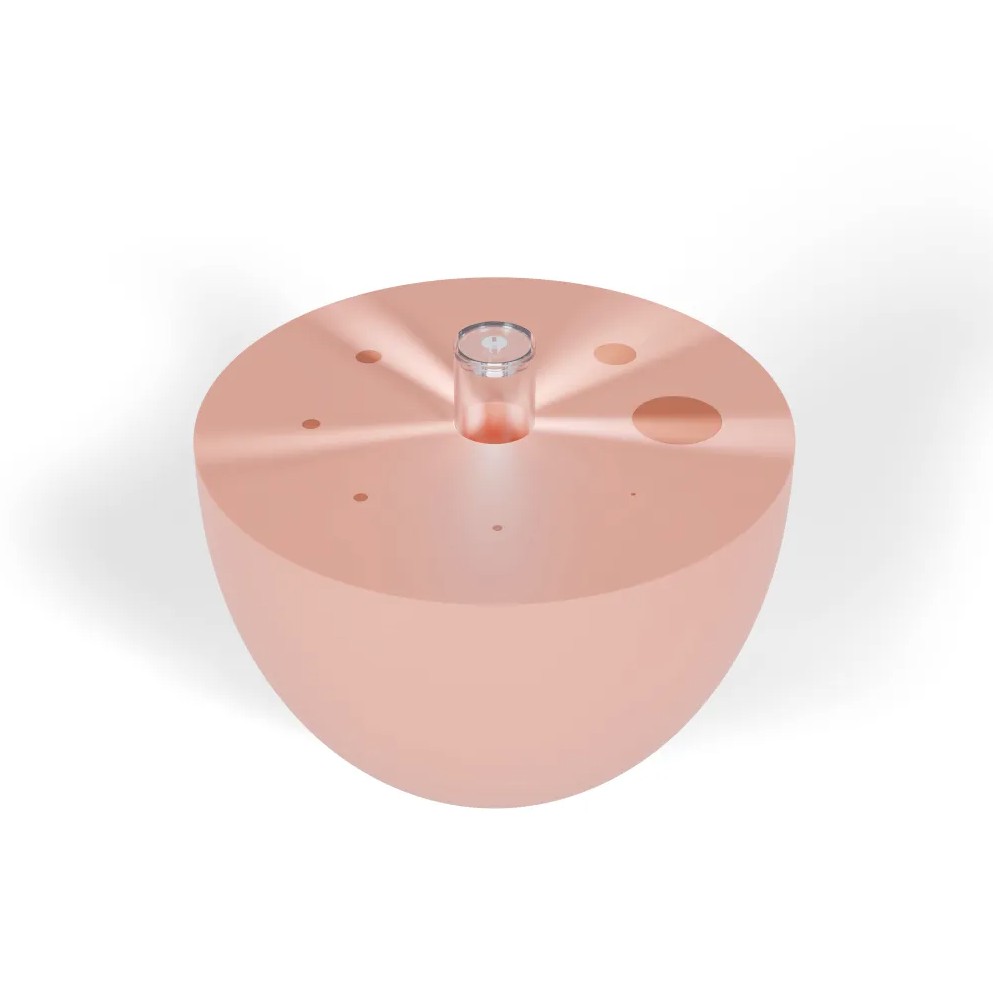

Contrast Resolution Module
- Provides high- and low-contrast targets for evaluation of CNR and low-contrast detectability, also consists Water target.

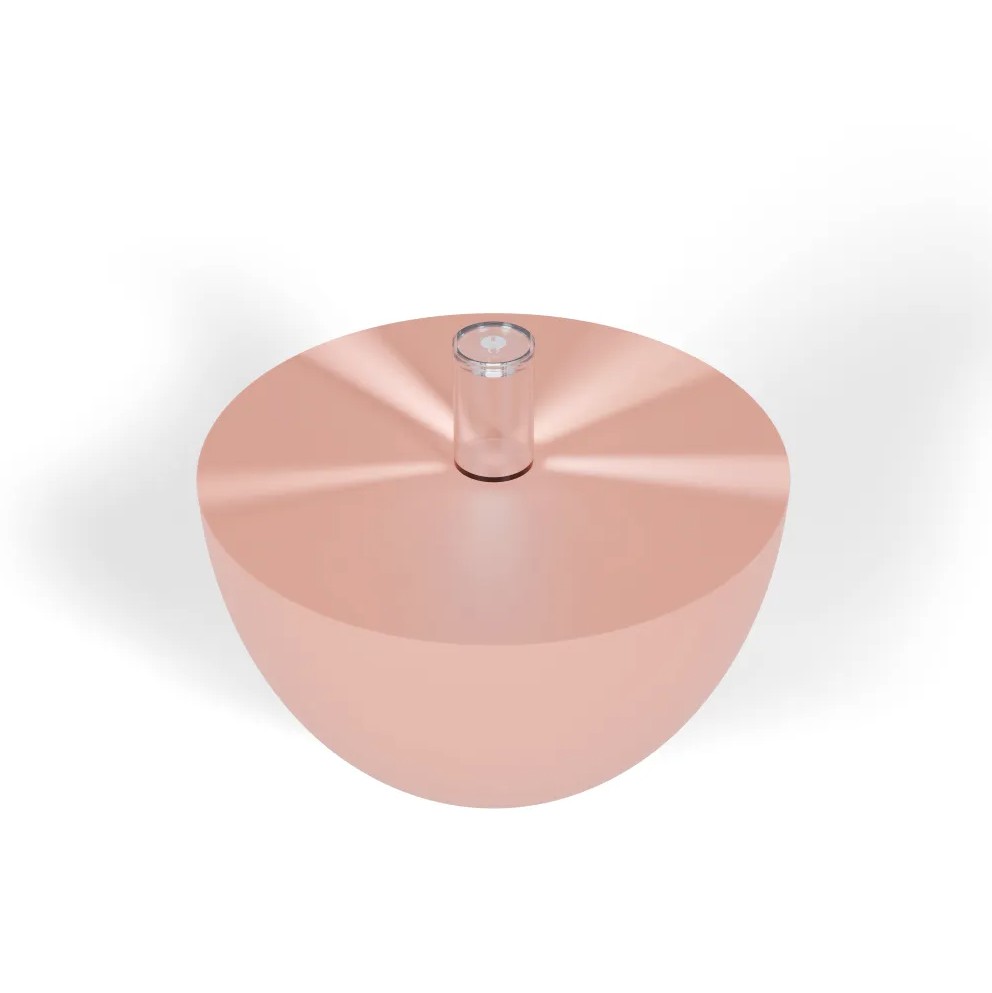

Uniformity Module
- Semi-ellipsoidal section for uniformity and artifacts assessment.
Measurements
Dimensions: Ø 130 mm ± 0.5 mm × height 115 mm ± 2 mm
