Pro-MAM Accreditation – FFDM ACR Phantom

This ACR accredited Full Field phantom was designed to test the performance of a digital mammographic system by evaluating the system’s ability to image small structures similar to those found clinically: micro-calcifications, fibrous structures in ducts and tumor-like masses.

Brand

Model

Pro-MAM Accreditation FF

Code

PRO03-502

Add to Quote

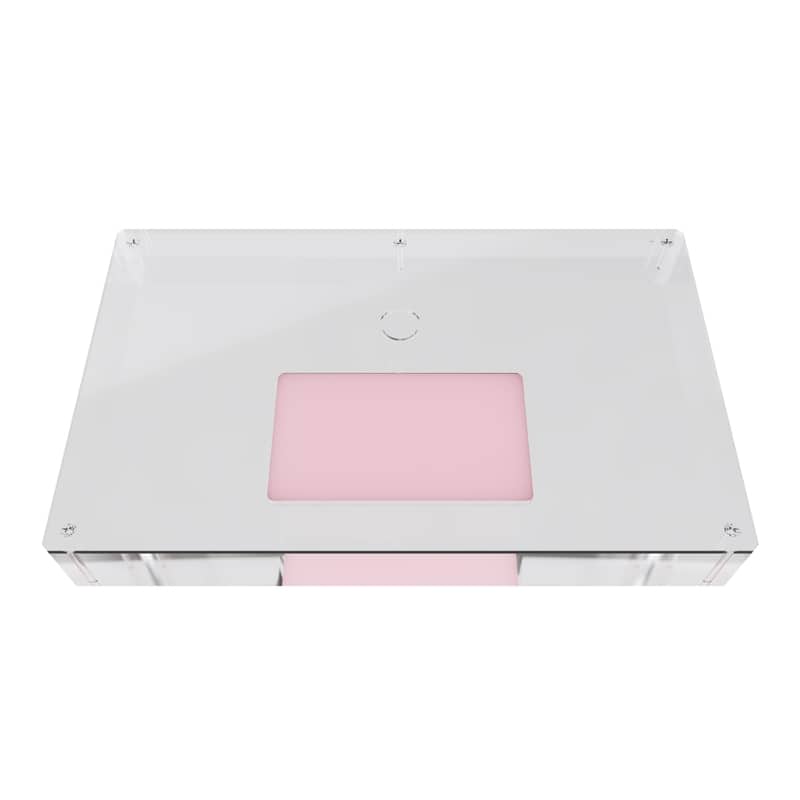

This ACR accredited Full Field phantom was designed to test the performance of a digital mammographic system by evaluating the system’s ability to image small structures similar to those found clinically: micro-calcifications, fibrous structures in ducts and tumor-like masses. It is similar to the Pro-MAM Accreditation phantom, the main difference being the size: the FF (Full Field) version is larger and covers the entire image detector, thus eliminating scatter.

Features

Complies with:

  • IEC 61223-3-2
  • ACR Mammography Accreditation Program Requirements
  • Accredited by ACR
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical Data

Technical Data (can be modified to customer specifications):

  • Dimensions: 311.2 x 190.5 x 41.3 mm
  • Simulates 42 mm compressed breast of average glandular / adipose composition (50% / 50%)

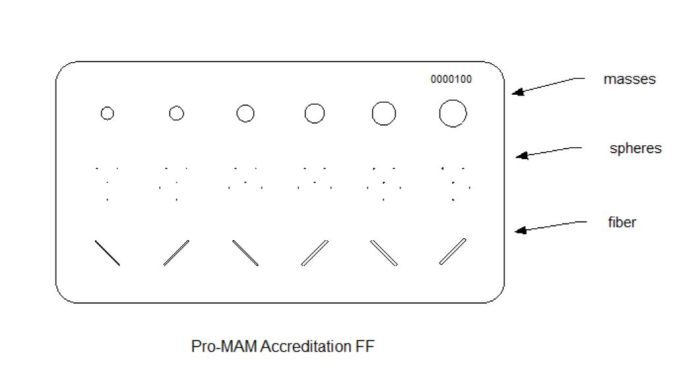

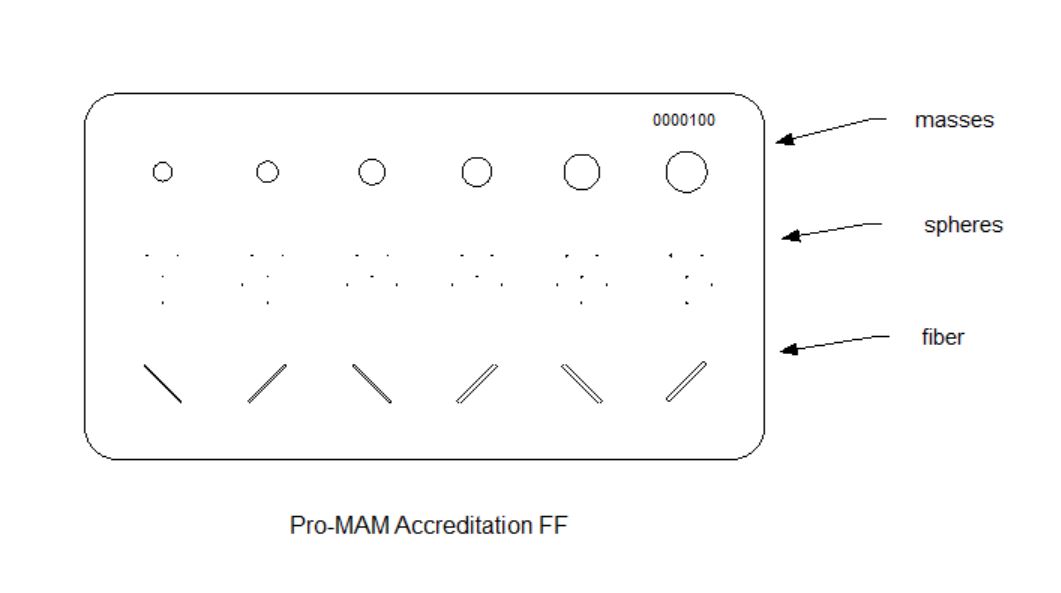

  • Wax insert:
    • nylon fibrils diameters: 0.89, 0.75, 0.61, 0.54, 0.40 and 0.30 mm
    • microcalcifications: 0.32, 0.28, 0.23, 0.20, 0.17 and 0.14 mm specks
    • tumor-like masses: 1.00, 0.75, 0.50, 0.38, 0.25 and 0.20 mm thick
    • comfortable carrying case

Measurements

Dimensions: 311.2 x 190.5 x 41.3 mm
