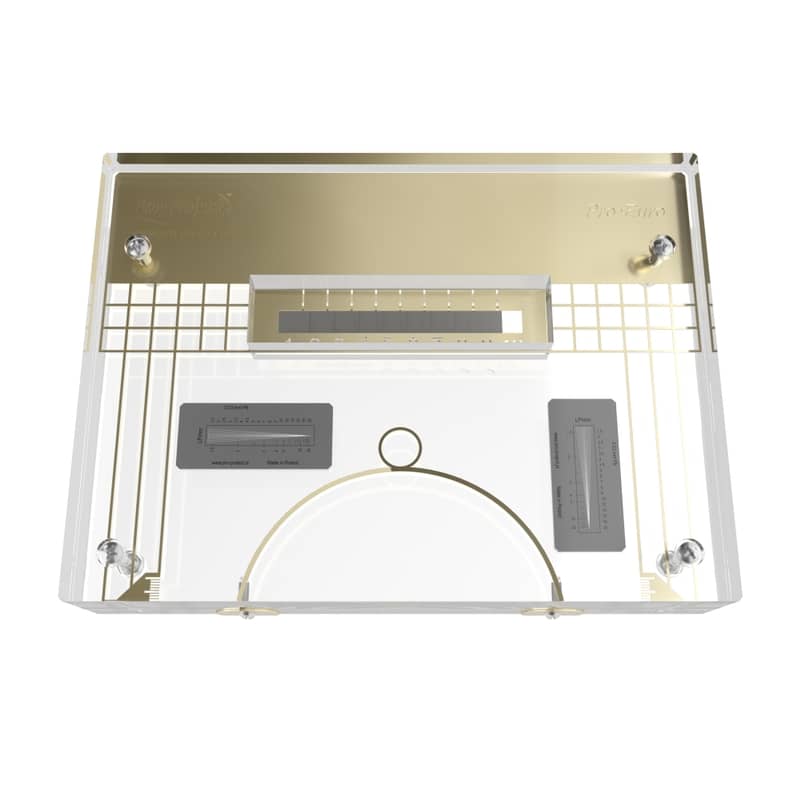

Pro-Euro phantom is used for monitoring technical parameters of mammography imaging systems according to the requirements of the „European Guidelines for Quality Assurance in Mammography Screening” and IEC 61223-3-2.
It can be used to test:
optical density in the reference point
spatial resolution
dynamic range – image contrast
threshold contrast visibility
effective radiation field
film processing
automatic Exposure Control
Product features:
complies with:
– IEC 61223-3-2
– “European Guidelines for Quality Assurance in Mammography Screening”
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
dimensions: 182.5 x 245 x 45 mm
additional 20 mm PMMA plate
reference point (60 mm from the thorax side)
pattern for line pair resolution evaluation (from 1.5 to 20.0 LP/mm) perpendicular and parallel to the thorax side
10-step aluminium wedge
8 low contrast objects
markings (graduations) for assessment of the effective radiation field
space covered with brass for sensitometric measurements
area for the measuring chamber of the automatic exposure timer
