Pro-Dent DIN 2D

Pro-Dent DIN 2D

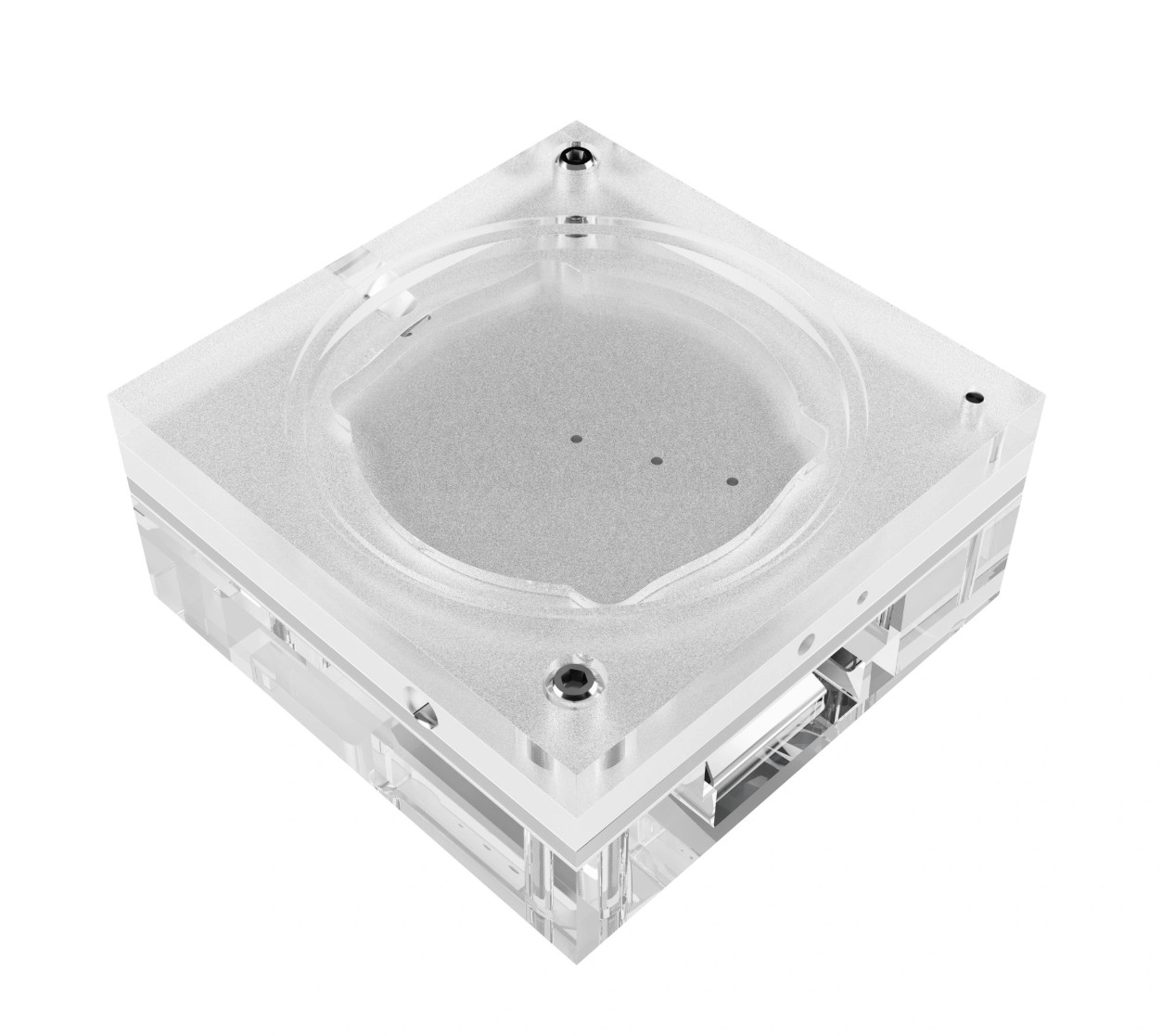

The Pro-Dent DIN 2D is a universal phantom for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic, and cephalometric).

Brand

Model

Pro-Dent DIN 2D
Code

PRO01-220
Add to Quote
Categories: , ,

The Pro-Dent DIN 2D is a universal phantom for digital dental X-ray units.

Features

Product Features:

Complies with:

  • IEC 61223-2-7 and IEC 61223-3-4
  • DIN 6868-5 and DIN V 6868-151
  • ÖNORM S 5240-5 and ÖNORM S 5240-11
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Test Parameters:

  • Spatial resolution
  • Low-contrast resolution
  • Radiation field alignment
  • Image homogeneity
  • Dose equivalency check
  • Artefacts, image flaws, etc.

Specifications

Technical Data (can be modified to customer specifications):

  • Size 80 x 80 x 36 mm
  • 3 centring rings with different diameters to fit standard tubes
  • Slots for digital storage screen, intra-oral sensor, dose detector
  • 45° Line Pair test (2.5 / 2.8 / 3.1 / 5.0 / 5.8 / 6.3 LP/mm; 0.05 Pb)
  • 4 Low Contrast objects (Ø 2.5/2/1.5/1 mm)
  • Integrated filtration 6 mm Al (purity 99.5 %)

Measurements

Size: 80 x 80 x 36 mm
