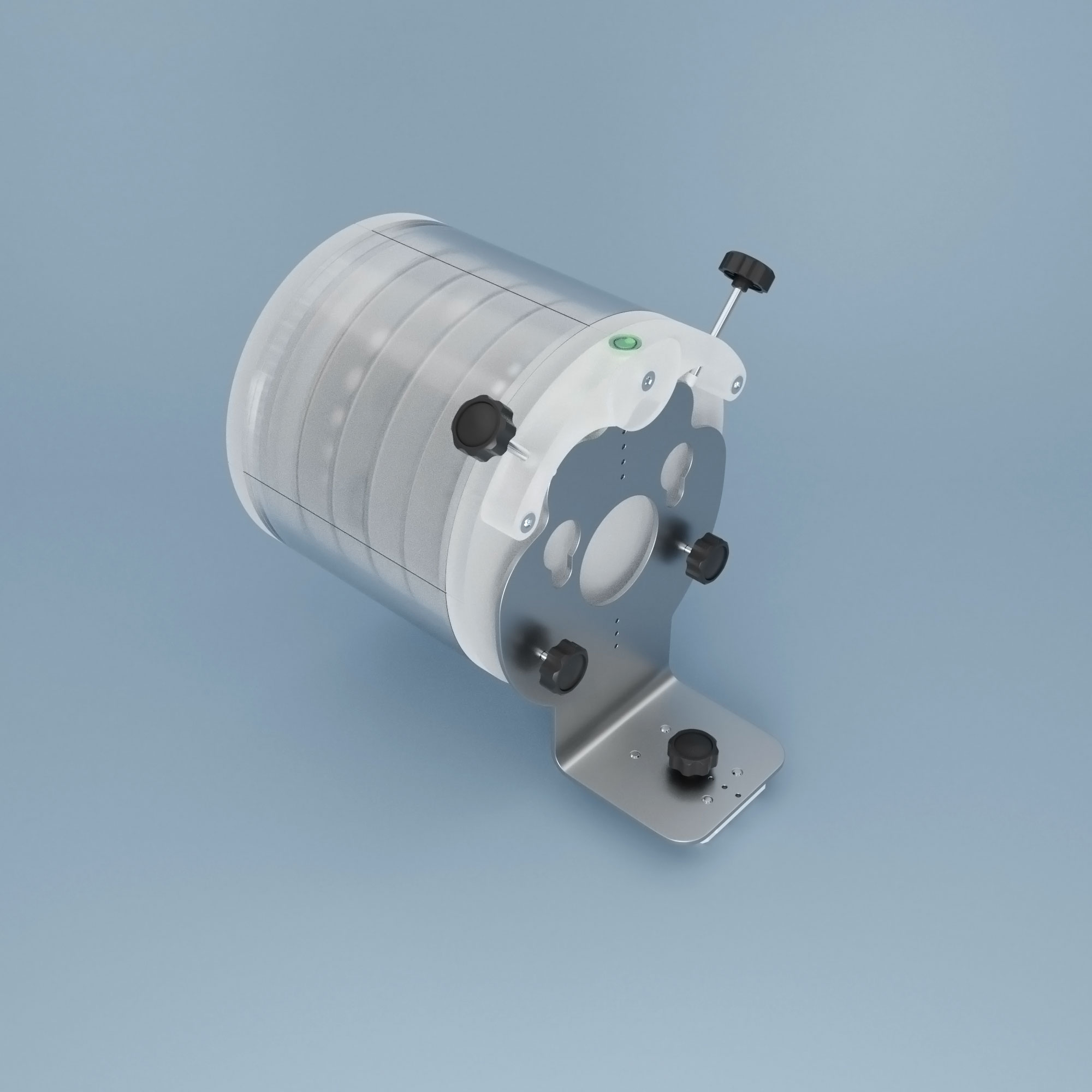

The Pro-CT mk II phantom can be used for carrying out acceptance and constancy tests of computed tomography systems according to IEC 61223-3-5 and the AAPM (American Association of Physicists in Medicine) guidelines. This phantom consists of several test modules placed inside a cylindrical container that can be mounted either directly on a holder of the CT table or on an adjustable stand. It allows accurate alignment for measurements on and off the table. Markings on the phantom and leveling aids provide further facilitation of the positioning process.
https://www.diagnomatic.com/devices/pro-ct-mk-ii
Features
The Phantom can be used to do the following tests:
geometric distortion
CT number (HU) measurement
noise / uniformity
artefacts
MTF
SSP, LSF, PSF
CNR
spatial resolution
spatial resolution in Z dimension
contrast resolution
low contrast resolution
slice profile
alignment
linearity
beamwidth
Specifications
Technical data (can be modified to customer specifications):
the main module contains a PMMA section with an array of holes 2 mm in diameter, 10 mm deep, and placed at 10 mm intervals
outside diameter: 220 mm
length: 250 mm
optional external beam hardening rings:
– 380 mm outside diameter (04-417)
– 350 mm outside diameter (04-418)
– 300 – 380 mm outside oval diameter (04-419)
– 450 – 550 mm outside oval diameter (04-420)

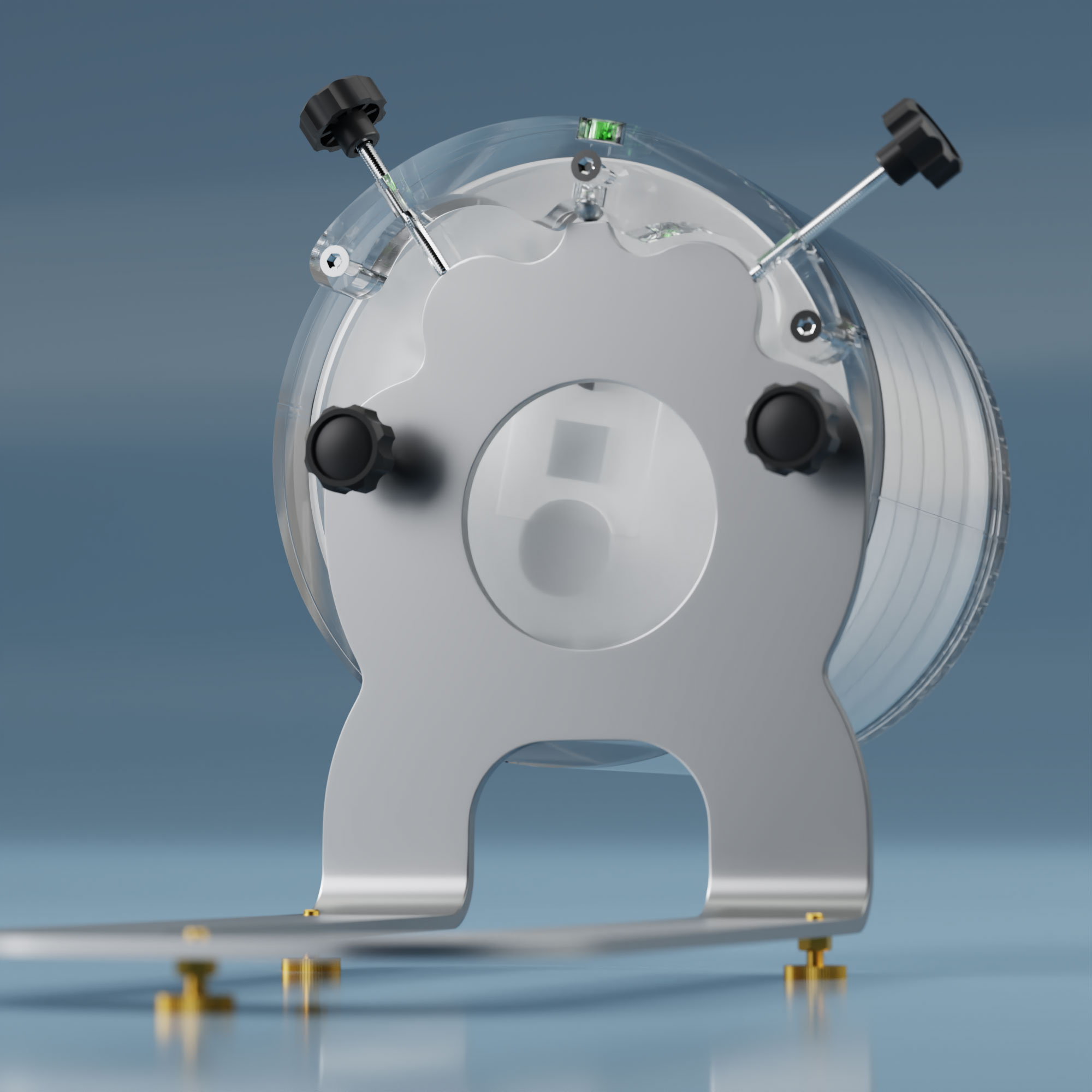

universal positioning stand for on and off-table measurements (04-550)
optional dedicated adapters for various manufacturers:
– (04-551) Canon Medical Systems
– (04-552) Siemens Healthineers
– (04-553) GE Healthcare

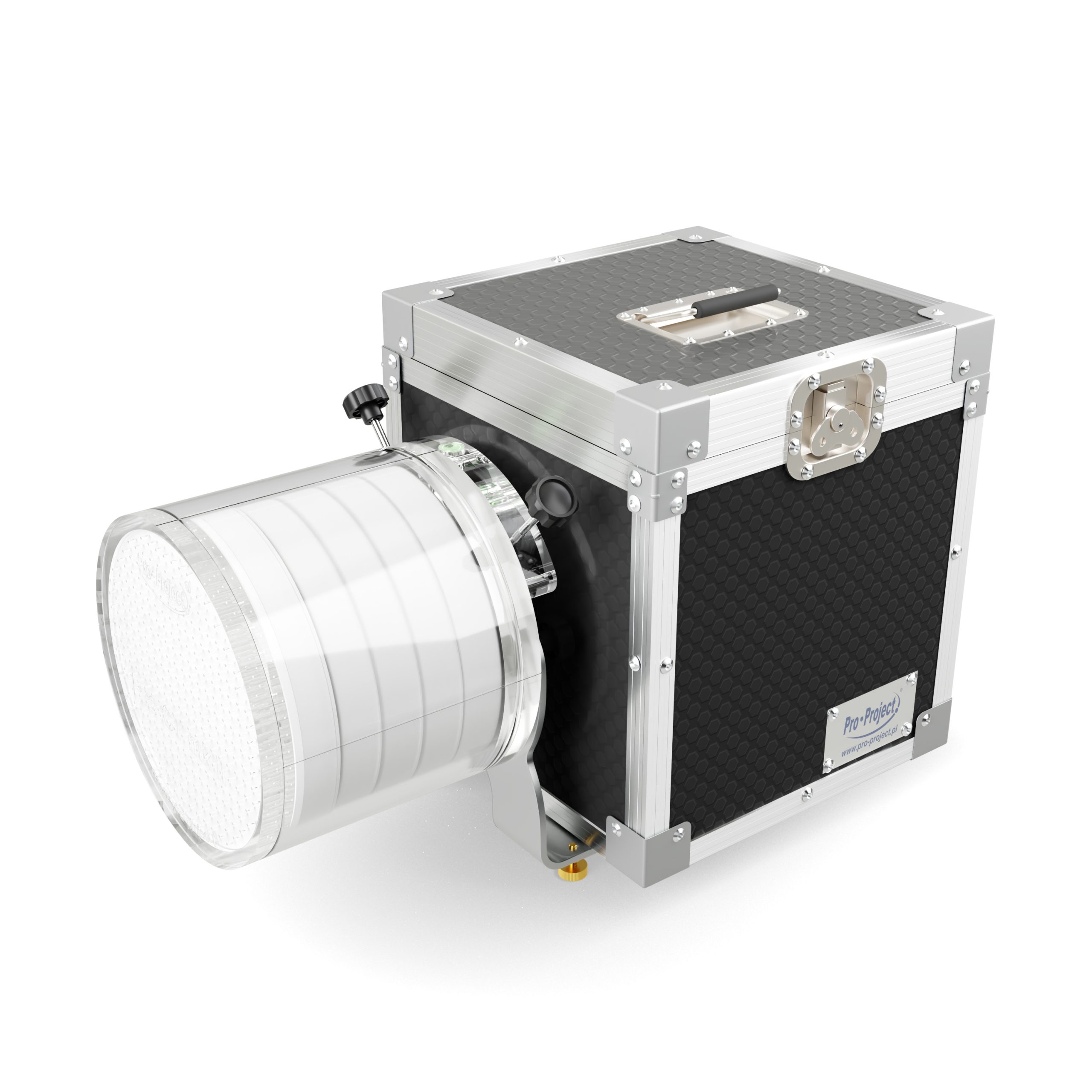

carrying case
