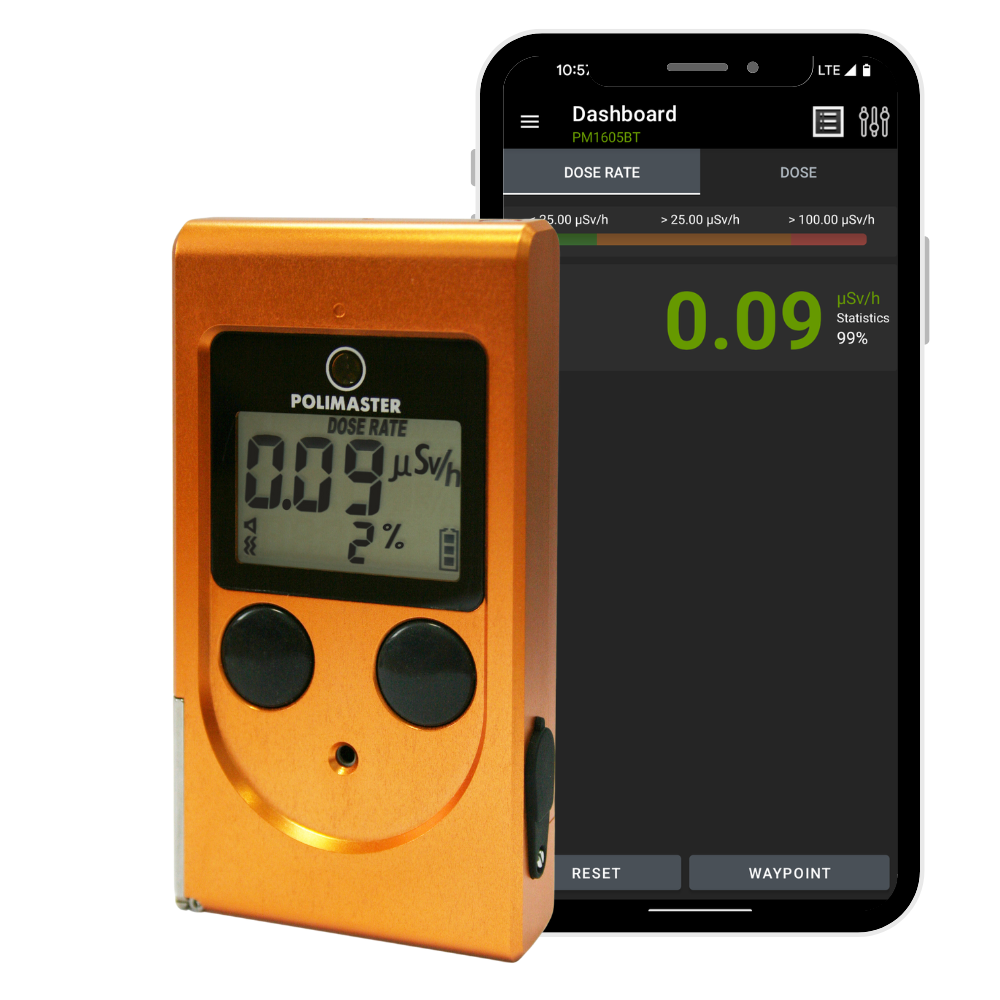

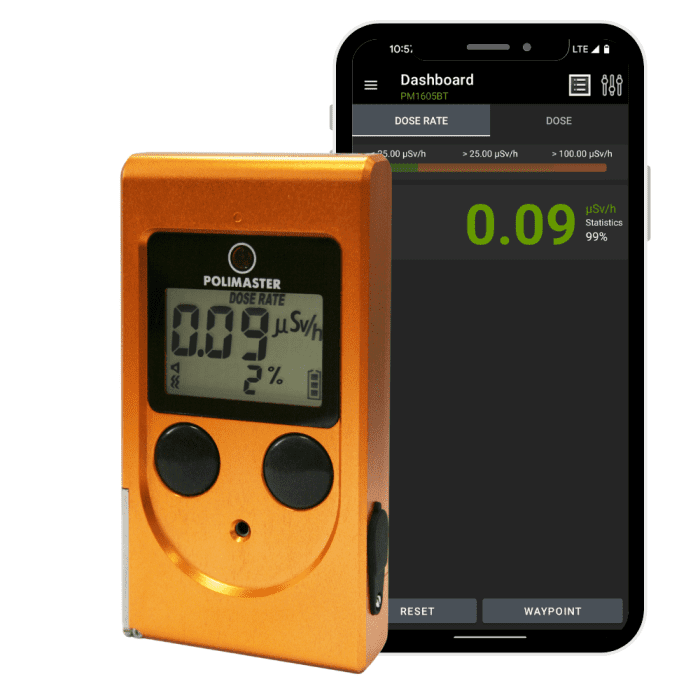

PM1605BT Radiation Monitor/Dosimeter

PM1605BT electronic dosimeter is equipped with a Geiger-Mueller counter for extended measurement of the ambient dose equivalent and ambient dose equivalent rate. Instruments are able to search, detect and locate radioactive sources, alert the user with audible, visual and vibration alarms, transmit stored data to a PC or smartphone.
The dosimeter is designed to withstand extreme environmental conditions such as limited visibility, raised noise, high temperatures, exposure to sea water, shock and falls. Control panel with two big buttons allows the using of protective gloves while operating the instrument.

The instruments are recommended for personal radiation protection of first responders, HAZMAT teams, civil defense, firefighters and the other divisions who deal with radiological emergencies.

Operation principle

PM1605BT ambient dosimeter continuously controls the dose and dose rate threshold levels and alerts the user with audible, visual and vibration alarms when the threshold levels are exceeded. The instruments are able to search, detect and locate radioactive sources.

The instrument is supplied with the user software for downloading measurement history to a PC, maintaining the personnel exposure database and adjusting the settings of the dosimeter. PM1605BT is compatible with Polismart® Android app via Bluetooth, which allows to monitor the instrument readings in real-time, download and transfer the history and adjust the instrument settings.

Features

IP68 case for operation in extreme environmental conditions
Highly visible LEDs on the front and top panels for alarms indication
Removable clip for secure fastening to a belt or a pocket
Large buttons suitable for use with protective gloves
Operating temperature from –30 °С to 65 °С
Ambient dose equivalent rate up to 10 Sv/h
Ambient dose equivalent up to 100 Sv
Bluetooth and USB communication
Battery lifetime at least 9 months
Large and easy-to-read LCD

Detector Geiger-Mueller tube
Dose indication range 0.01 µSv to 100 Sv
Dose measurement range 1 µSv to 100 Sv
Dose measurement accuracy ±15 %
Dose rate indication range 0.01 µSv/h to 13 Sv/h
Dose rate measurement accuracy ±(15 + 0.0015/Ḣ) %
(where Ḣ is the measured dose rate in mSv/h)
Energy range 48 keV to 3 MeV
Energy response relative to 0.662 MeV (137Cs) ±30 %
Water resistant 1 m
Power one alkaline AA battery, 1.5 V
Alarms audible, visual, vibration
Thresholds 2 independent thresholds for both dose and dose rate
Memory 2000 events
Smartphone communication Bluetooth 4.0 LE
PC communication USB
Battery lifetime 9 months*
*when the average dose rate is not more than 0.3 µSv/h; backlight and alarms are activated for not more than 20 s per 24 hours
Ingress protection IP68
Drop test 1.5 m
Dimensions 114 × 62 × 20 mm
114 × 62 × 36 mm (with clip)
Weight 250 g
Operating temperature –30 °C to 65 °C
Atmospheric pressure 84 to 106.7 kPa
Humidity 98 % at 40 °С
Mean service lifetime 8 years
