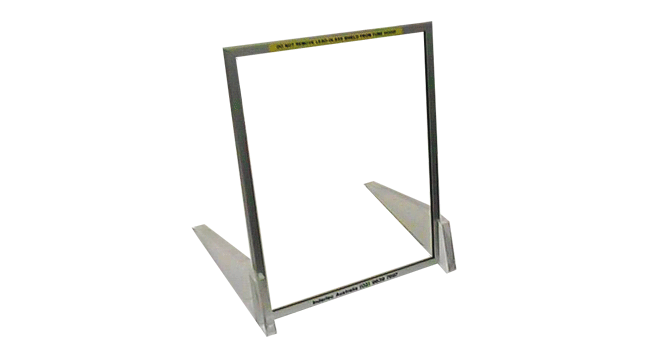

Lead Glass Viewing Barrier

InMed’s Lead Glass viewing barrier consists of 7mm of lead glass (2.2mm Pb equivalent), and can be made with up to 28mm lead glass (8.8mm Pb equivalent). The glass is extruded with aluminium for strength and has special side supports made from acrylic.

Brand

Code

INMGLASSVB

Add to Quote

InMed’s Lead Glass viewing barrier consists of 7mm of lead glass (2.2mm Pb equivalent), and can be made with up to 28mm lead glass (8.8mm Pb equivalent).

The glass is extruded with aluminium for strength and has special side supports made from acrylic.

Ideal for use in fume hoods where space and viewing area are a premium.

Standard Barrier:

  • Glass: Corning Med-X Lead Glass
  • Thickness: 7mm-8.5mm thick
  • Shielding: 2mm pbe @ 150KV
  • Dimensions: 365mm x 315mm
  • Frame: With aluminium framing

Can be custom made to a range of sizes.

Measurements

Standard Barrier:

  • Thickness: 7mm-8.5mm thick
  • Shielding: 2mm pbe @ 150KV
  • Dimensions: 365mm x 315mm

Can be custom made to a range of sizes.
