CAP-TLC Scanner – Automated TLC QC Strip Scanner

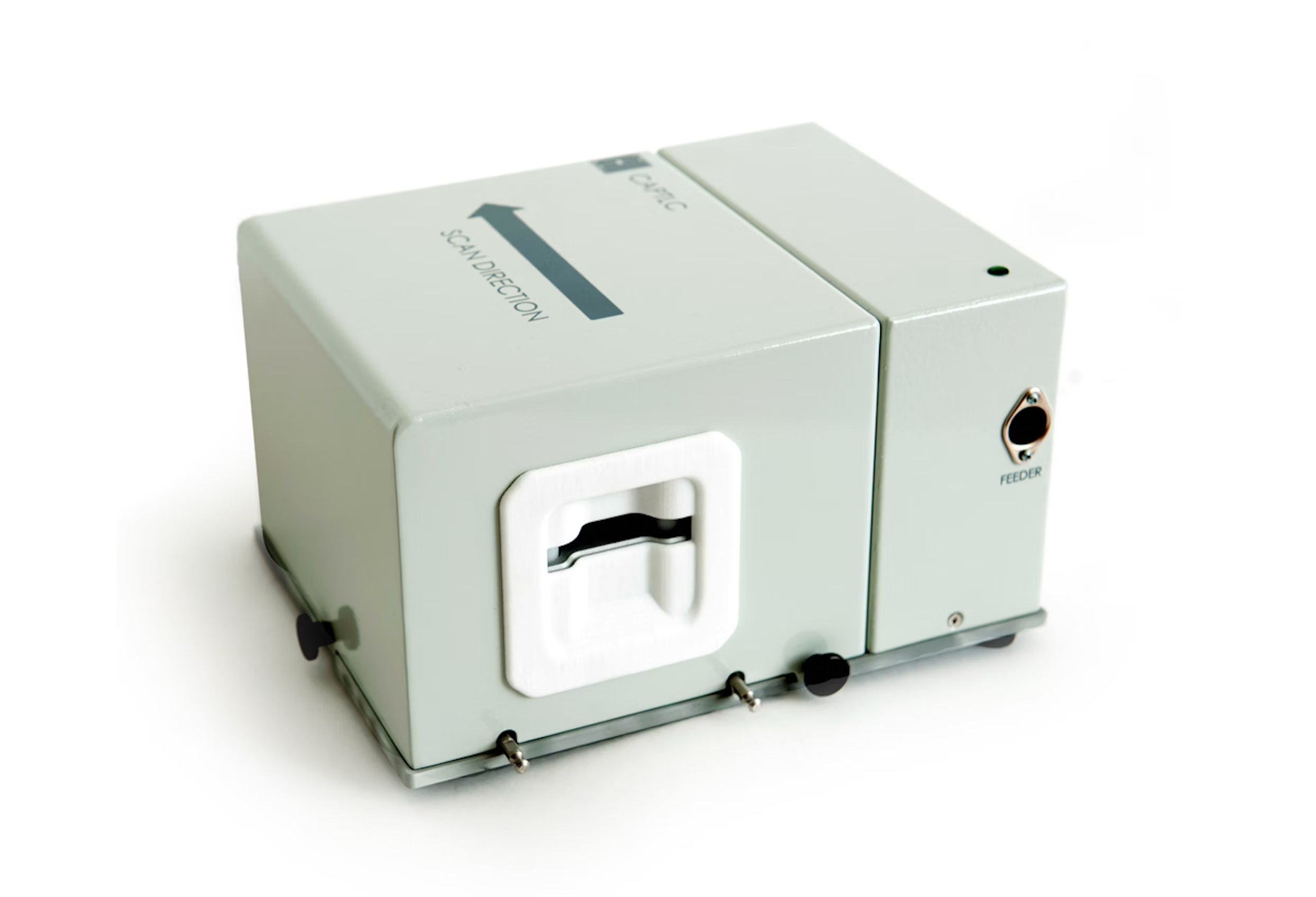

The Capintec™ CAP-TLC Scanner is an automated quality assurance tool to rapidly and accurately perform strip QC for any SPECT radiopharmaceutical kit. Dual detector design assures a wide activity range for kits reconstituted any time of the day. The scanner has an optional feeder attachment which holds up to 30 samples. Short scan times assure rapid processing.

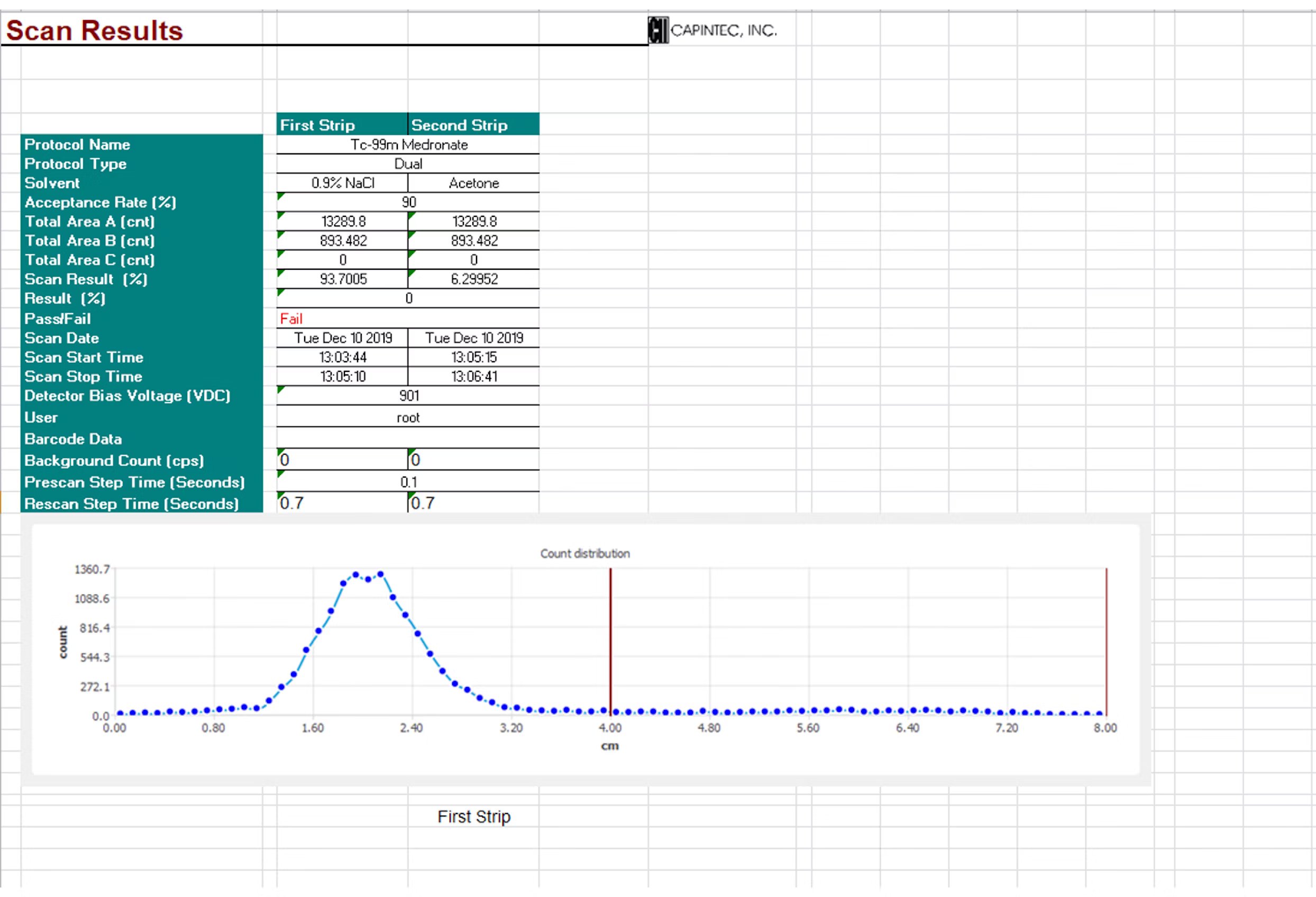

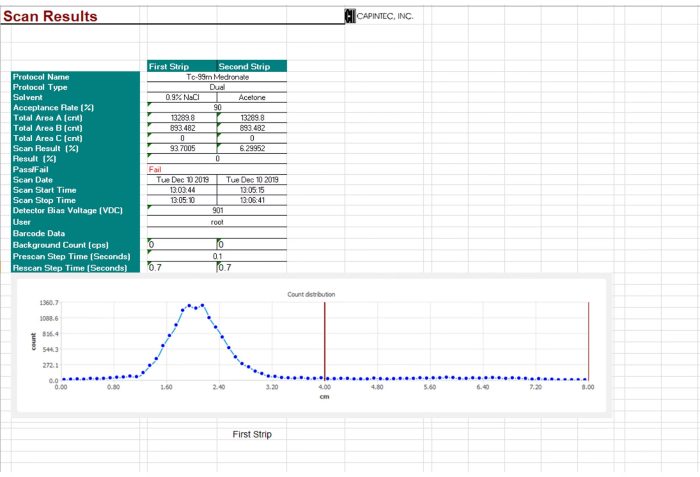

The system is compatible with most nuclear pharmacy management systems. Report includes activity distribution graph and Pass/Fail results based on user defined acceptance limits. Automated transfer of data eliminates manual record keeping.

Software

Windows 10 based application software
Multiple password security levels
Manual or bar code assisted job creation
Daily QC test module
User definable scan protocols
Define scan by total counts or time
Automatically rescans to achieve total counts
User definable Pass/Fail limits
Failed results printed in RED
Includes one strip and two strip protocols
Supports two or three user defined cut points
Automatic background subtract
Excel Report format for easy export
PC Communication Protocol
Compatible with most printers

Hardware

Two collimated GM detectors
Scanning range 4 μCi – 2 mCi
Scan times typically 1-2 minutes
Single axis step motor
Adjustable step points
Includes QC cartridge
Custom strip holder cartridge
Maximum strip length 11.5 cm
Maximum strip width 2 cm
Hinged cover provides easy access for cleaning
USB interface

Optional

Bar Code Reader
Multi Cartridge Feeder
Collection Tray

Console Dimensions (H x W x L)

6.7 x 8.1 x 9.6 in. (168 x 206 x 245 mm) 21.6 lb (9.8 kg)

Feeder Dimensions (H x W x L)

9.9 x 5.1 x 12.1 in.(251 x 130 x 308 mm)9.0 lb (4.1 kg)
