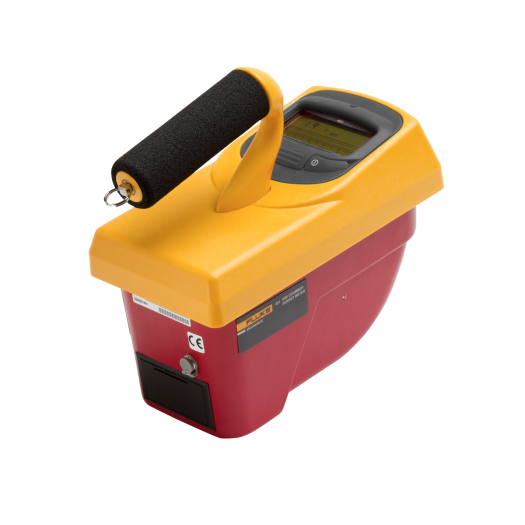

451P Radiation Detector – Pressurized
Ensure radiation safety using our lightweight 451P ionization chamber survey meter tore FAQ Originally designed to measure leakage and scatter around diagnostic X-ray and radiation therapy suites, the 451P’s radiation measurement surveying capabilities make it well-suited for a wide range of end users, including X-ray manufacturers, government agencies, state inspectors, biomedical technicians, and maintenance technicians for airport baggage scanners.
| Brand | |
|---|---|
| Model | 451P |
The auto-ranging 451P ion chamber radiation survey meter features a pressurized ionization chamber, providing enhanced sensitivity (µR resolution) and improved energy response to measure radiation rate and dose from X-ray and gamma sources.
The ion chamber detector allows for a fast response time to radiation from leakage, scatter beams and pinholes. Additionally, the low noise ionization chamber bias supply provides for fast background settling time.

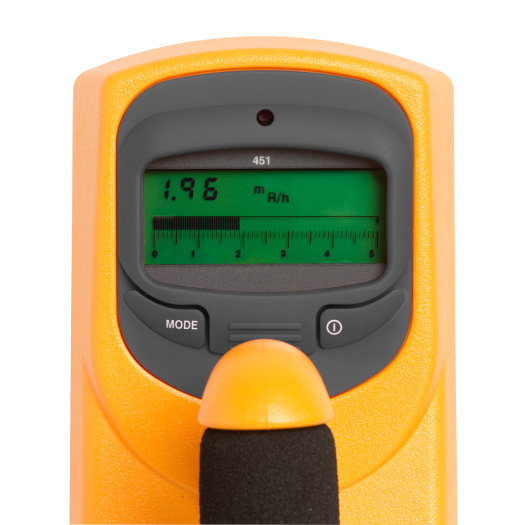

The digital display features an analog bar graph, 2.5-digit digital readout, low battery and freeze (“peak hold”) mode indicators, and an automatic backlight function. User controls consist of an ON/OFF button and a MODE button. The case is constructed of lightweight, high strength materials and is sealed against moisture. The RS-232 interface can be connected directly to a computer for use with the Excel add-in for Windows (451EXL), enhancing the functionality of the instrument. This software allows for data retrieval, user parameter selection and provides a virtual instrument display with audible and visual alarm indication.
Key Features
High sensitivity μR measurements of rate and dose simultaneously, with the capability to record peak dose rate
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Programmable flashing LCD display and audible alarm
Easily-accessible battery door (operated by one or two 9-volt alkaline batteries) on the outside of the bottom case
RS-232 communications interface with optional Windows based Excel add-in for data logging
Available with ambient dose equivalent energy response (SI units)
CE tested. Meets applicable standards
Radiation detected
Beta above 1 MeV, Gamma and x-rays above 25 keV
Operating ranges, typical response time
Sievert (Sv) Model Time
0 to 5 µSv/h 8 sec
0 to 50 µSv/h 2 sec
0 to 500 µSv/h 1.8 sec
0 to 5 mSv/h 1.8 sec
0 to 50 mSv/h 1.8 sec
Accuracy
Within 10% of reading between 10% and 100% of full-scale indication on any range, exclusive of energy response. Calibration source is Cs -137
Detector
Chamber: 230 cc volume pressurized air ionization chamber to 8 atmospheres or 125 psi
Controls
ON/OFF and MODE
Automatic features
Auto-zeroing, auto-ranging, and auto-backlight
Power requirements
Two 9 V alkaline, 200 hours operation
Warm-up time
Less than two minutes for initial operation when the instrument is in equilibrium with ambient temperature
Display LCD analog/digital with backlight
Analog : 100 element bar graph 2.5 inch (6.4 cm) long. Bar graph is divided into five major segments, each labelled with the appropriate value for the range of the instrument
Digital: 2.5 digit display is followed by a significant zero digit depending on the operating range of the instrument. The units of measurement are indicated on the display at all times. Digits are 0.25 inches (6.4 mm) high. Low battery and freeze indicators are also provided on the display
Modes
Integrate mode: Operates continuously 30 seconds after the instrument has been turned on. Integration is performed even if the instrument is displaying in mR/h, R/h, µSv/h or mSv/h
Freeze mode: Will place a tick mark on the bar graph display to hold on the peak displayed value. The unit will continue to read and display current radiation values
Environmental
Temperature range: – 4º to 122º F (- 20° to 50° C)
Relative humidity: 0 to 100%
Geotropism: Negligible
Dimensions 4 (w) x 8 (d) x 6 in (h) (10 x 20 x 15 cm) Weight 2.4 lb (1.07 kg)
Features
Key Features
High sensitivity μR measurements of rate and dose simultaneously, with the capability to record peak dose rate
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Programmable flashing LCD display and audible alarm
Easily-accessible battery door (operated by one or two 9-volt alkaline batteries) on the outside of the bottom case
RS-232 communications interface with optional Windows based Excel add-in for data logging
Available with ambient dose equivalent energy response (SI units)
CE tested. Meets applicable standards
Specifications
Radiation detected
Beta above 1 MeV, Gamma and x-rays above 25 keV
Operating ranges, typical response time
Sievert (Sv) Model Time
0 to 5 µSv/h 8 sec
0 to 50 µSv/h 2 sec
0 to 500 µSv/h 1.8 sec
0 to 5 mSv/h 1.8 sec
0 to 50 mSv/h 1.8 sec
Accuracy
Within 10% of reading between 10% and 100% of full-scale indication on any range, exclusive of energy response. Calibration source is Cs -137
Detector
Chamber: 230 cc volume pressurized air ionization chamber to 8 atmospheres or 125 psi
Controls
ON/OFF and MODE
Automatic features
Auto-zeroing, auto-ranging, and auto-backlight
Power requirements
Two 9 V alkaline, 200 hours operation
Warm-up time
Less than two minutes for initial operation when the instrument is in equilibrium with ambient temperature
Display LCD analog/digital with backlight
Analog : 100 element bar graph 2.5 inch (6.4 cm) long. Bar graph is divided into five major segments, each labelled with the appropriate value for the range of the instrument
Digital: 2.5 digit display is followed by a significant zero digit depending on the operating range of the instrument. The units of measurement are indicated on the display at all times. Digits are 0.25 inches (6.4 mm) high. Low battery and freeze indicators are also provided on the display
Modes
Integrate mode: Operates continuously 30 seconds after the instrument has been turned on. Integration is performed even if the instrument is displaying in mR/h, R/h, µSv/h or mSv/h
Freeze mode: Will place a tick mark on the bar graph display to hold on the peak displayed value. The unit will continue to read and display current radiation values
Environmental
Temperature range: – 4º to 122º F (- 20° to 50° C)
Relative humidity: 0 to 100%
Geotropism: Negligible
Measurements
Dimensions 4 (w) x 8 (d) x 6 in (h) (10 x 20 x 15 cm) Weight 2.4 lb (1.07 kg)
