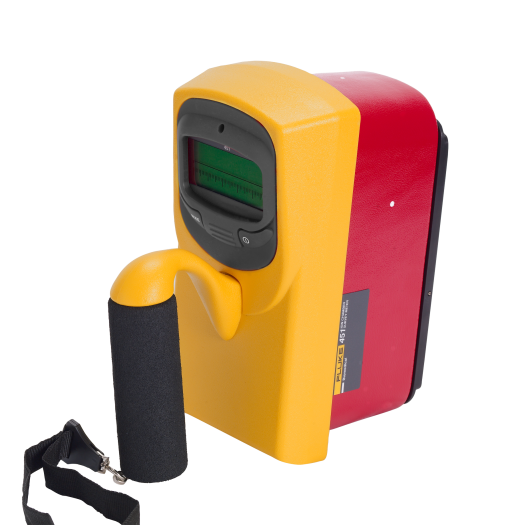

451B Ion Chamber Survey Meter with Beta Slide
Get fast response time to radiation with the 451B’s ionization chamber detector The 451B’s site surveying capabilities make it well-suited for a wide range of end users, and the ionization chamber detector allows for a fast response time
| Brand | |
|---|---|
| Model | 451B |
The auto-ranging 451B ion chamber survey meter measures radiation rate and accumulated dose from beta, gamma and x-ray radiation sources.
The 451B’s site surveying capabilities make it well-suited for a The auto-ranging 451B ion chamber survey meter measures radiation rate and accumulated dose from beta, gamma and x-ray radiation sources.
The 451B’s site surveying capabilities make it well-suited for a wide range of end users, including police and fire departments, x-ray manufacturers, government agencies, state inspectors, emergency response and HAZMAT teams, nuclear medicine labs, hospital radiation safety officers, and nuclear power workers.
Additionally, the low noise chamber bias supply provides for fast background settling time. A sliding beta shield serves as an equilibrium thickness for photon measurements and enables beta discrimination.

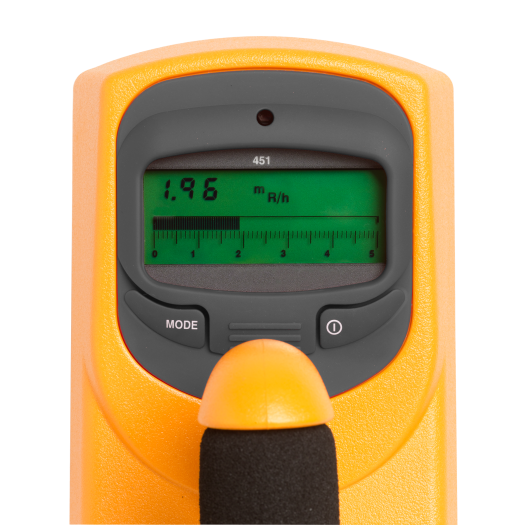

The digital display features an analog bar graph, 2.5-digit digital readout, low battery and freeze (“peak hold”) mode indicators, and an automatic backlight function.
User controls consist of an ON/OFF button and a MODE button. The RS-232 interface can be connected directly to a computer for use with the Excel add-in for Windows (451EXL), enhancing the functionality of the instrument.
This software allows for data retrieval, user parameter selection and provides a virtual instrument display with audible (requires sound card) and visual alarm indication.
Key Features
Measurement of rate and dose simultaneously, with the capability to record peak rate
Beta slide for beta detection
Auto-ranging and auto-zeroing
RS-232 communications interface with optional Windows-based Excel add-in for data logging
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Programmable flashing LCD display and audible alarm
Available with dose equivalent energy response (SI units) CE tested. Meets applicable standards
Radiation detected:
Alpha above 7.5 MeV, Beta above 100 keV, and Gamma above 7 keV
Operating ranges:
Sievert (Sv) Model Time
0 to 50 μSv/h 8 sec
0 to 500 μSv/h 2.5 sec
0 to 5 mSv/h 2 sec
0 to 50 mSv/h 2 sec
0 to 500 mSv/h 2 sec
Accuracy:
Within 10% of reading between 10% and 100% of full-scale indication on any range, exclusive of energy response. Calibration source is Cs
Detector:
Chamber: 349 cc volume air ionization
Chamber wall: 246 mg/cm2 thick phenolic
Chamber window: 6.6 mg/cm2 Mylar, protected by steel mesh, 46 cm2 detection area
Beta slide: 440 mg/cm2
451B-DE-SI: In order to achieve energy response consistent with measurements of H*(10) as required by ICR4-47, aluminum has been added to the back wall, 38% of the side wall area, and to the beta slide. With the Beta Shield open, the 451B can measure skin dose at 10* (0.07), and Deep Dose H* (10) with Beta shield closed.
Controls: ON/OFF and MODE
Automatic features: Auto-zeroing, auto-ranging, and auto-back
Typical Response time:
Sievert (SI) Model Time
0 to 50 μSv/h 8 sec
0 to 500 μSv/h 2.5 sec
0 to 5 mSv/h 2 sec
0 to 50 mSv/h 2 sec
0 to 500 mSv/h 2 sec
Power requirements: Two 9 V alkaline, 200 hours operation
Warm-up time: One minute
Modes:
Integrate mode: Operates continuously 30 seconds after the instrument has been turned on. Integration is performed even if the instrument is displaying in mR/h, R/h, µSv/h or mSv/h
Freeze mode: Will place a tick mark on the bar graph display to hold on the peak displayed value. The unit will continue to read and display current radiation values
Display: LCD analog/digital with backlight
Analog: 100 element bar graph 6.4 cm long. Bar graph is divided into 5 major segments, each labeled with the appropriate value for the range of the instrument
Digital: 2.5 digit display is followed by a significant zero digit depending on the operating range of the instrument. The units of measurement are indicated on the display at all times. Digits are 0.25 in (6.4 mm) high. Low battery and freeze indicators are also provided on the display
Environmental:
Temperature range – 4º to + 158º F (- 20° to + 70° C)
Relative humidity 0 to 100% (@140° F or + 60° C)
Geotropism: Less than 1%
Dimensions: 4 (w) x 8 (d) x 6 in (h) (10 x 20 x 15 cm) Weight: 2.5 lb (1.11 kg)
Features
Key Features
Measurement of rate and dose simultaneously, with the capability to record peak rate
Beta slide for beta detection
Auto-ranging and auto-zeroing
RS-232 communications interface with optional Windows-based Excel add-in for data logging
Ergonomic, anti-fatigue handle with replaceable grip, wrist strap and tripod mount
Programmable flashing LCD display and audible alarm
Available with dose equivalent energy response (SI units) CE tested. Meets applicable standards
Specifications
Radiation detected:
Alpha above 7.5 MeV, Beta above 100 keV, and Gamma above 7 keV
Operating ranges:
Sievert (Sv) Model Time
0 to 50 μSv/h 8 sec
0 to 500 μSv/h 2.5 sec
0 to 5 mSv/h 2 sec
0 to 50 mSv/h 2 sec
0 to 500 mSv/h 2 sec
Accuracy:
Within 10% of reading between 10% and 100% of full-scale indication on any range, exclusive of energy response. Calibration source is Cs
Detector:
Chamber: 349 cc volume air ionization
Chamber wall: 246 mg/cm2 thick phenolic
Chamber window: 6.6 mg/cm2 Mylar, protected by steel mesh, 46 cm2 detection area
Beta slide: 440 mg/cm2
451B-DE-SI: In order to achieve energy response consistent with measurements of H*(10) as required by ICR4-47, aluminum has been added to the back wall, 38% of the side wall area, and to the beta slide. With the Beta Shield open, the 451B can measure skin dose at 10* (0.07), and Deep Dose H* (10) with Beta shield closed.
Controls: ON/OFF and MODE
Automatic features: Auto-zeroing, auto-ranging, and auto-back
Typical Response time:
Sievert (SI) Model Time
0 to 50 μSv/h 8 sec
0 to 500 μSv/h 2.5 sec
0 to 5 mSv/h 2 sec
0 to 50 mSv/h 2 sec
0 to 500 mSv/h 2 sec
Power requirements: Two 9 V alkaline, 200 hours operation
Warm-up time: One minute
Modes:
Integrate mode: Operates continuously 30 seconds after the instrument has been turned on. Integration is performed even if the instrument is displaying in mR/h, R/h, µSv/h or mSv/h
Freeze mode: Will place a tick mark on the bar graph display to hold on the peak displayed value. The unit will continue to read and display current radiation values
Display: LCD analog/digital with backlight
Analog: 100 element bar graph 6.4 cm long. Bar graph is divided into 5 major segments, each labeled with the appropriate value for the range of the instrument
Digital: 2.5 digit display is followed by a significant zero digit depending on the operating range of the instrument. The units of measurement are indicated on the display at all times. Digits are 0.25 in (6.4 mm) high. Low battery and freeze indicators are also provided on the display
Environmental:
Temperature range – 4º to + 158º F (- 20° to + 70° C)
Relative humidity 0 to 100% (@140° F or + 60° C)
Geotropism: Less than 1%
Measurements
Dimensions: 4 (w) x 8 (d) x 6 in (h) (10 x 20 x 15 cm) Weight: 2.5 lb (1.11 kg)
