RaySafe X2 – X-Ray Test Meter

At your fingertips

We have grown accustomed to intuitive interactions with our devices. After all, it is not the device that is most important, but what you can achieve with it that matters. Simplicity has always been a hallmark for RaySafe. But simplicity on the outside requires a lot of work on the inside. Our simplicity comes from a careful balance of advanced sensor technology paired with electronic wizardry and intelligent signal processing. The result – an X-ray test device that provides accurate measurements with the ultimate user-friendliness. Right at your fingertips.

Less effort. More insight.

Positioning sensors, choosing settings, and interpreting results can be tedious work. Your time is precious and there is little room for unnecessary steps in taking a measurement. Fortunately, the X2 R/F and MAM sensors are orientation independent so the only thing you need to do is to place it in the X-ray beam and turn on the instrument. The rest is automatic – no menus, no selections.

Full range measurements

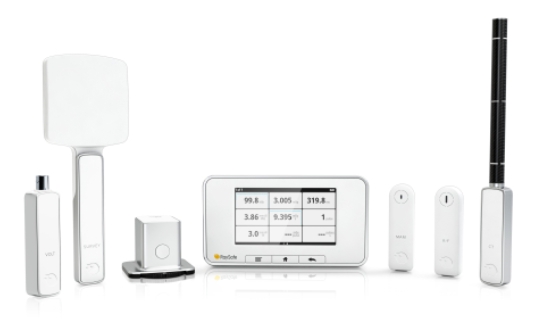

Ease-of-use means you get everything you need in one exposure, with one sensor – automatically. The RaySafe X2 offers sensors for radiography, fluoroscopy, mammography, computed tomography, tube current, voltage, survey, and even light applications. Choose the sensors you need and add the ones you will need at a later stage. The X2 sensors are made without the need to select ranges or special modes. Most sensors also measure waveforms that can be analyzed directly on the base unit.

Intuitive interface and first-class precision

The RaySafe X-ray test equipment and X-ray QA test tools are specifically designed to minimize the need for user interaction. A groundbreaking concept in sensor design and circuitry provides unsurpassed accuracy, reproducibility, and sensitivity. Intelligent algorithms indicate when a parameter is outside its specified range. Finally, a built-in, self-test ensures your system is in complete working order. This provides added peace of mind and further assures accurate measurements the first time and every time.

Finding your way

The RaySafe X2 touch screen interface allows the user to view data in a comprehensive, yet flexible way. The home screen displays every available parameter from the attached sensor. To zoom in on any parameter, just tap it for a larger view. Use a quick swipe to display waveforms, and pinch to zoom into details. Navigation is made simple by using common Menu, Home and Back keys. All exposures are saved in the base unit. In each session, you can swipe to quickly go back to previous exposures for reference or comparison. A full session of measurements can be uploaded to the RaySafe View software at a later stage for additional data analysis.

All exposure data are saved in the X2 Base Unit. In each session, you can swipe to view measurement data from previous exposures for reference or comparison. A full session of measurements can easily be uploaded onto a PC at a later stage with help of the RaySafe View software.
