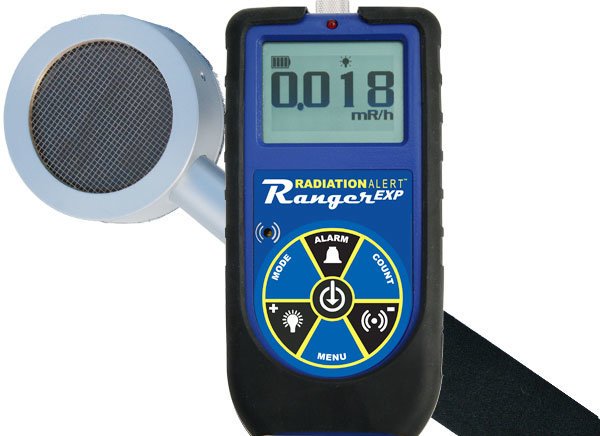

Ranger EXP Radiation Monitor
The Ranger EXP is a high performance, lightweight radiation detector for field use or in your facility. The small, handheld Geiger counter offers excellent sensitivity to NORM and low levels of alpha, beta, gamma, and x-rays.
| Brand | |
|---|---|
| Model | EXP |
The Ranger EXP is a high performance, lightweight radiation detector for field use or in your facility.
The small, handheld Geiger counter offers excellent sensitivity to NORM and low levels of alpha, beta, gamma, and x-rays.
The digital readout is displayed with a red count light and a beeper sounds with each count detected. Other features include an adjustable timer, selectable alert, and with the free Observer USB Software Family, you can download your collected data, and set alarms!
Internal memory and the free Observer USB Software (Windows® only) allow you to download your data, and set computer alarms.
With the optional Blue Tooth module, you can download Free Radiation Alert® Observer BLE app from the Google App Store, where you can display the readings from your detector on your android device, label sample readings and descriptions, take timed counts, append GPS data and send your saved survey file. Alarms set on the instrument will also activate on your android device.
Applications & Uses: Surveying for NORM (Naturally Occurring Radioactive Material) contamination, Gross wipe counting, Contamination surveys of packages, equipment, people, etc., Regulatory inspections, Scrap Metal Screening, Low energy radionuclide detection
Specifications
Detector
External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.77 in.).
Operating Range
mR/hr – .001 (1µR) to 100
CPM – 0 to 350,000
µSv/hr – .01 to 1000
CPS – 0 to 5000
Total Counts- 1 to 9,999,000 counts

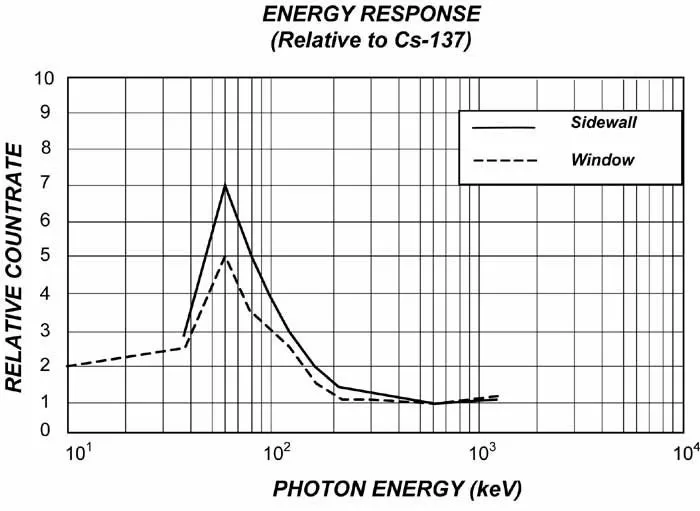

Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma and X-rays down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.
Built-in Efficiencies
Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha
Display
Graphic LCD with Backlight
Anti Saturation
Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.
Averaging Periods
This radiation detector display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.
Outputs
USB for use with Free Observer USB Software for PCs Bluetooth Option additional: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App
Count Light
Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Power Requirements
USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.
Accuracy
Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional
Selectable Alert Settings
mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.
Temperature Range
-10° to +50°C (14° to 122°F)
Humidity
10% to 70% Non-Condensing.
Size 140 X 68 X 33 mm
Probe: 260 X 70 X 25 mm
Weight 570 g
Features
Internal memory and the free Observer USB Software (Windows® only) allow you to download your data, and set computer alarms.
With the optional Blue Tooth module, you can download Free Radiation Alert® Observer BLE app from the Google App Store, where you can display the readings from your detector on your android device, label sample readings and descriptions, take timed counts, append GPS data and send your saved survey file. Alarms set on the instrument will also activate on your android device.
Applications & Uses: Surveying for NORM (Naturally Occurring Radioactive Material) contamination, Gross wipe counting, Contamination surveys of packages, equipment, people, etc., Regulatory inspections, Scrap Metal Screening, Low energy radionuclide detection
Specifications
Specifications
Detector
External Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.77 in.).
Operating Range
mR/hr – .001 (1µR) to 100
CPM – 0 to 350,000
µSv/hr – .01 to 1000
CPS – 0 to 5000
Total Counts- 1 to 9,999,000 counts
Energy Sensitivity
Detects Alpha down to 2 MeV. Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma and X-rays down to 10 KeV through the detector window. 3340 CPM/mR/hr (137Cs). Smallest detectable level for 125I is .02 µCi at contact.
Built-in Efficiencies
Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha
Display
Graphic LCD with Backlight
Anti Saturation
Meter will hold at OVER RANGE in fields as high as 100 times the maximum reading.
Averaging Periods
This radiation detector display updates every 3 seconds. At low background levels, the update is the average for the past 30-second time period. The timed period for the average decreases as the radiation level increases.
Outputs
USB for use with Free Observer USB Software for PCs Bluetooth Option additional: Wirelessly connects the instrument with an Android mobile device for use with Free Observer BLE App
Count Light
Red LED flashes with each radiation event.
Audio Indicator
Internally mounted beeper (can be switched off for silent operation)
Power Requirements
USB Power or Two (2) AA alkaline batteries (included). Approx. 800 hrs @ background.
Accuracy
Reference to Cs137
Typically ±15% from factory, ±10% with NIST Source Calibration NIST Calibration Additional
Selectable Alert Settings
mR/hr .001 – 100 and CPM 1 – 350,000. Pulsating beeper sounds the alert. Adjustable alert levels are used for mR/hr / CPM, and µSv/hr / CPS. 70db @ 1m. Alarm will sound when in Timer Mode when set alarm threshold is reached.
Temperature Range
-10° to +50°C (14° to 122°F)
Humidity
10% to 70% Non-Condensing.
Measurements
Size 140 X 68 X 33 mm
Probe: 260 X 70 X 25 mm
Weight 570 g
