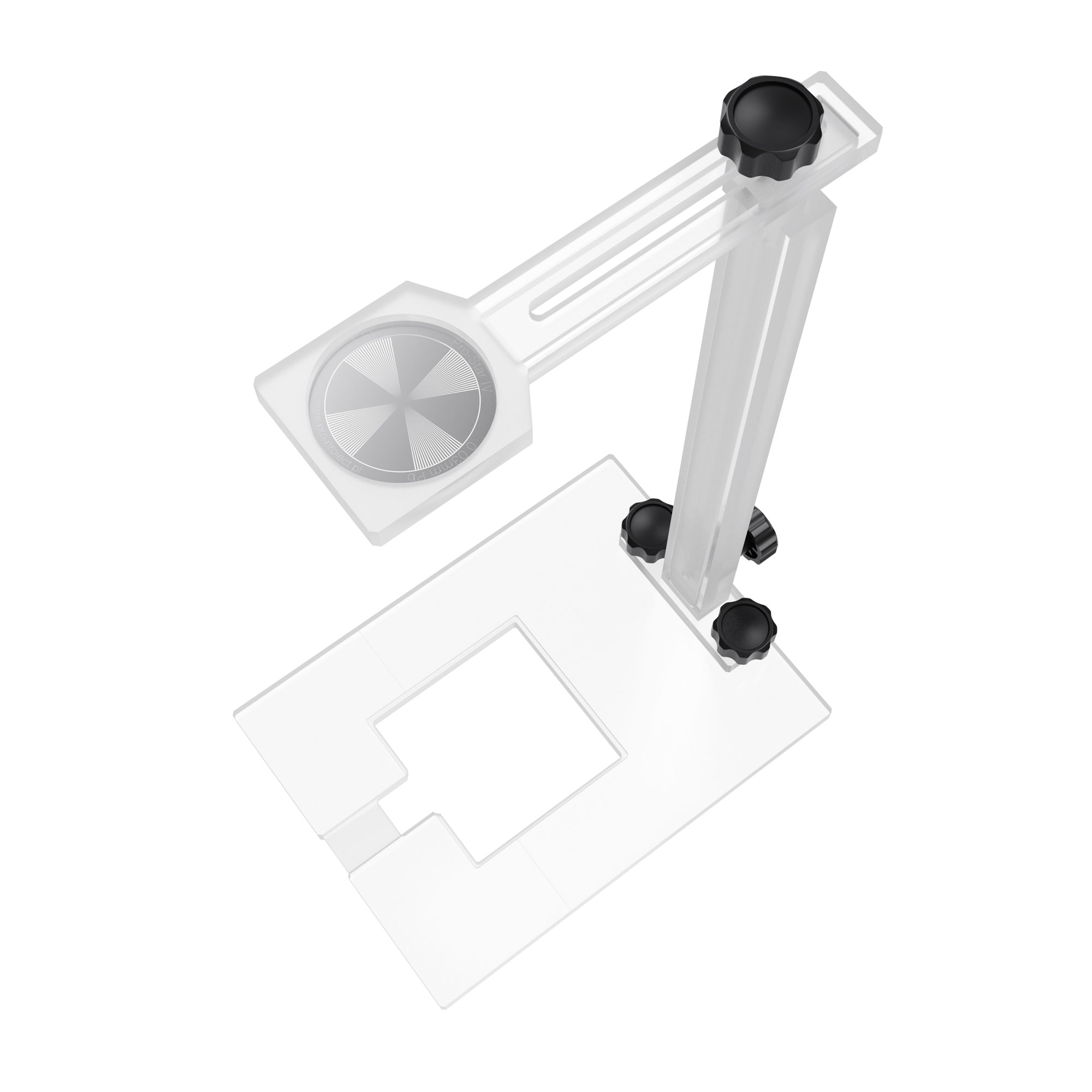

With Pro-Star test Patterns focal spot size can be determined by observing the regions of blurring which occur when the pattern is radiographed by an x-ray source of finite dimensions. Radiation from different areas of the focal spot will cause a periodic blurring of the pattern due to penumbra effects. Knowledge of the geometric factors, and the distance from the centre of the pattern to the region where blurring occurs, will permit the calculation of the focal spot size with the same accuracy as measurements made with a pinhole camera.
Product features:
complies with:
- IEC 60336:2005
- IEC 61223-3-1, 2, 4
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
Dimension: 55 mm diameter
The following versions are available

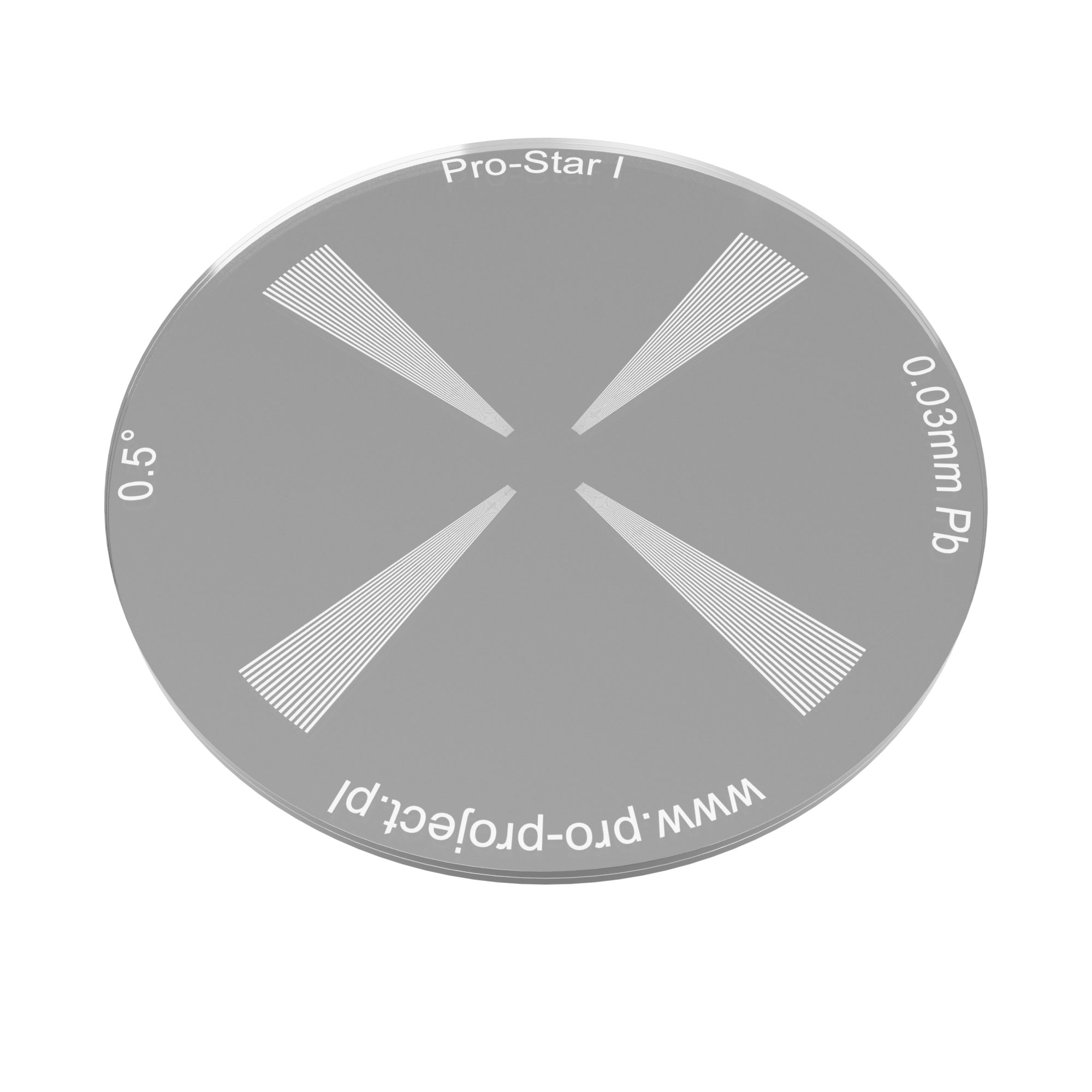

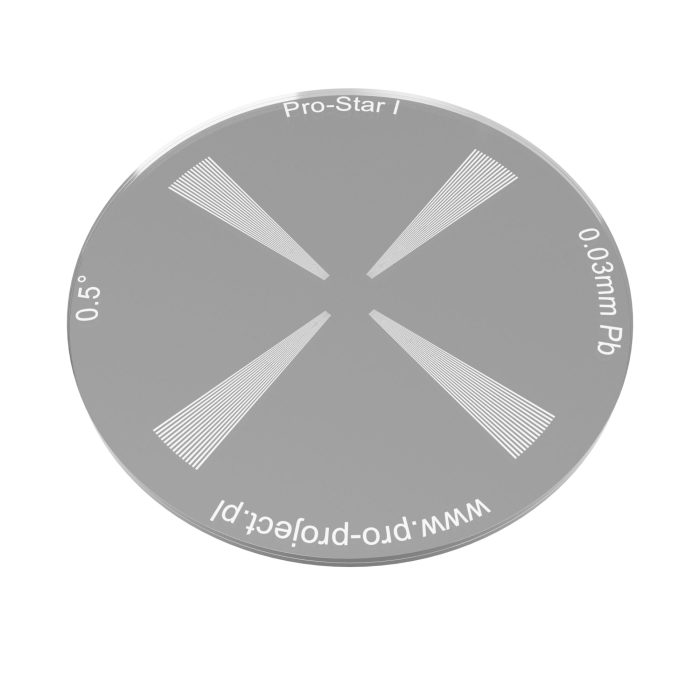

– I: For measuring focal spots from 0.1 to 0.3 mm. It has four 15° patterned sectors with a 0.5° angle of a single line within a sector. Lead-foil thickness: 0.03 mm
– II: For measuring focal spots from 1 mm and up. It has four 45° sectors with a 2° angle of a single line within a sector. Lead-foil thickness: 0.05 mm
– III: For measuring focal spots from 0.3 to 0.6 mm. It has four 28° patterned sectors with a 1° angle of a single line within a sector. Lead-foil thickness 0.03 mm

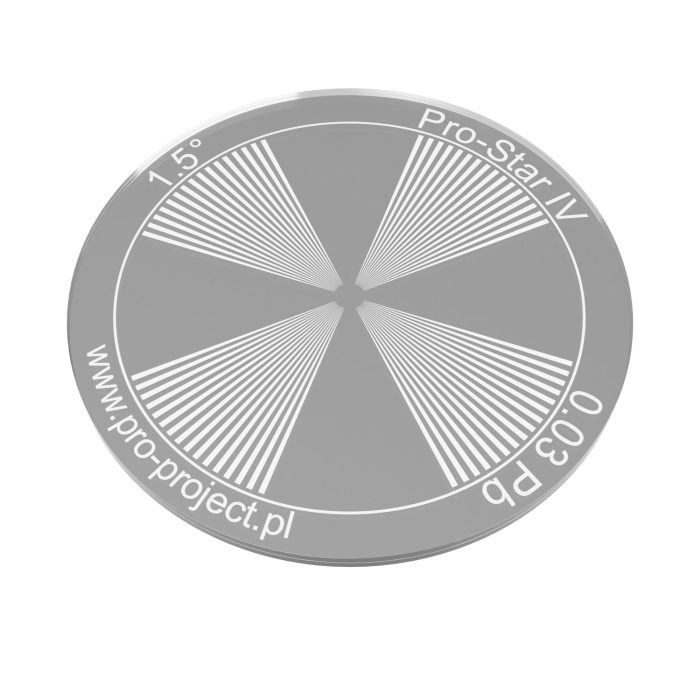

– IV: For measuring focal spots from 0.8 to 1.5 mm. It has four 35° patterned sections with a 1.5° angle of a single line within a sector. Lead-foil thickness 0.03 mm
– V: For measuring focal spots from 0.1 to 0.3 mm. It has four 45° patterned sectors with a 0.5° angle of a single line within a sector. Lead-foil thickness: 0.03 mm
– VI: For measuring focal spots from 0.1 to 0.3 mm. It has four 15° patterned sectors with a 25° angle of a single line within a sector. Lead-foil thickness: 0.03 mm

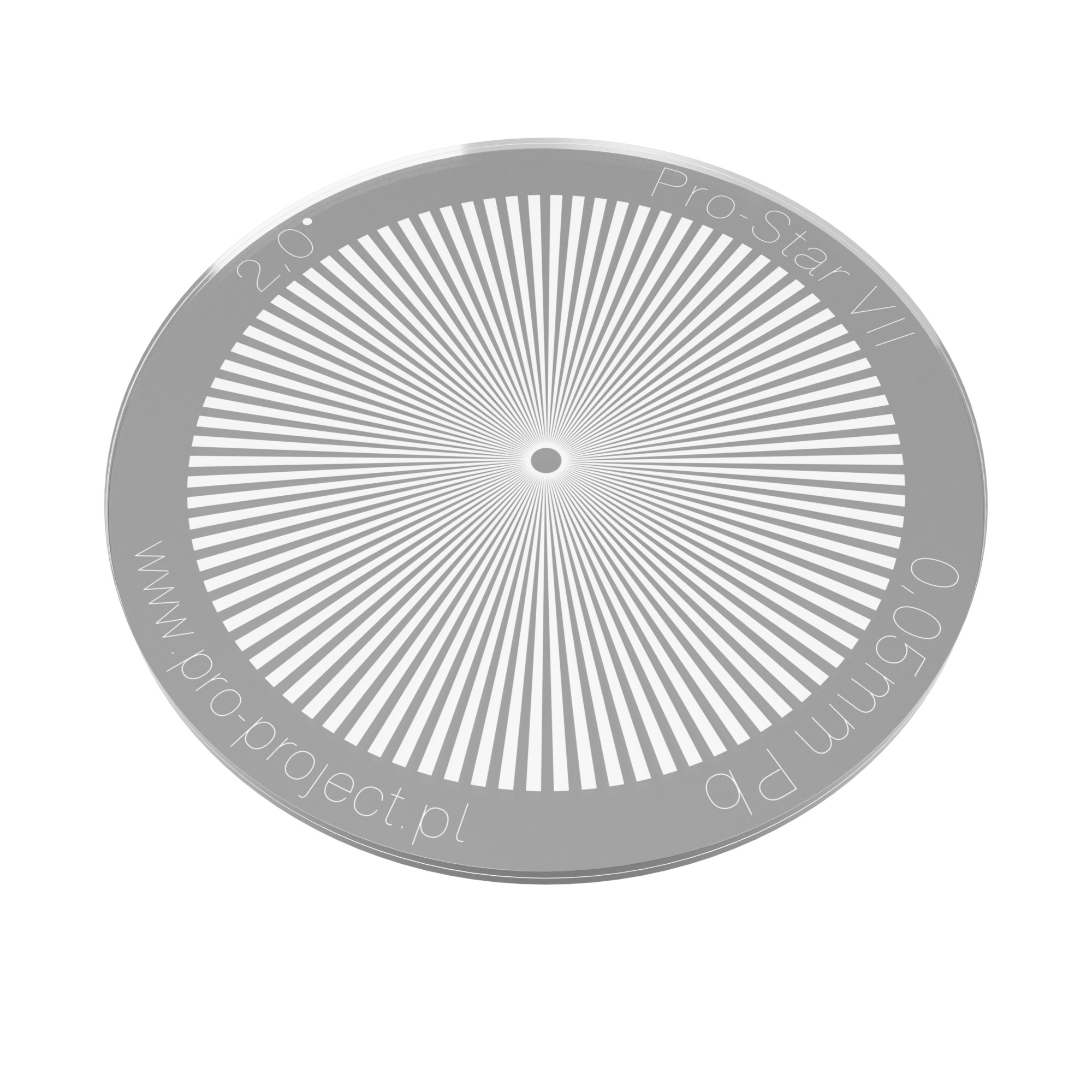

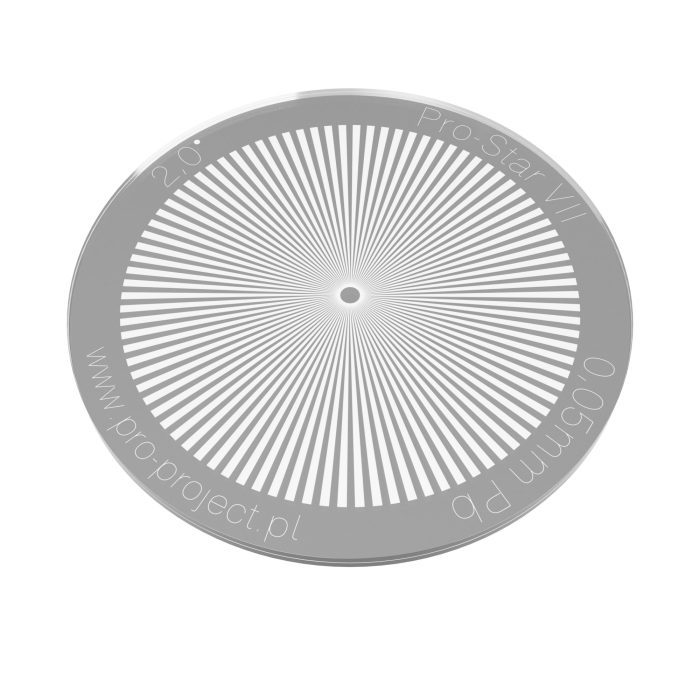

– VII: For measuring focal spots from 1 mm and up. It has one 360° patterned sector with a 2° angle of a single line within a sector. Lead-foil thickness 0.05 mm
PRO05-601 - Pro-Star version I
PRO05-602 - Pro-Star version II
PRO05-603 - Pro-Star version III
PRO05-604 - Pro-Star version IV
PRO05-605 - Pro-Star version V
PRO05-606 - Pro-Star version VI
PRO05-607 - Pro-Star version VII
