Pro-RF PRO Kit (Radiographic and Fluroscopy Testing and Commissioning)

This kit is a versatile set of phantoms and software for carrying out acceptance and constancy tests of radiography and fluoroscopy units.

Brand

Model

Pro-RF PRO kit

Code

PRO02-012

Add to Quote

This kit is a versatile set of phantoms and software for carrying out acceptance andconstancy tests of radiography and fluoroscopy units. Thanks to the Diagnomatic subscription, all tests can be quickly and effortlessly automatically analysed online.

Features

Complies with:

  • IEC 61223-3-1
  • DIN 6868-150
  • CE certified
  • the manual provides detailed guidelines for carrying out each test, results assessment and registration

Specifications

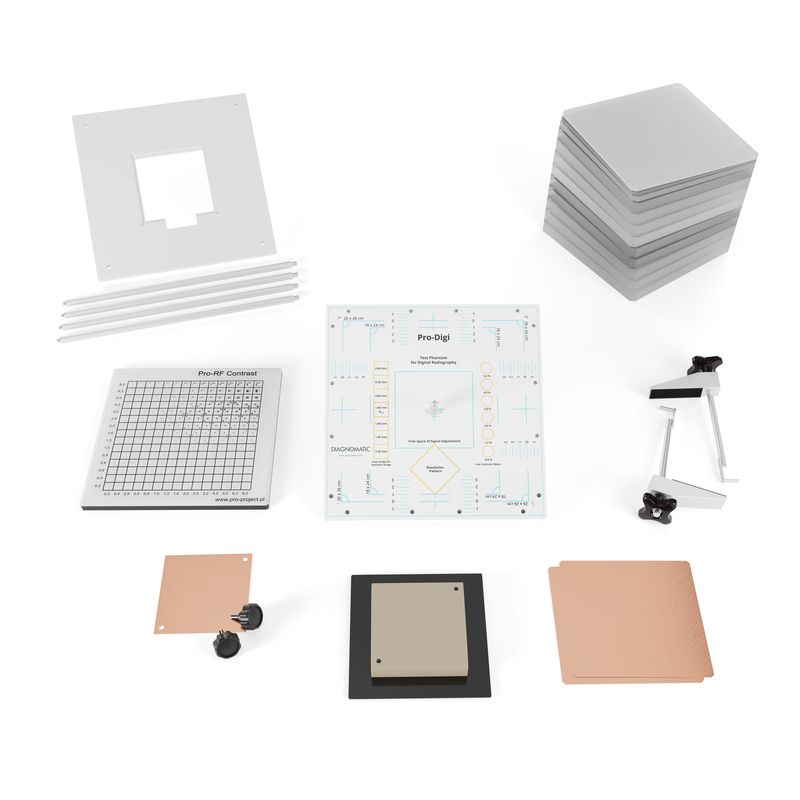

‍Standard kit configuration:

  • Pro-Fluo 150
  • Pro-RF Al 25
  • Pro-RF Rack
  • Pro-RF Stand
  • Pro-RF AEC Cu
  • Pro-RF AEC PMMA (02-221)
  • Pro-RF Contrast (02-109)
  • Diagnomatic PRO annual subscription
  • Carrying case with dedicated foam inlay

Measurements

The kit can be used to measure:

  • Collimation/beam alignment
  • Position and size of the effective radiation field
  • Dynamic range
  • Spatial resolution
  • Contrast resolution
  • Homogeneity
  • AEC tests
  • CNR, SNR
  • Contrast details
  • Dose reproducibility
  • Focal spot size
