The PET scatter phantom is an acceptance testing tool used to determine the imaging systems relative sensitivity to scatter radiation. It can be used to measure the effects of dead-time and the effects of random events generated at different levels of activity of the line source.

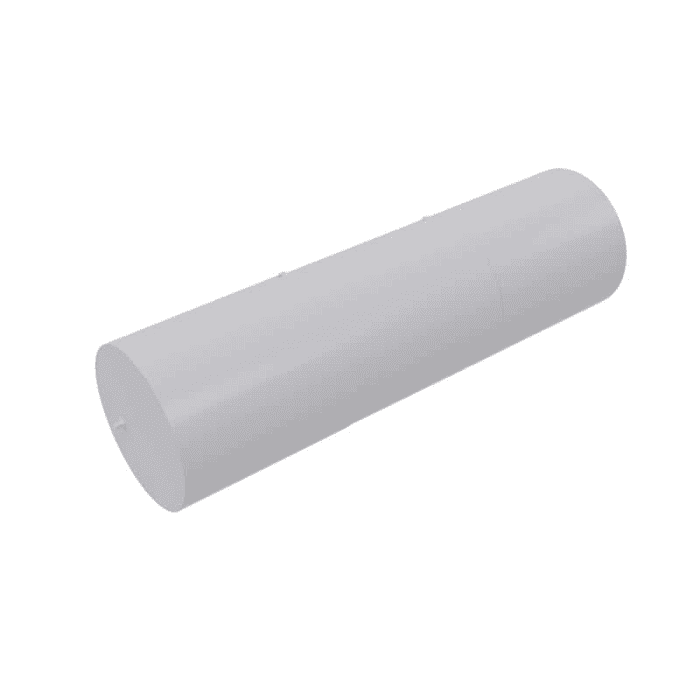

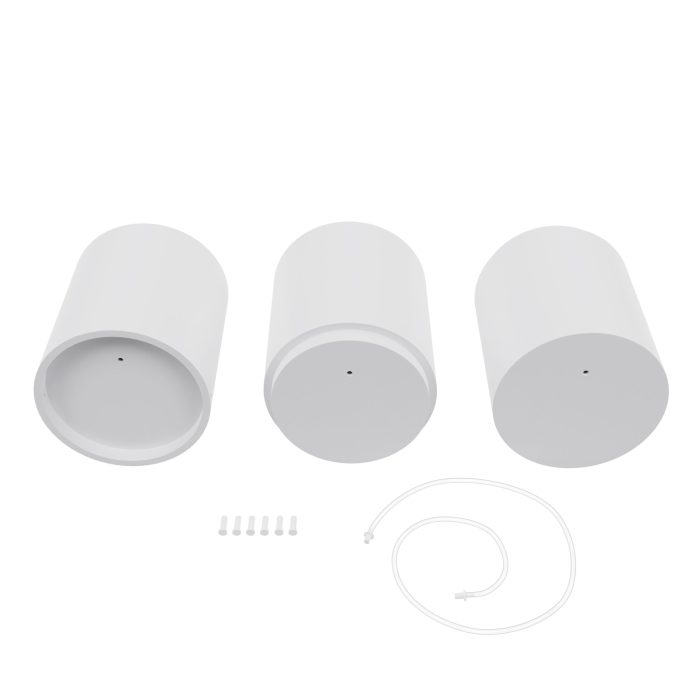

The test phantom is a right circular cylinder composed of polyethylene. For ease of handling, it consists of 3 segments that are assembled together during testing. A hole is drilled parallel to the central axis of the cylinder, at a radial distance of 45 mm.
Product features:
complies with:
– NEMA Standard (NU 2-2007)
– NEMA 2012 Standard
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
cylinder
– outside diameter: 203 mm
– length: 700 mm
– hole diameter: 6.4 mm
– hole offset from the central axis: 45 mm
line source
– outside diameter: 4.8 mm
– length: 800 mm
– inside diameter: 3.2 mm
carrying case
Features
Product features:
complies with:
– NEMA Standard (NU 2-2007)
– NEMA 2012 Standard
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Technical data (can be modified to customer specifications):
cylinder
– outside diameter: 203 mm
– length: 700 mm
– hole diameter: 6.4 mm
– hole offset from the central axis: 45 mm
line source
– outside diameter: 4.8 mm
– length: 800 mm
– inside diameter: 3.2 mm
carrying case
