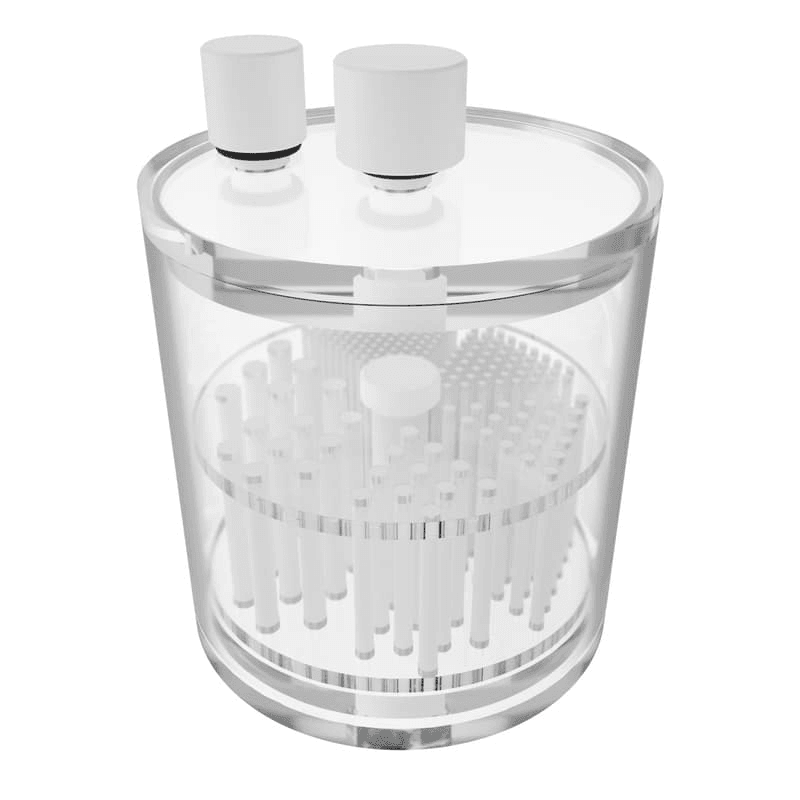

The phantom for performance evaluation of small animal systems or ultra-high resolution ECT systems. It can be used to evaluate: center-of-rotation error, non-uniformity artifacts and spatial resolution. Available in two sizes for FOV at least 45 mm or 75 mm.
Product features:
complies with:
– NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
– AAPM Report No. 9 – Computer Aided Scintillation Camera Acceptance Testing
– AAPM Report No. 22 – Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
– ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
at least 75 mm FOV version:
main cylinder:
– outside cylinder diameter: 80 mm
– inside cylinder diameter: 74 mm
– inside cylinder height: 65 mm

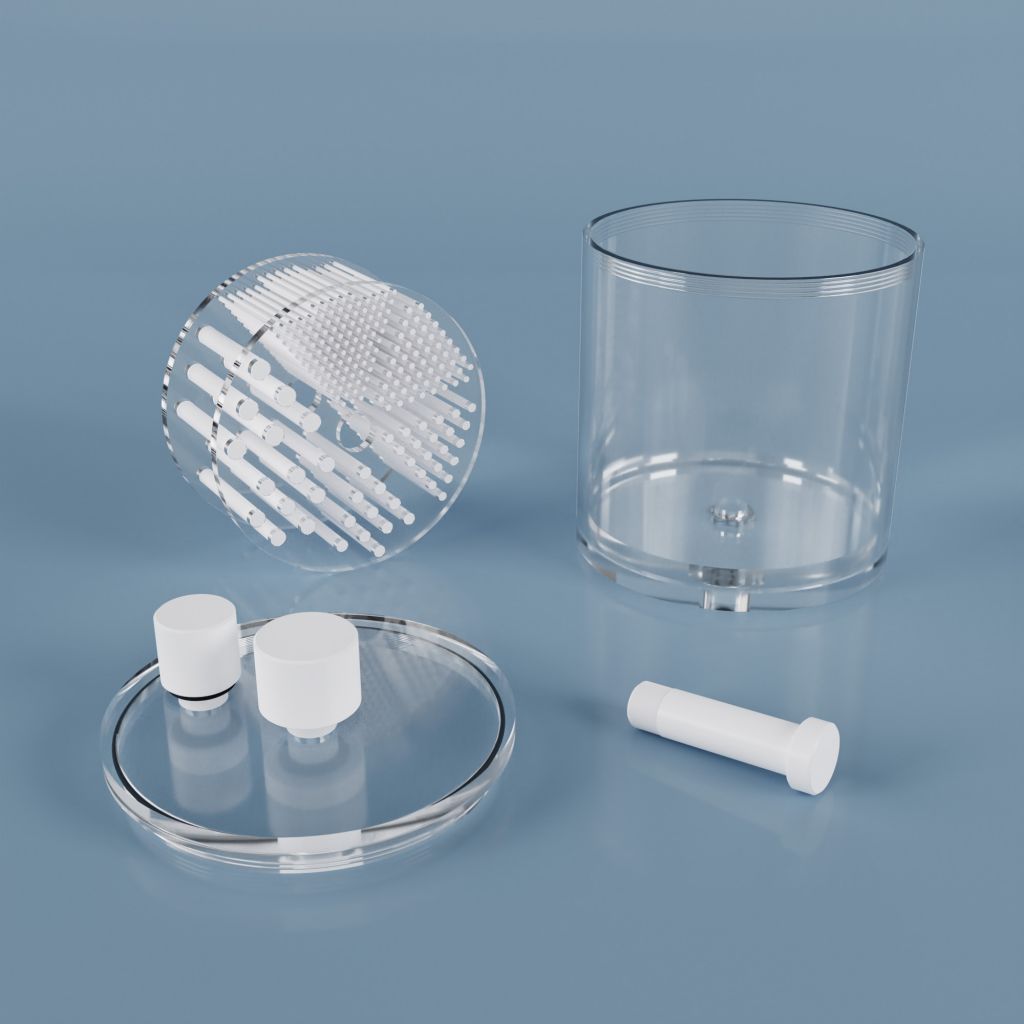

cold rods insert:
– rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
– height of rods: 34 mm
at least 45 mm FOV version:
main cylinder:
– outside cylinder diameter: 50 mm
– inside cylinder diameter: 45 mm
– inside cylinder height: 65 mm
cold rods insert:
– rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
– height of rods: 34 mm
optional carrying case
Features
Product features:
complies with:
– NEMA Standards Publication (NU 1-2001) Performance Measurements of Scintillation Cameras
– AAPM Report No. 9 – Computer Aided Scintillation Camera Acceptance Testing
– AAPM Report No. 22 – Rotating Scintillation Camera SPECT Acceptance Testing and Quality Control
– ACR–SNM (Res. 5 – 2011) technical standard for diagnostic procedures using radiopharmaceuticals
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Technical data (can be modified to customer specifications):
at least 75 mm FOV version:
main cylinder:
– outside cylinder diameter: 80 mm
– inside cylinder diameter: 74 mm
– inside cylinder height: 65 mm
cold rods insert:
– rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
– height of rods: 34 mm
at least 45 mm FOV version:
main cylinder:
– outside cylinder diameter: 50 mm
– inside cylinder diameter: 45 mm
– inside cylinder height: 65 mm
cold rods insert:
– rod diameters: 1.2, 1.6, 2.4, 3.2, 4.0 and 4.8 mm
– height of rods: 34 mm
optional carrying case
