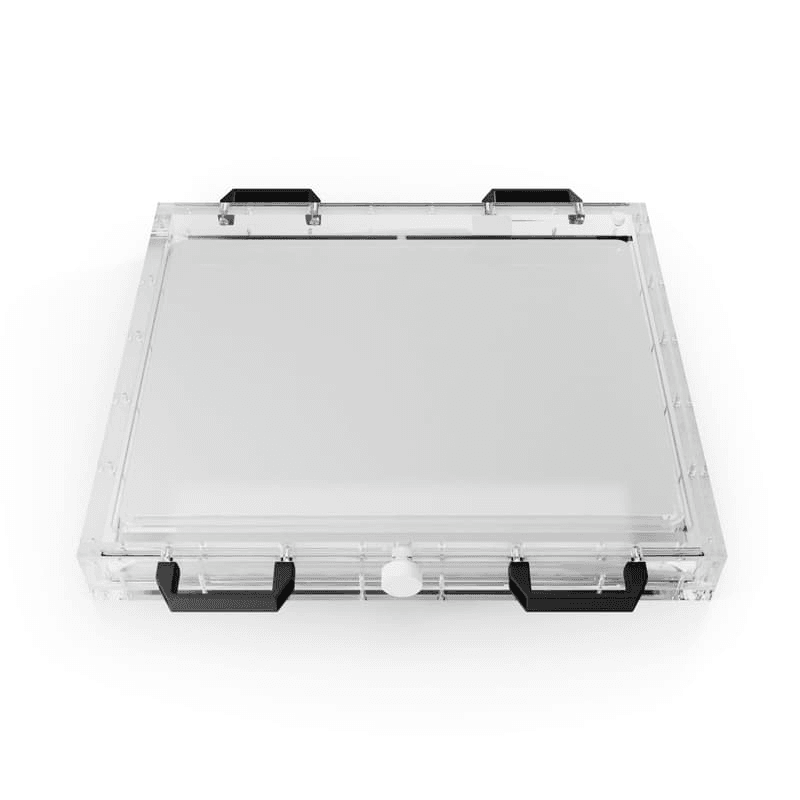

The Pro-NM AutoFlood is dedicated for weekly inhomogeneity and sensitivity control and acquisition of correction matrices, according to revised Guideline on Radiation Protection in Medicine. Regarding its dimensions the Pro-NM AutoFlood corresponds to DIN 6855, Part 2. It contains a mixing system with built-in pump. Due to its special composite design, deformation of the measuring areas is avoided by permanent water contact.
Product features:
fully automatic mixing with integrated circulation pump
including air chambers for pressure compensation
compact, closed system
measuring areas made of glass/acrylic glasscomposite design
optional positioning cart for different camera systems
Product features:
complies with:
-DIN 6855, Part 2
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
Dimension of the cuvette [mm]: 545 x 630 x 80
Dimension with attachment parts [mm]: 635 x 630 x 90
Filling quantity approx. [liters]: 12
Weight empty approx. [kg]: 21
Operation weight approx. [kg]: 31
Eff. field of view [mm]: 400 x 540
Total field of view [mm]: 440 x 580
Material in measuring range: 20 mm acrylic glass/glass
Measuring accurarcy according to DIN: 1%
Filling medium: distilled water
Power Supply: low voltage (12V wall plug transformer)
Mixing time: 4 minutes
Operation temperature: 15° C – 25°
Features
Product features:
fully automatic mixing with integrated circulation pump
including air chambers for pressure compensation
compact, closed system
measuring areas made of glass/acrylic glasscomposite design
optional positioning cart for different camera systems
Product features:
complies with:
-DIN 6855, Part 2
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Technical data (can be modified to customer specifications):
Dimension of the cuvette [mm]: 545 x 630 x 80
Dimension with attachment parts [mm]: 635 x 630 x 90
Filling quantity approx. [liters]: 12
Weight empty approx. [kg]: 21
Operation weight approx. [kg]: 31
Eff. field of view [mm]: 400 x 540
Total field of view [mm]: 440 x 580
Material in measuring range: 20 mm acrylic glass/glass
Measuring accurarcy according to DIN: 1%
Filling medium: distilled water
Power Supply: low voltage (12V wall plug transformer)
Mixing time: 4 minutes
Operation temperature: 15° C – 25°
