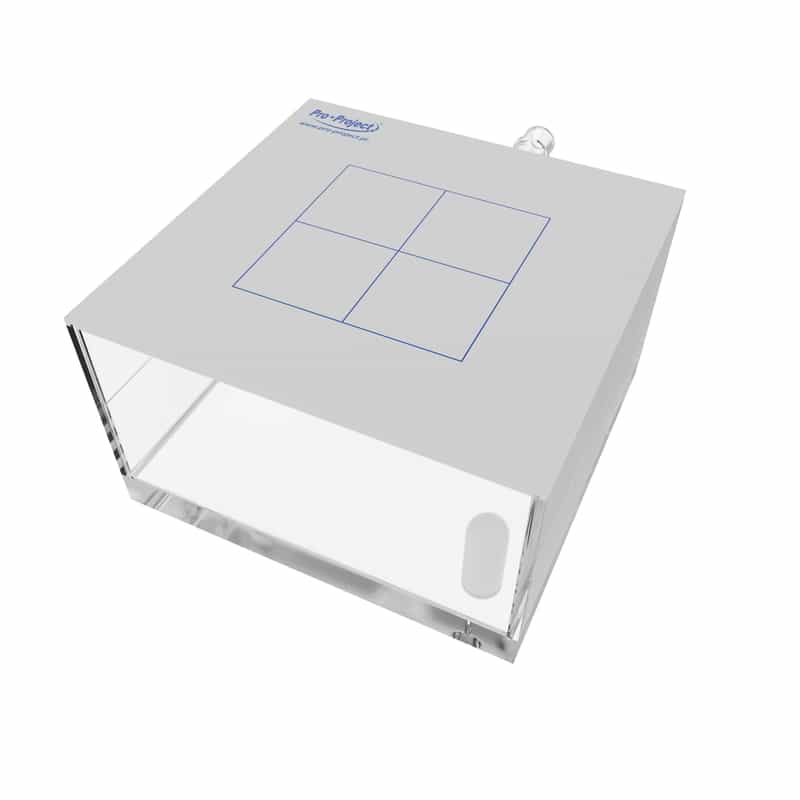

The stationary water phantom for high energy photon dosimetry with all types of ionization chambers.
Product features: complies with: IAEA Technical Reports Series No. 398 IAEA Technical Reports Series No. 430 IAEA Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems (IAEA-TECDOC-1540) CE certified the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications): dimensions: 200 x 200 x 110 mm cover made of PMMA solid construction ensures durability and no leaks entrance wall made of milky / opaque 3 mm thick PMMA fixed measuring depth at 50 mm positioning markers on the top and side surfaces phantom can be filled with water through a seal plug – a funnel is provided to facilitate the process two elastic extension vessels compensate changes of the water volume caused by ambient temperature changes well fitted holders are available for different chamber types chamber holders can be interchanged (option) heavy duty carrying case
Features
Product features: complies with: IAEA Technical Reports Series No. 398 IAEA Technical Reports Series No. 430 IAEA Specification and Acceptance Testing of Radiotherapy Treatment Planning Systems (IAEA-TECDOC-1540) CE certified the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Technical data (can be modified to customer specifications): dimensions: 200 x 200 x 110 mm cover made of PMMA solid construction ensures durability and no leaks entrance wall made of milky / opaque 3 mm thick PMMA fixed measuring depth at 50 mm positioning markers on the top and side surfaces phantom can be filled with water through a seal plug – a funnel is provided to facilitate the process two elastic extension vessels compensate changes of the water volume caused by ambient temperature changes well fitted holders are available for different chamber types chamber holders can be interchanged (option) heavy duty carrying case
