Pro-DigiMAM (Mammo QA – Modular Phantom)
This versatile phantom can be used for monitoring technical parameters of digital mammography imaging systems according to the requirements of the ”European Guidelines for Quality Assurance in Mammography Screening” and IEC 61223-3-2.
| Brand | |
|---|---|
| Model | Pro-DigiMAM |
| Code | PRO03-30X |
This versatile phantom can be used for monitoring technical parameters of digital mammography imaging systems according to the requirements of the ”European Guidelines for Quality Assurance in Mammography Screening” and IEC 61223-3-2.
It can be used to test:
optical density / luminance in the reference point
spatial resolution
threshold contrast visibility
contrast
effective radiation field
automatic exposure timer
CNR, SNR
NPS
MTF
ghosting
filaments
artefacts evaluation
geometric distortion check
contrast details

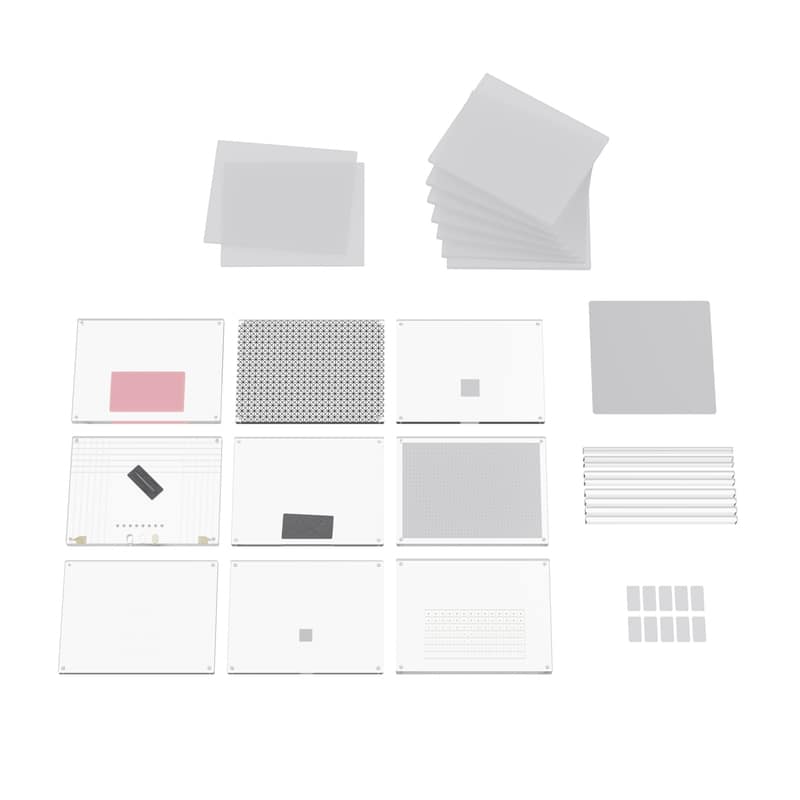

MODELS
PRO03-301 – basic model (03-303 + 03-310 + 03-311)
PRO03-302 – complete set (03-303 to 03-318, without 03-312, 03-313)
https://www.diagnomatic.com/devices/pro-digimam
Product features:
complies with:
– IEC 61223-3-2
– ”European Guidelines for Quality Assurance in Mammography Screening” plus supplement
– Protocolfor the Quality Control of the Physical and Technical Aspects of Digital BreastTomosynthesis Systems – EUREF
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Main module (03-303)
Pro-DigiMAM Main module
Set of PMMA attenuation plates: 6x 10 mm thick and 2x 5 mm thick; one plate contains marking of the reference point.
CNR module (03-311)
Pro-DigiMAM CNR module
10 mm thick module containing a 20 x 20 x 0.2 mm aluminium filter, located 6 cm from the chest side
Contrast detail module (03-309)
Pro-DigiMAM Contrast detail module
20 mm thick module containing gold (99.99%) discs organized in a 7×14 matrix (diameter x thickness).
Discs have the following diameters: 0.1, 0.25, 0.5, 0.75, 1.0, 1.5, 2.0 mm and 14 thicknesses ranging from 0.03 to 2.0 μm.
Thickness accuracy: 1 nm (0.001 μm), diameter accuracy 0.001 mm (1 μm).
Ghosting module (03-304)
Pro-DigiMAM Ghosting module
10 mm thick module containing a 30 x 30 x 0.1 mm aluminium filter for a ghost test
Resolution and geometry module (03-310)
Pro-DigiMAM Resolution and geometry module
10 mm thick module containing:
pattern for the line pair resolution evaluation (from 1,5 to 20,0 LP/mm) rotated 45°
8 low contrast objects (ø5.5 mm and depth from 0.1 mm to 0.45 mm)
3 objects of a different absorption level
pattern for evaluation of the effective radiation field
MTF module (03-305)
Pro-DigiMAM MTF module
10 mm thick module containing a straight stainless steel edge accurate to ±2 μm at a 3° angle
Artefacts evaluation module (03-307)
Pro-DigiMAM Artefact evaluation module
10 mm thick module containing a mesh for artefacts evaluation
Filaments module (03-306)
Pro-DigiMAM Filaments module
10 mm thick module containing 6 groups of multi-directional filaments 0.40 mm to 0.20 mm in diameter
Dynamic range module (03-320)
Pro-DigiMAM Dynamic range module
10 mm thick module containing Al step wedge with 14 steps from 0.0 to 5.2 mm
Geometry distortion module (scales) (03-312)
Pro-DigiMAM Geometry distortion module (scales)
10 mm thick module containing a grid with scales
Geometric distortion module (mesh) (03-308)
Pro-DigiMAM Geometry distortion module (mesh)
10 mm thick module containing a wire mesh of horizontal, vertical and diagonal lines (45°)
ACR Accreditation module (03-319)
Pro-DigiMAM ACR Accreditation module
14 mm thick module containing a wax insert as in Pro-MAM Accreditation (when used with 3×10 mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition).
Full Field ACR Accreditation module (03-317)
Pro-DigiMAM Full FIeld ACR Accreditation module
14 mm thick module containing a wax insert as in Pro-MAM Accreditation FF (when used with 3×10 mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition).
Noise evaluation module (03-315)
Pro-DigiMAM Noise evaluation module
2 mm thick aluminium plate 200 x 200 mm
Spacers sets (03-314)
Pro-DigiMAM Spacers sets
180 x 15 mm or 240 x 15 mm PMMA plates:
4 pieces 10 mm thick,
2 pieces 8 mm thick,
2 pieces 5 mm thick,
2 pieces 2 mm thick
Compensation module (03-316)
Pro-DigiMAM Compensation module
set of 10 PMMA plates 40 x 20 x 2 mm
Tomosynthesis dedicated modules
NPS attenuator
Pro-DigiMAM NPS attenuator
2 mm thick high purity aluminium filter
MTF module
Pro-DigiMAM AMTF module
10 mm thick module containing a stainless steel square (50 x 50 mm) with straight edges accurate to ±2 μm rotated 3°
Z-resolution module
Pro-DigiMAM Z-resolution module
5 mm thick module containing 25 aluminium spheres 1 mm in diameter arranged in an array with 55 mm cell
Wire MTF module
Pro-DigiMAM Wire MTF module
15 mm module containing 25 μm tungsten wire at a 3° angle 60 mm from the chest wall
Protective steel plate
Pro-DigiMAM Proactive steel plate
2 mm stainless steel plate 240 x 300 mm covering the whole image receptor
Spacers set
Pro-DigiMAM Spacers set
Two 240 x 20 x 30 mm spacers for appropriate positioning of test modules
Features
Product features:
complies with:
– IEC 61223-3-2
– ”European Guidelines for Quality Assurance in Mammography Screening” plus supplement
– Protocolfor the Quality Control of the Physical and Technical Aspects of Digital BreastTomosynthesis Systems – EUREF
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Main module (03-303)
Pro-DigiMAM Main module
Set of PMMA attenuation plates: 6x 10 mm thick and 2x 5 mm thick; one plate contains marking of the reference point.
CNR module (03-311)
Pro-DigiMAM CNR module
10 mm thick module containing a 20 x 20 x 0.2 mm aluminium filter, located 6 cm from the chest side
Contrast detail module (03-309)
Pro-DigiMAM Contrast detail module
20 mm thick module containing gold (99.99%) discs organized in a 7×14 matrix (diameter x thickness).
Discs have the following diameters: 0.1, 0.25, 0.5, 0.75, 1.0, 1.5, 2.0 mm and 14 thicknesses ranging from 0.03 to 2.0 μm.
Thickness accuracy: 1 nm (0.001 μm), diameter accuracy 0.001 mm (1 μm).
Ghosting module (03-304)
Pro-DigiMAM Ghosting module
10 mm thick module containing a 30 x 30 x 0.1 mm aluminium filter for a ghost test
Resolution and geometry module (03-310)
Pro-DigiMAM Resolution and geometry module
10 mm thick module containing:
pattern for the line pair resolution evaluation (from 1,5 to 20,0 LP/mm) rotated 45°
8 low contrast objects (ø5.5 mm and depth from 0.1 mm to 0.45 mm)
3 objects of a different absorption level
pattern for evaluation of the effective radiation field
MTF module (03-305)
Pro-DigiMAM MTF module
10 mm thick module containing a straight stainless steel edge accurate to ±2 μm at a 3° angle
Artefacts evaluation module (03-307)
Pro-DigiMAM Artefact evaluation module
10 mm thick module containing a mesh for artefacts evaluation
Filaments module (03-306)
Pro-DigiMAM Filaments module
10 mm thick module containing 6 groups of multi-directional filaments 0.40 mm to 0.20 mm in diameter
Dynamic range module (03-320)
Pro-DigiMAM Dynamic range module
10 mm thick module containing Al step wedge with 14 steps from 0.0 to 5.2 mm
Geometry distortion module (scales) (03-312)
Pro-DigiMAM Geometry distortion module (scales)
10 mm thick module containing a grid with scales
Geometric distortion module (mesh) (03-308)
Pro-DigiMAM Geometry distortion module (mesh)
10 mm thick module containing a wire mesh of horizontal, vertical and diagonal lines (45°)
ACR Accreditation module (03-319)
Pro-DigiMAM ACR Accreditation module
14 mm thick module containing a wax insert as in Pro-MAM Accreditation (when used with 3×10 mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition).
Full Field ACR Accreditation module (03-317)
Pro-DigiMAM Full FIeld ACR Accreditation module
14 mm thick module containing a wax insert as in Pro-MAM Accreditation FF (when used with 3×10 mm plates from main module simulates 42 mm compressed breast of average glandular/adipose composition).
Noise evaluation module (03-315)
Pro-DigiMAM Noise evaluation module
2 mm thick aluminium plate 200 x 200 mm
Spacers sets (03-314)
Pro-DigiMAM Spacers sets
180 x 15 mm or 240 x 15 mm PMMA plates:
4 pieces 10 mm thick,
2 pieces 8 mm thick,
2 pieces 5 mm thick,
2 pieces 2 mm thick
Compensation module (03-316)
Pro-DigiMAM Compensation module
set of 10 PMMA plates 40 x 20 x 2 mm
Tomosynthesis dedicated modules
NPS attenuator
Pro-DigiMAM NPS attenuator
2 mm thick high purity aluminium filter
MTF module
Pro-DigiMAM AMTF module
10 mm thick module containing a stainless steel square (50 x 50 mm) with straight edges accurate to ±2 μm rotated 3°
Z-resolution module
Pro-DigiMAM Z-resolution module
5 mm thick module containing 25 aluminium spheres 1 mm in diameter arranged in an array with 55 mm cell
Wire MTF module
Pro-DigiMAM Wire MTF module
15 mm module containing 25 μm tungsten wire at a 3° angle 60 mm from the chest wall
Protective steel plate
Pro-DigiMAM Proactive steel plate
2 mm stainless steel plate 240 x 300 mm covering the whole image receptor
Spacers set
Pro-DigiMAM Spacers set
Two 240 x 20 x 30 mm spacers for appropriate positioning of test modules
