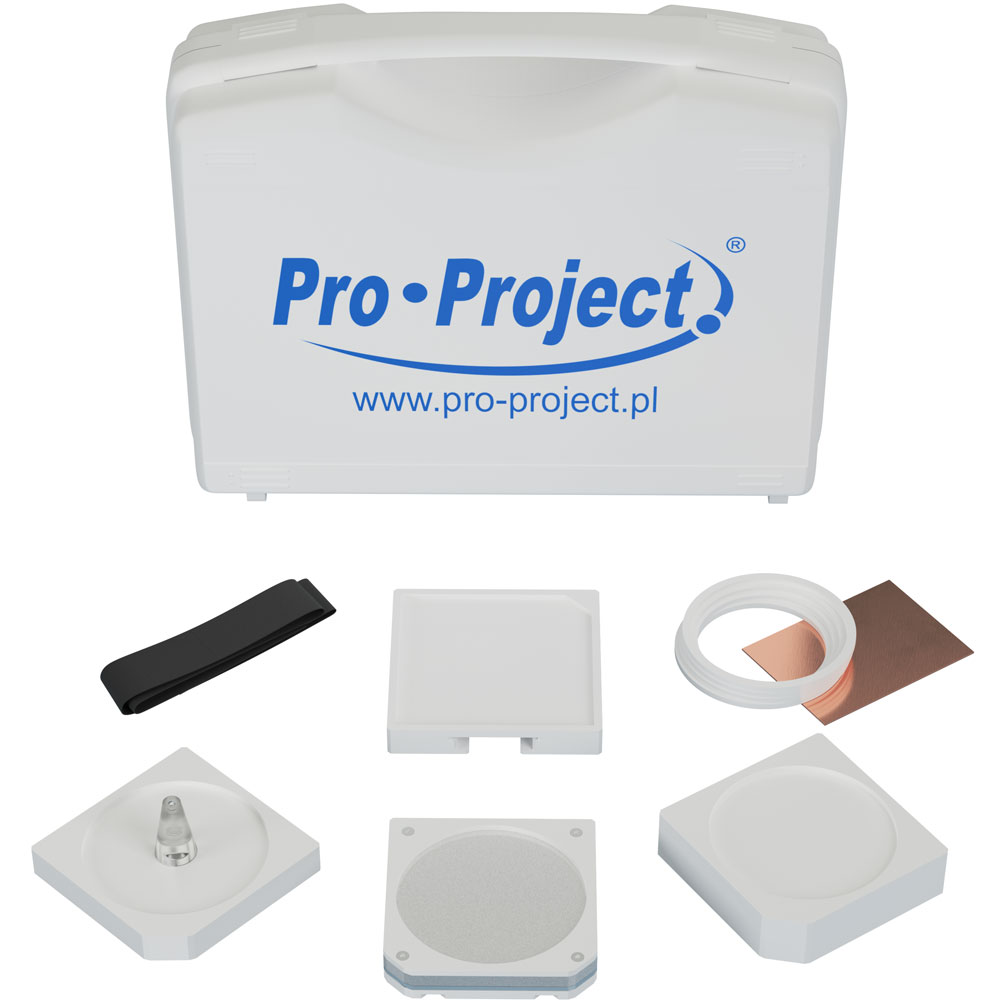

Pro-Dent Set – Constancy and Acceptance Testing Kit

The Pro-Dent set is a universal set of phantoms for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic and cephalometric).

Product features: complies with: РOEC 61223-2-7 and IEC 61223-3-4 РDIN 6868-5 and DIN V 6868-151 РÖNORM S 5240-5 and ÖNORM S 5240-11 CE certified the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical data (can be modified to customer specifications) Pro-Dent Alpha phantom 3 step wedge (first step made of copper foil 0.3 mm thick, the next ones are made of polytetrafluoroethylene 8 mm and 16 mm thick) cover made of PMMA Pro-Dent Beta phantom (optional) cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5° pattern for beam radius estimation cover made of PMMA ‍Pro-Dent Gamma phantom pattern for line pair resolution evaluation (from 4 to 8 LP/mm) optional second pattern for line pair resolution evaluation (from 1.6 to 3 LP/mm) OPG units four holes in 0.5 mm Al foil for low contrast resolution tests additional 6 mm aluminium filter cover made of PMMA
