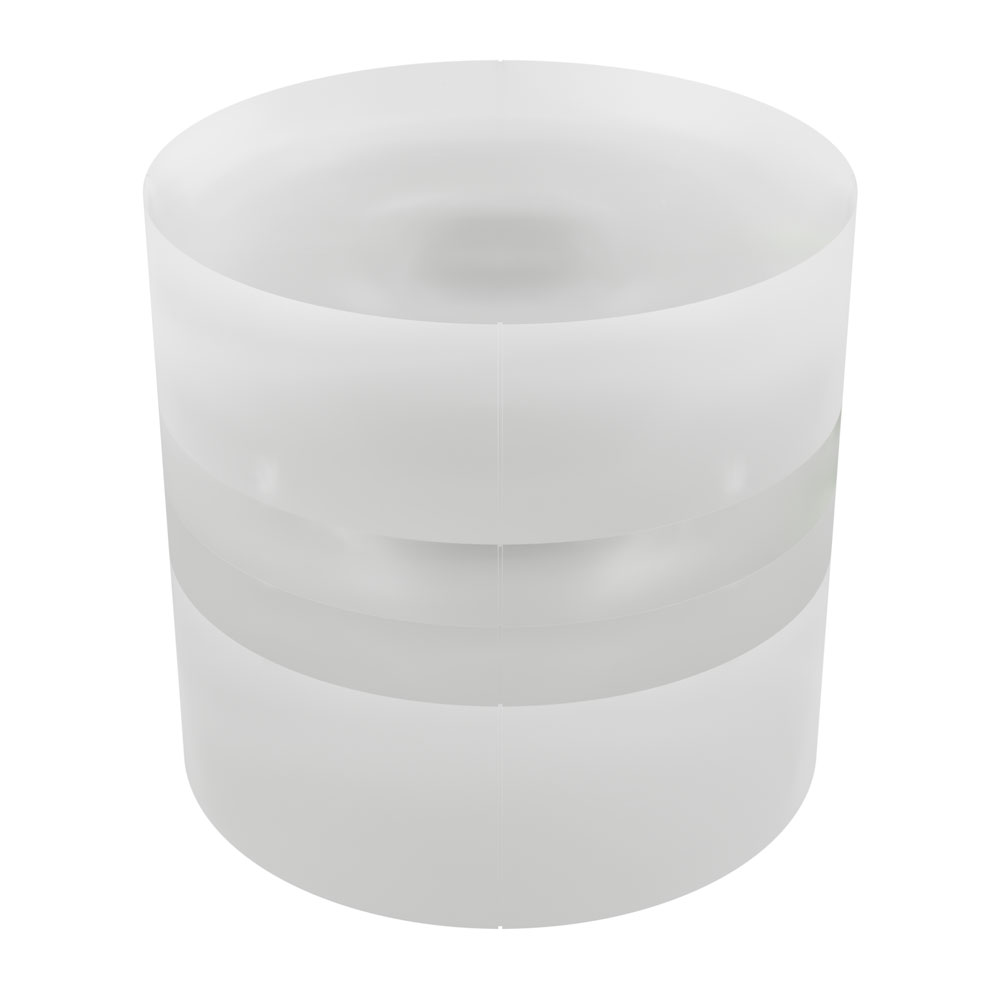

Phantom for acceptance and constancy testing of 3D function of dental Cone-Beam CT, Dental Volume Tomography (DVT) and 3D imaging devices according to DIN 6868-161 and QS-RL.
Product features: complies with: Radiation Protection no 172 report by the SEDENTEXCT IEC 61223-3-4 and IEC 61223-3-5 CE certified the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications): diameter: 160 mm 20 mm thick main module containing: test object containing equivalents of air, soft tissue and bone positioning markers bubble level 20 mm, 50 mm and 60 mm thick PMMA modules with positioning aids test stand with a table for placing the phantom in the test position convenient, portable case for storing and transporting the phantom
Features
Product features: complies with: Radiation Protection no 172 report by the SEDENTEXCT IEC 61223-3-4 and IEC 61223-3-5 CE certified the manual provides detailed guidelines for carrying out each test, results assessment and registration
Specifications
Technical data (can be modified to customer specifications): diameter: 160 mm 20 mm thick main module containing: test object containing equivalents of air, soft tissue and bone positioning markers bubble level 20 mm, 50 mm and 60 mm thick PMMA modules with positioning aids test stand with a table for placing the phantom in the test position convenient, portable case for storing and transporting the phantom
