A compact CT phantom designed for small-animal imaging with full clinical-grade QA functionality.

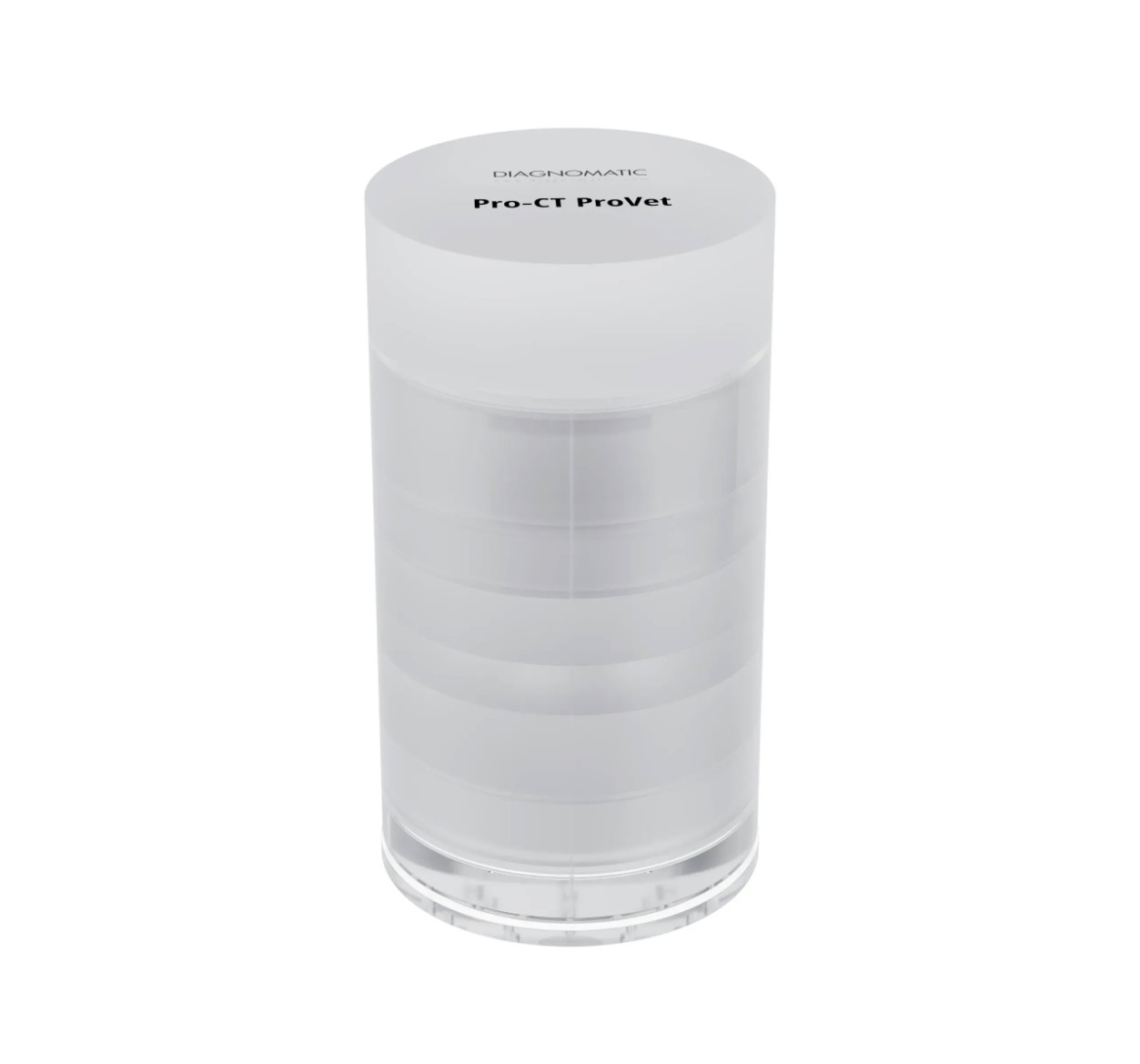

The Pro-CT ProVet is a high-precision CT phantom created for small-diameter fields of view. With its 110 mm diameter and 200 mm length, it brings the performance of full-size clinical QA tools into a format tailored to small animals and compact CT systems. Based on the proven designs of our Pro-CT mk II and Pro-Dent CT MINI, this phantom ensures accurate, repeatable and comprehensive image quality assessment in veterinary environments.
Built from durable PMMA and equipped with a complete set of specialized test modules, the Pro-CT ProVet enables detailed analysis of CT number accuracy, spatial resolution, contrast performance, uniformity, geometry and system stability.
Why Pro-CT ProVet is the right choice
- Designed specifically for veterinary and small-animal CT, where standard phantoms are too large
- Provides a complete set of essential QA measurements in one compact device
- Ensures repeatable and reliable test conditions, even in limited FOV environments
- Supports consistent image quality for confident diagnostics
- Built from durable PMMA for long-term stability and performance
- Helps reduce QA time while improving workflow efficiency
Technical Data
Modules
Geometry module
- A screw-cap section containing a uniform matrix of holes sized 2.0 mm by 3.0 mm, arranged at 10 mm intervals.
Self-fillable water module
- A dedicated cavity for water filling used for assessing HU stability and uniformity.
Low-contrast module
- A set of rods with diameters 2, 3, 4, 6, 8, 10 and 12 mm, each differing by 3 percent in density relative to the background.
Sensitometry module
Material inserts made of:
- PTFE
- POM-C
- LDPE
- AIR
- H2O resin
High-contrast and spatial resolution module
- Resolution patterns covering a range from 12 to 30 LP/cm.
LSF and PSF module
- Two 0.2 mm tungsten carbide beads for MTF and SSP evaluation
- PTFE and PMMA interface for LSF
- 0.025 mm tungsten wire in air for PSF
Geometry ramps module
- A pair of 0.025 mm tungsten wire ramps in air.
Homogeneous PMMA module
- A 40 mm thick PMMA section used for evaluating uniformity and noise.
