Pro-CT Mini
The Pro-CT MINI phantom is a compact CT image quality testing solution. When connected with Pro-CT Dose it may be used for carrying out acceptance and constancy tests of computed tomography systems according to IEC 61223-3-5 and the AAPM (American Association of Physicists in Medicine) guidelines.
| Brand | |
|---|---|
| Model | Pro-CT MINI |
| Code | PRO04-403 |
The Pro-CT MINI phantom is a compact CT image quality testing solution. When connected with Pro-CT Dose it may be used for carrying out acceptance and constancy tests of computed tomography systems according to IEC 61223-3-5 and the AAPM (American Association of Physicists in Medicine) guidelines. This phantom consists of a module 16 cm in diameter with positioning aids and recesses for test modules.
When used Pro-CT Dose the phantom can be used to do the following tests:
geometric distortion
CT number (HU) measurement
noise / uniformity
artefacts
MTF
spatial resolution
contrast resolution
low contrast resolution
slice profile
alignment
linearity
beamwidth
Product features:
complies with:
– IEC 61223-3-5
– IEC 61223-2-6
– AAPM guidelines
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration
Technical data (can be modified to customer specifications):
main module:
– diameter: 160 mm
– thickness: 30 mm
– 9 recesses for test inserts allow customized placement of test objects in space
– markings for easy and accurate positioning in the CT scanner
– set of holes on a given depth for testing geometry, distortions and slice position

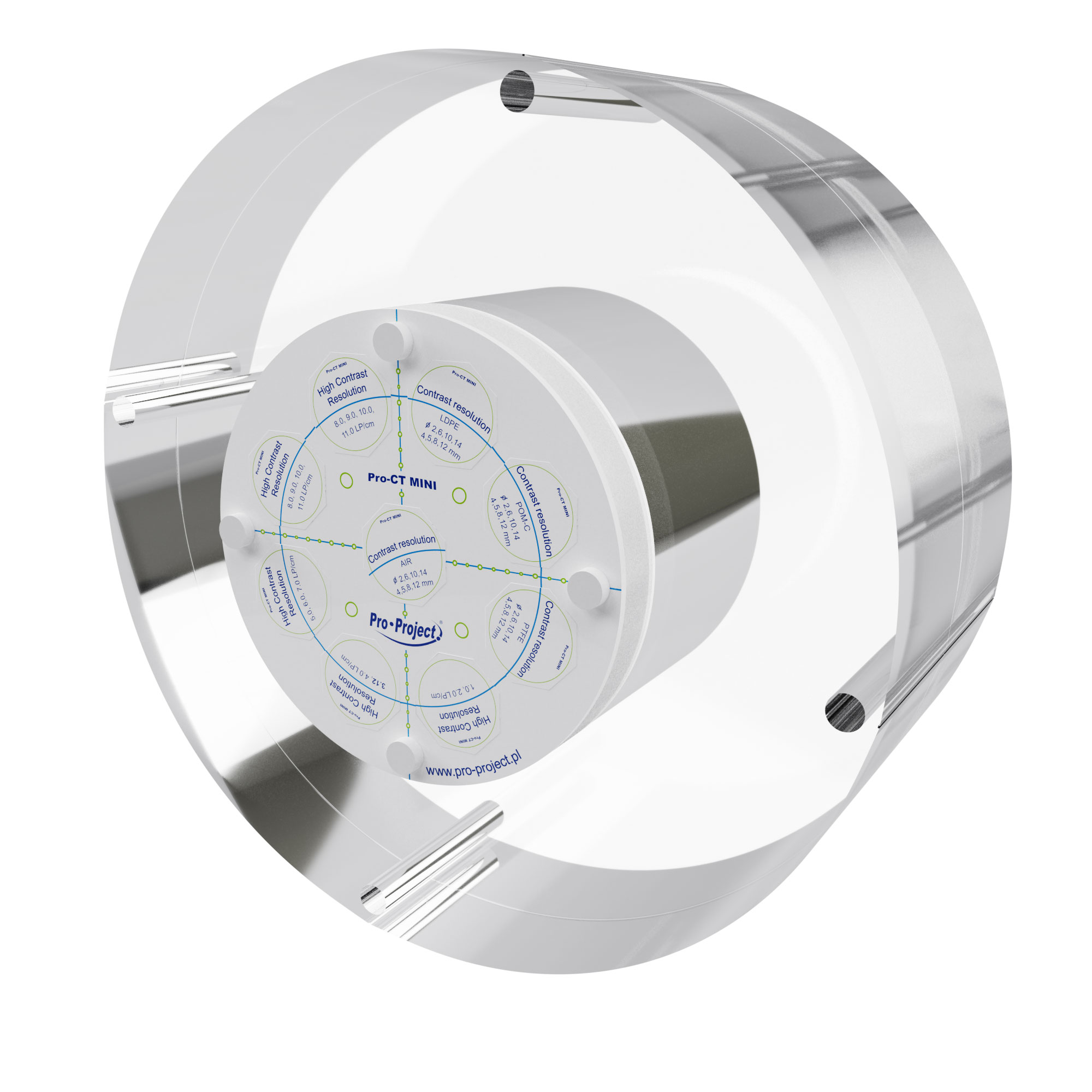

– screws and extra plugs for mounting the module on any Pro-CT Dose Phantom (04-319)

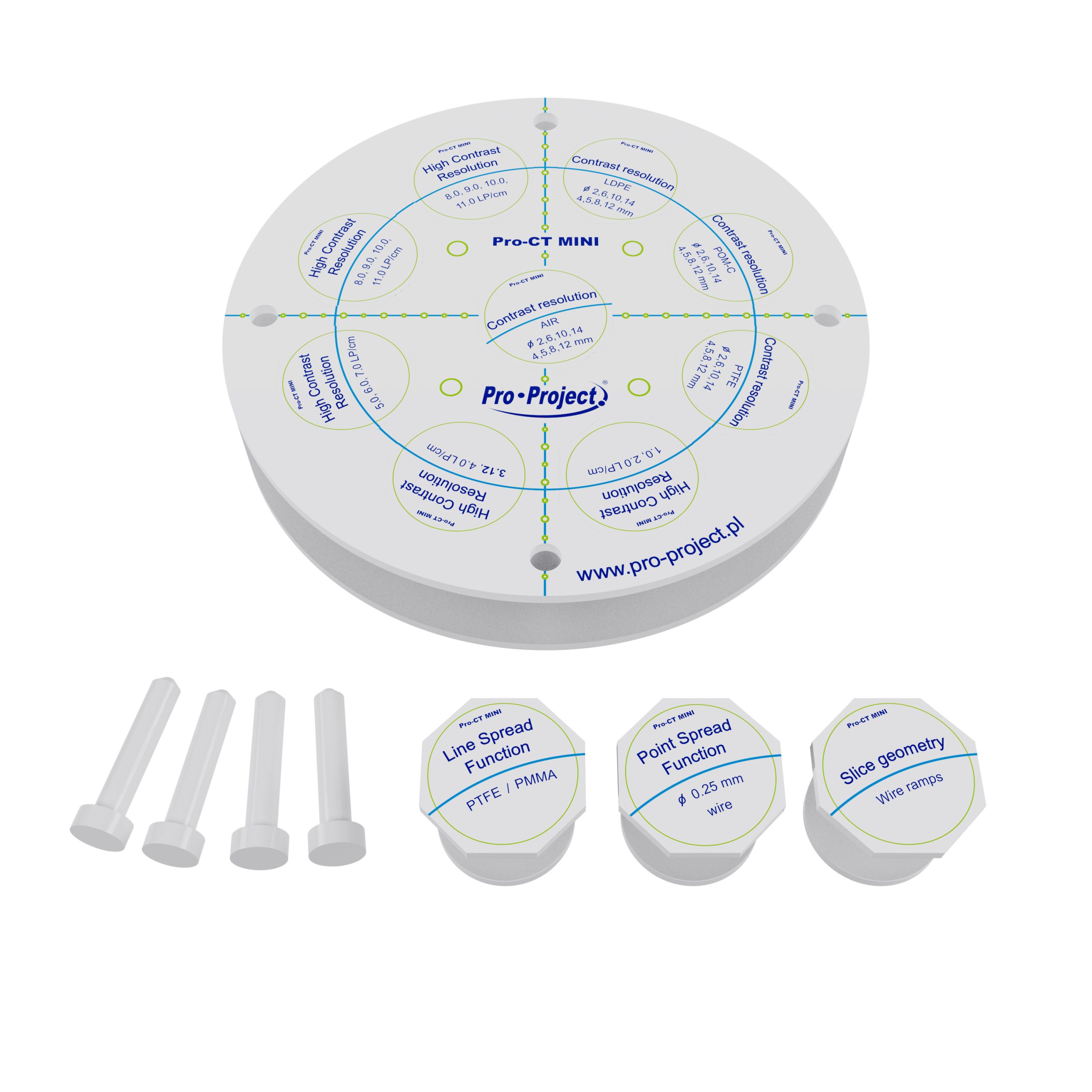

standard test inserts:
– 5 contrast resolution inserts containing rods made from different materials: LDPE, PTFE, POM-C, air, plastic water equivalent. Diame ters of rods in each insert are: 2, 4, 6, 8, 10, 12, 14 mm
– high contrast resolution inserts containing 11 aluminium test elements for spatial resolution evaluation from 1 to 11 LP/cm
– 2 geometry modules containing two pairs of aluminium wire ramps whose slope angle tangent is equal to 0.5
– Linear Spread Function (LSF) insert – PTFE / PMMA interface
– Point Spread Function (PSF) insert – 0.25 mm tungsten steel wire in air
optional inserts (04-404):
– 3 low contrast inserts containing rods with a diameter: 2, 4, 5, 6, 8, 10, 12, 14 mm. The contrast difference between the rods and the surrounding material are 0.3, 0.6 and 1%
– 3 high contrast resolution inserts containing 19 aluminium test elements for spatial resolution evaluation from 12 to 30 LP/cm
carrying case
