Pro-CT Dose – Nested CTDI Phantom

Set of homogenous cylinders designed to image paediatric and adult head and body. Used for CTDI measurement and to separate dose information for each. When performing dose profile measurements, dose phantoms allow collecting information for the maximum, minimum and mid-range value of the nominal tomographic section thickness.

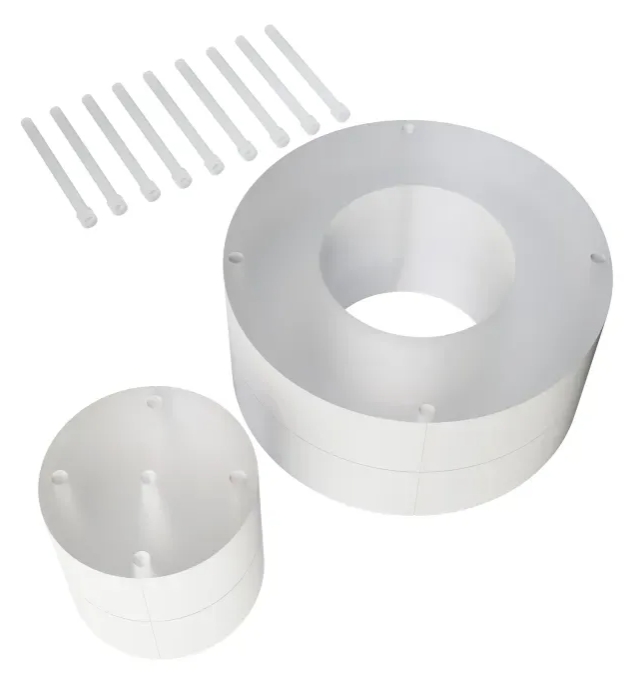

PRO04-203 – Pro-CT Dose Head and Body nested set – L and M phantoms with 9 plugs and a case with a trolley (matte finish)

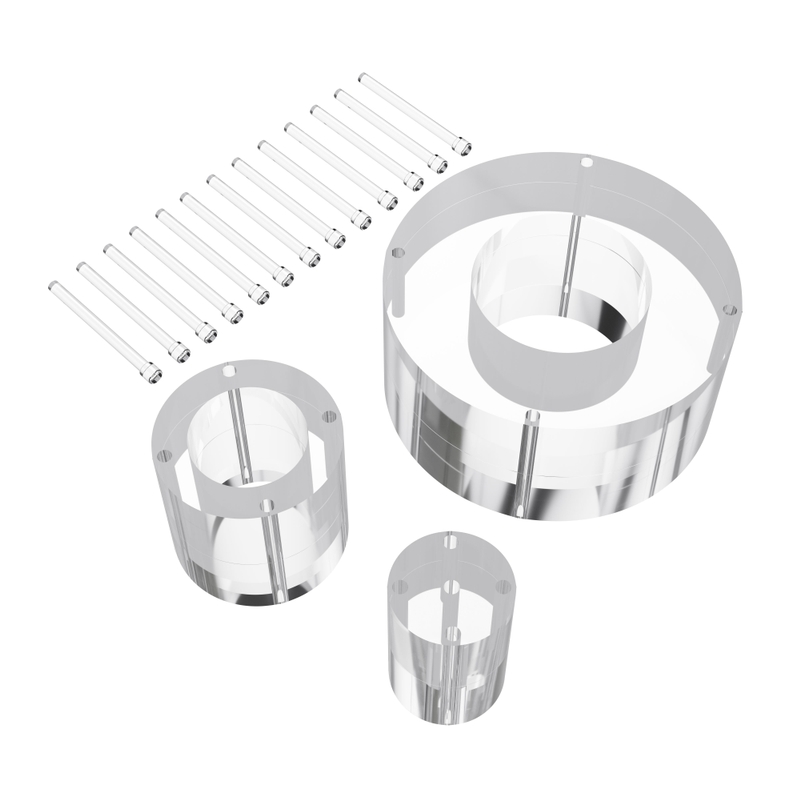

PRO04-204 – Pro-CT Dose Adult and Paediatric nested set – L, M and S phantoms with 13 plugs and a case with a trolley (matte finish)

Product features:
complies with:
– IEC 61223-3-5
– IEC 61223-2-6
– 21CFR 1020.33 specifications
CE certified
the manual provides detailed guidelines for carrying out each test, results assessment and registration

Technical data (can be modified to customer specifications):

Pro-CT Dose L (adult body) – 150 mm thick homogenous PMMA cylinder, diameter: 320 mm, with five Ø13.1 mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10 mm from the edge)

Pro-CT Dose M (adult head / paediatric body) – 150 mm thick homogenous cylinder, diameter: 160 mm, with five Ø13.1 mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10 mm from the edge)

Pro-CT Dose S (paediatric head) – 150 mm thick homogenous cylinder, diameter: 100 mm, with five Ø13.1 mm CT probe holes (one in the middle and 4 around the perimeter, 90° apart and 10 mm from the edge)
engraved crosshair markings on phantoms for easier positioning

acrylic rods for plugging all holes in the phantoms

nested versions of the above phantoms are also available, where smaller cylinders can be inserted into larger ones together creating one solid cylinder

carrying case, also with a trolley option
