Pro-CT AEC

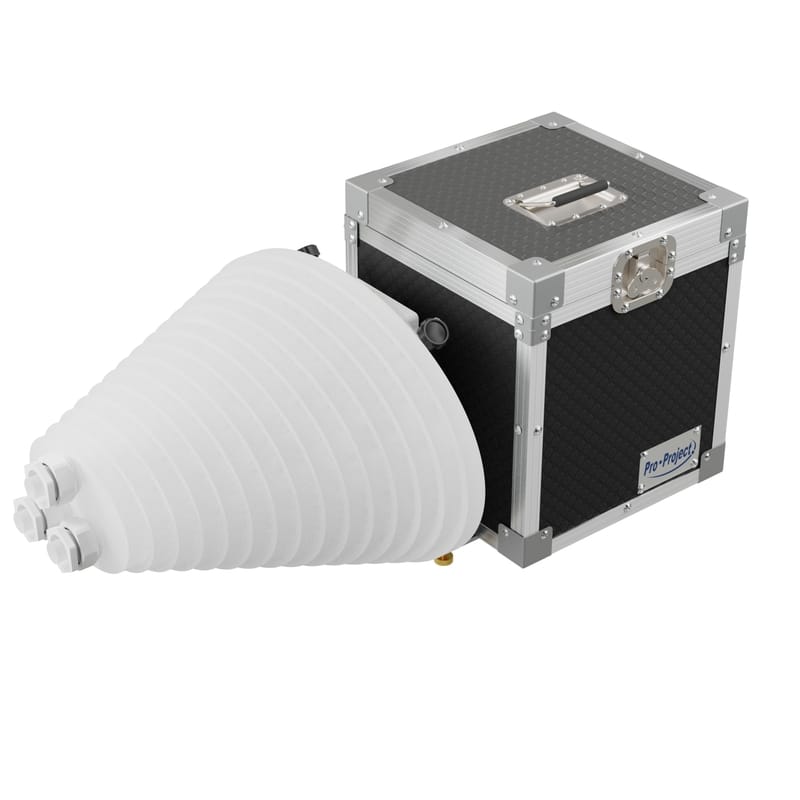

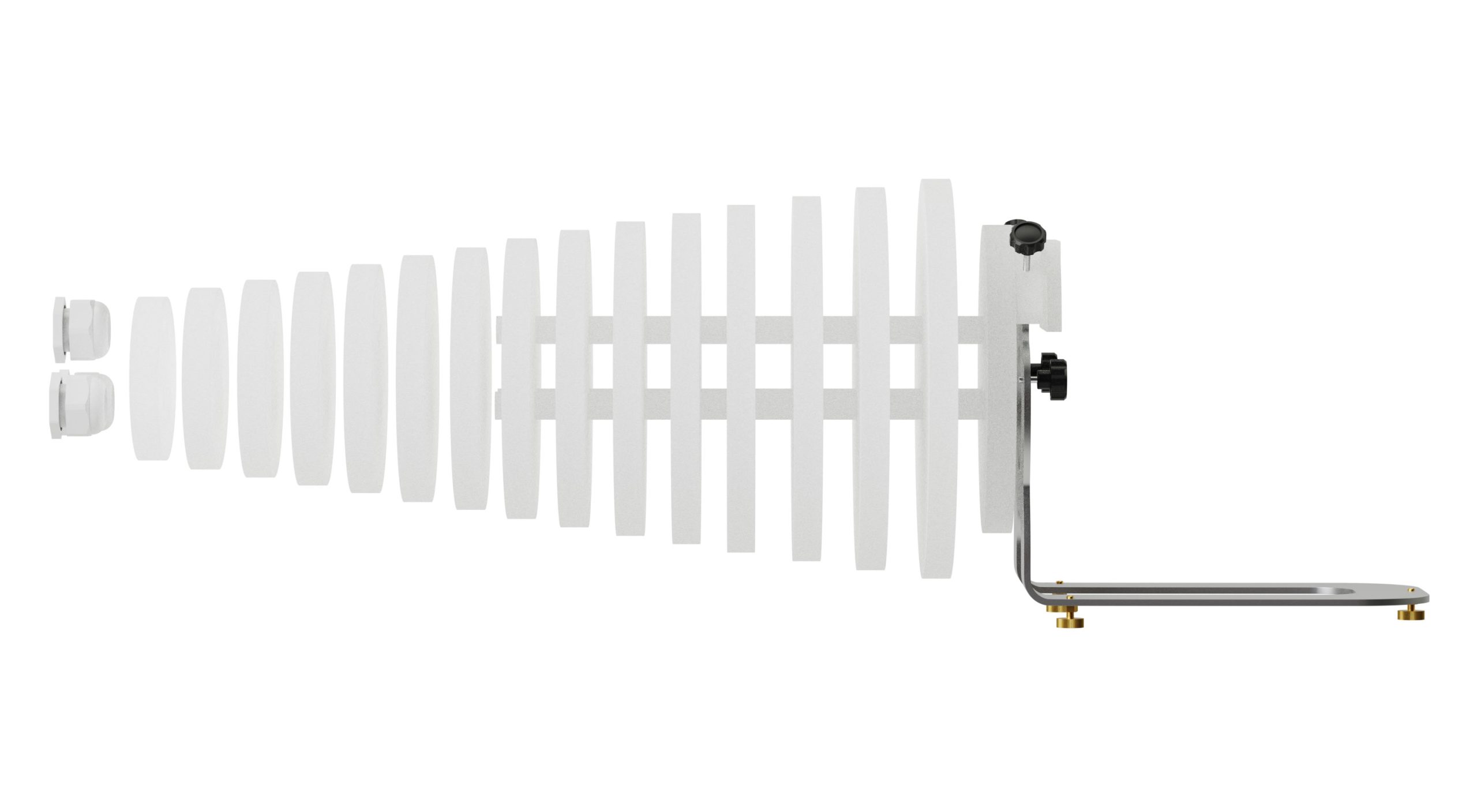

The phantom used for AEC testing on CTs. All mounting and positioning features are the same as in the Pro-CT mk II phantom allowing for off-the-table measurement.

Technical data (can be modified to customer specifications):‍

15 PMMA ellipses 20 mm thick and with different height and width

elliptical cross section with major and minor axes ratio equals to 3:2

ellipse sizes range from 175.5 mm x 117 mm to 428.7 mm x 285.8 mm

positioning stand for on and off table measurements

carrying case

‍

Product features:

complies with:

– IEC 61223-3-5

– IEC 61223-2-6

CE certified

the manual provides detailed guidelines for carrying out each test, results assessment and registration
