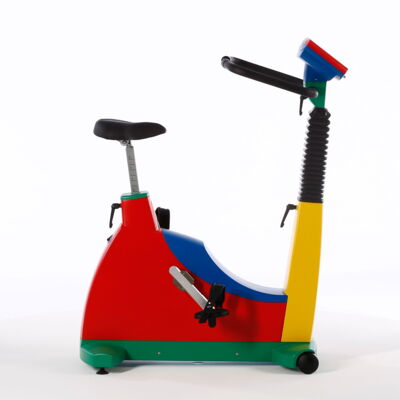

Lode Corival Paediatric
Introducing the Corival Pediatric, an exceptional medical device built upon the worldwide popularity of the Corival ergometer. The colorful design appeals to children and removes the fear of the medical examination. As a result, children are more likely to focus on completing the exercise test. Thanks to the smart design, children of different ages can comfortably access the ergometer and perform their exercise test.
| Brand |
|---|
Child friendly design
The special design of this ergometer makes it easy accessible and approachable for children.
Low start-up load
The Corival CPET, tailored for medical professionals, boasts remarkable specifications and features, making it the most suitable device for comprehensive cardiopulmonary exercise testing. Firstly, its low start-up load of 7 Watt guarantees precise measurements, ensuring accurate evaluations even for patients with limited exercise capacity. This, combined with the eddy current electro-magnetic braking system, provides consistent resistance throughout the test, fostering reliable and reproducible results crucial for diagnosis and treatment planning.
Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.
Rotatable handlebar
The handlebar can be rotated 360 degrees and is constructed in such a way that the test subject can sit comfortably at every seating height. This design makes a height-adjustable handlebar redundant.
Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.
High standards
Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, and ISO 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.
Various test modes
Besides the hyperbolic (rpm-independent) mode that is used most of the time, the standard control unit offers several other test modes, like the fixed torque mode and the linear mode. These modes can be used in both manual and terminal mode. The ergometer can be used in various ergometry settings, enabling a multifunctional deployment.
Workload
workload range fixed torque 0,1 – 70 Nm workload range in fixed torque mode
minimum load 7 W the minimum load the ergometer can provide
maximum peak load 1000 W the maximum load the ergometer can provide for a short period of time
minimum load increments 1 W the smallest steps with which the load can be added
maximum continuous load 750 W the maximum power the ergometer can deliver continuous
hyperbolic workload control control of workload in hyperbolic way
linear workload control control ergometer in a linear way
fixed torque workload control control ergometer in a fixed torque way
maximum rpm independent constant load 150 rpm rpm as to which constant load can be applied
minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
optional heart rate controlled workload control the device optionally through a set heartrate
electromagnetic “eddy current” braking system system that very accurately applies a brake to the ergometer
dynamic calibration continuous calibration during application of workload
power range at maximum rpm (maximum) 1000 W operational power range
Dimensions
screen resolution 800 x 480 pixels screen resolution
product length (cm) 105 cm (41.3 inch) length of product in cm
product width (cm) 58 cm (22.8 inch) width of the product in cm
product height 98 cm (38.6 inch) height of product
product weight 58 kg (127.9 lbs) the weight of the product
Power requirements
V AC 100 – 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord length 250 cm (98.4 inch) length of powercord including plugs
Power cord IEC 60320 C13 with CEE 7/7 plug European power cord and connector standard supplied with product
Power cord NEMA NEMA power cord and connector
Features
Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.
Rotatable handlebar
The handlebar can be rotated 360 degrees and is constructed in such a way that the test subject can sit comfortably at every seating height. This design makes a height-adjustable handlebar redundant.
Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.
High standards
Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, and ISO 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.
Various test modes
Besides the hyperbolic (rpm-independent) mode that is used most of the time, the standard control unit offers several other test modes, like the fixed torque mode and the linear mode. These modes can be used in both manual and terminal mode. The ergometer can be used in various ergometry settings, enabling a multifunctional deployment.
Specifications
Workload
workload range fixed torque 0,1 – 70 Nm workload range in fixed torque mode
minimum load 7 W the minimum load the ergometer can provide
maximum peak load 1000 W the maximum load the ergometer can provide for a short period of time
minimum load increments 1 W the smallest steps with which the load can be added
maximum continuous load 750 W the maximum power the ergometer can deliver continuous
hyperbolic workload control control of workload in hyperbolic way
linear workload control control ergometer in a linear way
fixed torque workload control control ergometer in a fixed torque way
maximum rpm independent constant load 150 rpm rpm as to which constant load can be applied
minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
optional heart rate controlled workload control the device optionally through a set heartrate
electromagnetic “eddy current” braking system system that very accurately applies a brake to the ergometer
dynamic calibration continuous calibration during application of workload
power range at maximum rpm (maximum) 1000 W operational power range
Measurements
Dimensions
screen resolution 800 x 480 pixels screen resolution
product length (cm) 105 cm (41.3 inch) length of product in cm
product width (cm) 58 cm (22.8 inch) width of the product in cm
product height 98 cm (38.6 inch) height of product
product weight 58 kg (127.9 lbs) the weight of the product
Requirements
Power requirements
V AC 100 – 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord length 250 cm (98.4 inch) length of powercord including plugs
Power cord IEC 60320 C13 with CEE 7/7 plug European power cord and connector standard supplied with product
Power cord NEMA NEMA power cord and connector
