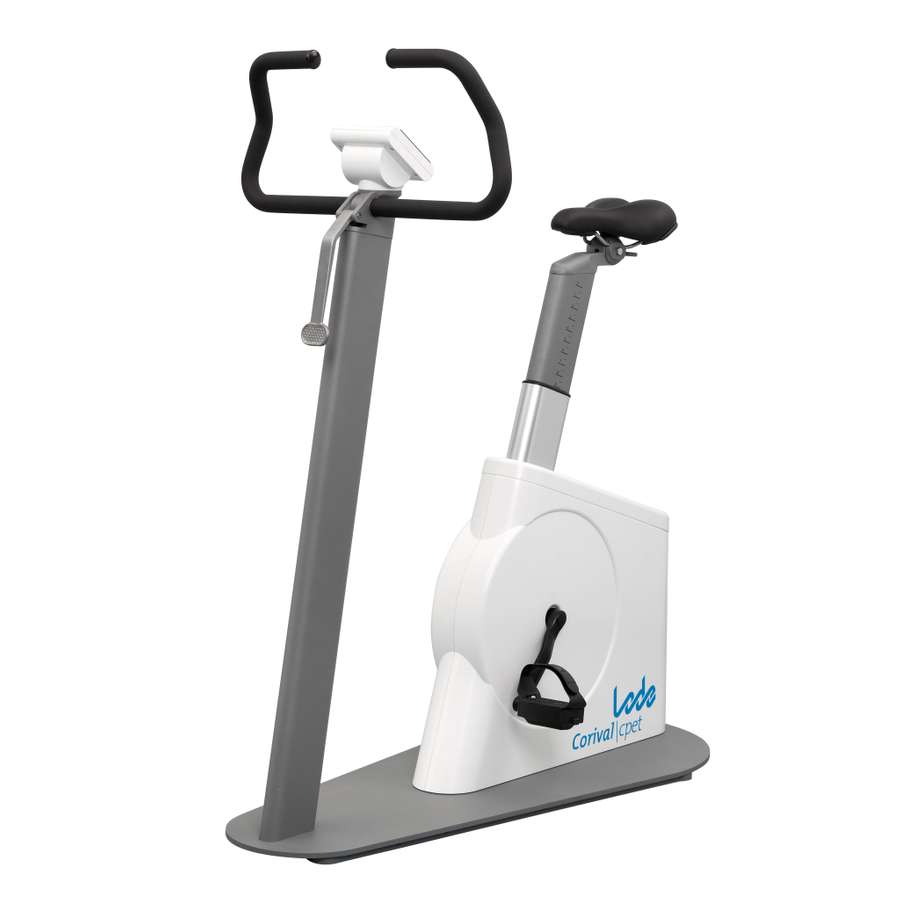

Lode Corival CPET Upright Ergometer

Discover Corival CPET: Lode’s cutting-edge ergometer designed exclusively for medical professionals and their patients. With a low start-up load of 7 Watt, it enables precise measurements for with limited exercise capacity. The Corival CPET seamlessly integrates with stress ECG and pulmonary devices. Its eddy current electro-magnetic braking ensures accurate results, while the adjustable workload from 7 to 1000 Watt accommodates diverse patients. The Corival CPET is designed with ultralow step-through, ensuring easy access and patient comfort. Enhance your practice by conducting advanced cardiopulmonary exercise testing with the Corival CPET, combining precision and innovation.

Low start-up load
The Corival CPET, tailored for medical professionals, boasts remarkable specifications and features, making it the most suitable device for comprehensive cardiopulmonary exercise testing. Firstly, its low start-up load of 7 Watt guarantees precise measurements, ensuring accurate evaluations even for patients with limited exercise capacity. This, combined with the eddy current electro-magnetic braking system, provides consistent load throughout the test, fostering reliable and reproducible results crucial for diagnosis and treatment planning.

Numerous connectivity options
Moreover, the Corival CPET’s communication module effortlessly integrates with stress ECG and pulmonary devices, streamlining data collection and enhancing diagnostic capabilities. The 3.5″ color display enables tracing of workload, rpm, and time, empowering professionals to make well-informed decisions during each assessment. Transitioning seamlessly from one patient to another is made possible by the ergometer’s adjustable workload, ranging from 7 to 1000 Watt, catering to diverse individuals varying in fitness levels.

High comfort
The Corival CPET takes patient comfort to heart with its ultralow step-through design, allowing easy access and promoting a pleasant testing experience. Its ergonomic excellence reduces strain on both patients and healthcare providers, fostering an environment conducive to accurate and comfortable assessments. Additionally, the device operates with minimal noise, ensuring a tranquil atmosphere for focused testing and patient relaxation.

Reliable and reproducible stress tests
The experience of professionals who calibrate many ergometers showed that the Lode ergometers are the most reliable across the complete workload and rpm range and still within specifications even after many years of intensive use.

Various test modes
Besides the hyperbolic (rpm-independent) mode that is used most of the time, the standard control unit offers several other test modes, like the fixed torque mode and the linear mode.These modes can be used in both manual and terminal mode.

High standards
Lode is a socially and environmentally responsible company. All Lode products are RoHS/WEE compliant and Lode is ISO 9001:2015, and ISO 13485:2016 certified. All medical products comply to MDD 93/42/EEC, incl. IEC 60601-1.

Q-factor equal to road-bike
The Q-factor of the ergometer is equal to the Q-factor of road bikes, creating perfect training circumstances.

Rotatable handlebar with new lever
The new designed lever makes it even easier to adjust the handlebar. The handlebar can be rotated 360 degrees and is constructed in such a way that the test subject can be installed comfortably at every seating height.

Workload
Torque range 1-70 Nm Torque range for rpm independent workload control
minimum load 7 W the minimum load the ergometer can provide
maximum peak load 1000 W the maximum load the ergometer can provide for a short period of time
minimum load increments 1 W the smallest steps with which the load can be added
maximum continuous load 750 W the maximum power the ergometer can deliver continuous
hyperbolic workload control control of workload in hyperbolic way
maximum rpm independent constant load 150 rpm rpm as to which constant load can be applied
minimum rpm independent constant load 30 rpm rpm as from which constant load can be applied
optional heart rate controlled workload control the device optionally through a set heartrate
electromagnetic “eddy current” braking system system that very accurately applies a brake to the ergometer
dynamic calibration continuous calibration during application of workload
power range at maximum rpm (maximum) 1000 W operational power range

Dimensions
Screen resolution 320 x 240 pixels Screen resolution
product length (cm) 105 cm (41.3 inch) length of product in cm
product width (cm) 58 cm (22.8 inch) width of the product in cm
product height 114 cm (44.9 inch) height of product
product weight 65 kg (143.3 lbs) the weight of the product
Flywheel weight 2730 gr Weight of the flywheel

Power requirements
V AC 100 – 240 V voltage in Volt
Phases 1 phases
Frequency 50/60 Hz frequency in Herz
Power consumption 160 W power consumption in Watt
Power cord length 250 cm (98.4 inch) length of powercord including plugs
Power cord IEC 60320 C13 with CEE 7/7 plug European power cord and connector standard supplied with product
Power cord NEMA NEMA power cord and connector
