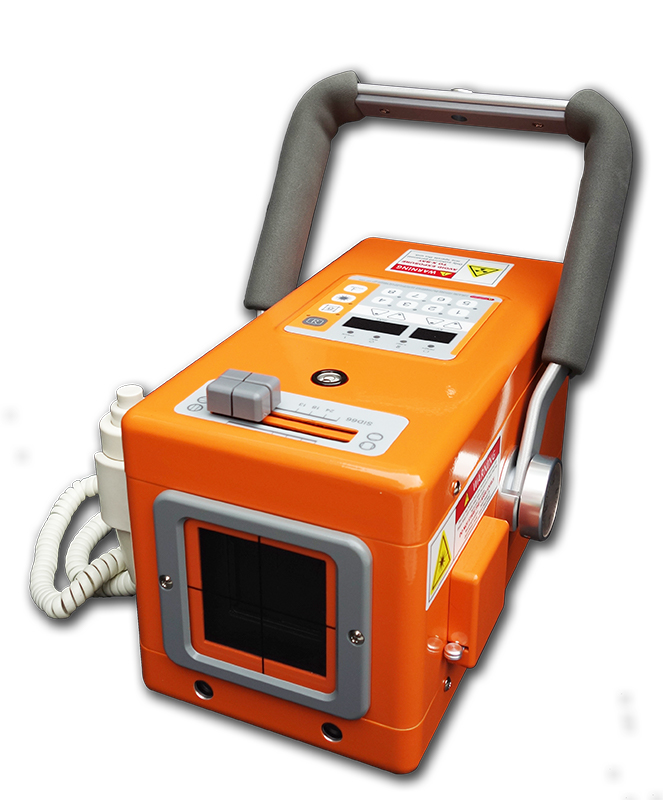

ECORAY ORANGE 1060 HF VET Portable Vet X-Ray
Orange 1060HF portable x-ray is a high powered mobile X-Ray applicable to veterinary purposes at only 13.5kg, the 1060HF is ideal for equine and other veterinary X-Ray needs.
Brand | |
---|---|
Model | ORANGE |
Code | ECOORANGE1060HF |
Part Number | 1060HF |
ECORAY’s high frequency inverter technology is heading to more valuable, durable and powerful to produce the high quality of images with every imaging solution. With an increased output suitable for all veterinary and equine applications.
- The Best Selection for Veterinary.
- Upgraded power with an innovative concept
- Powerful capability (3.2kW, 100kV/60mA output)
- Small enough + Strong enough
- Outstanding high quality imaging
- Ergonomic and soft OP panel layout
- Powerful output (100kV / 60mA max.) from cmpact size-simliar with 1040HF
- Suitable for your small animal examinations and Equine extremity imaging
- Convenient handling for advanced image quality
Features
Key Features
- Powerful & Stable output with unique features for user convenience
- Portable X-ray generators for veterinary purposes
- Compact size but powerful output 100kV/40mA
- Outstanding & Stable imaging capability
- Ergonomic & Soft OP panel layout
- Easy access to DR systems with FPD
- Convenient handling for advanced image quality
Operation Switch
- kV & mAs Up/Down
- Built in dual laser & Collimator lamp ON/OFF
- Reversible Display
- APR memory storage
Specifications
- Generator Type: Monobloc design, High Frequency Inverter
- HV Generator: 3.2kW (80kv@40mA)
- Max kV / mA: 100kV / 60mA
- 40 – 100kV in 1kV Steps
- X-Ray Tube Focal Spot: 2.0mm x 2.0mm
- 0.32 – 100 mAs (26 Steps)
- mA Available: 25, 30, 35, 40, 50, 60mA
- SID measurement: Tape & Laser Pointer
- Memory: 8 APR (Extendible to 16)
- 13.5 kg
- Power requirements: 3.2kVa, 230VAC, 10A, 50Hz
- Size: 344x191x210mm
- 2 Year Warranty
- In the box: Aluminum Carry Case, Spare Globe, Spare Fuse
Specifications subject to change without notice
