TO AEC - Leeds Test Objects

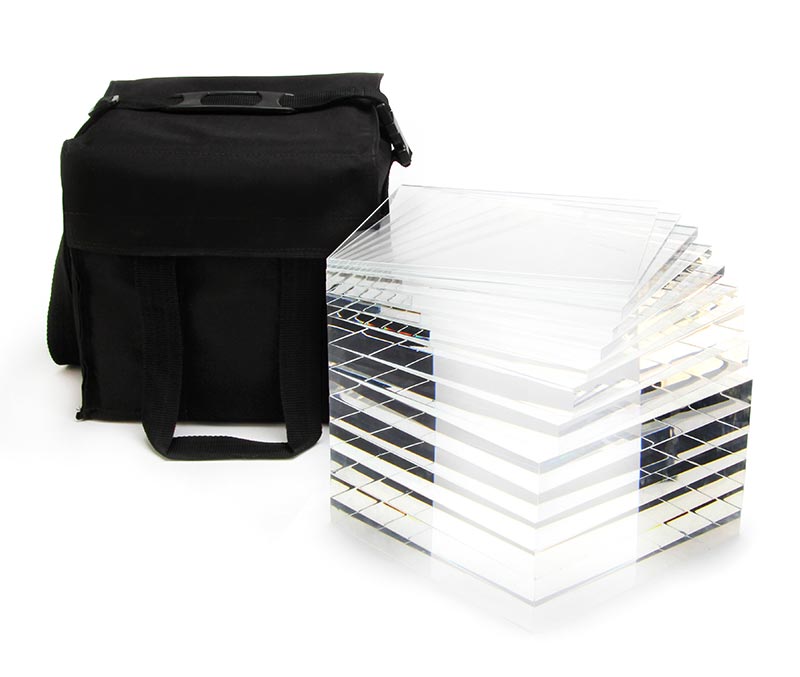

Leeds Test Objects′ TO AEC is an x-ray quality assurance phantom comprising a stack of PMMA plates which allow the user to check the consistency, repeatability and reproducibility of AEC system function. Polymethylmethacrylate (PMMA) plates with a dimensional tolerance of nominal ±10%.

The dimensions of the plates are as follows:
  • 8 pieces – 25x250x250mm PMMA
  • 4 pieces – 10x250x250mm PMMA
  • 2 pieces – 5x250x250mm PMMA
  • TO AEC is suppled in a protective carry bag.

Conforms to standards:
IPEM Report 34 part IV
IPEM Report 91
